Bosch 1618598123

Bosch 1618598123 bit holder: exploded parts diagram, 1 sheet, 23 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 1618598123: 23 positions on 1 sheet

Bosch 1618598123 parts list (1 sheet)

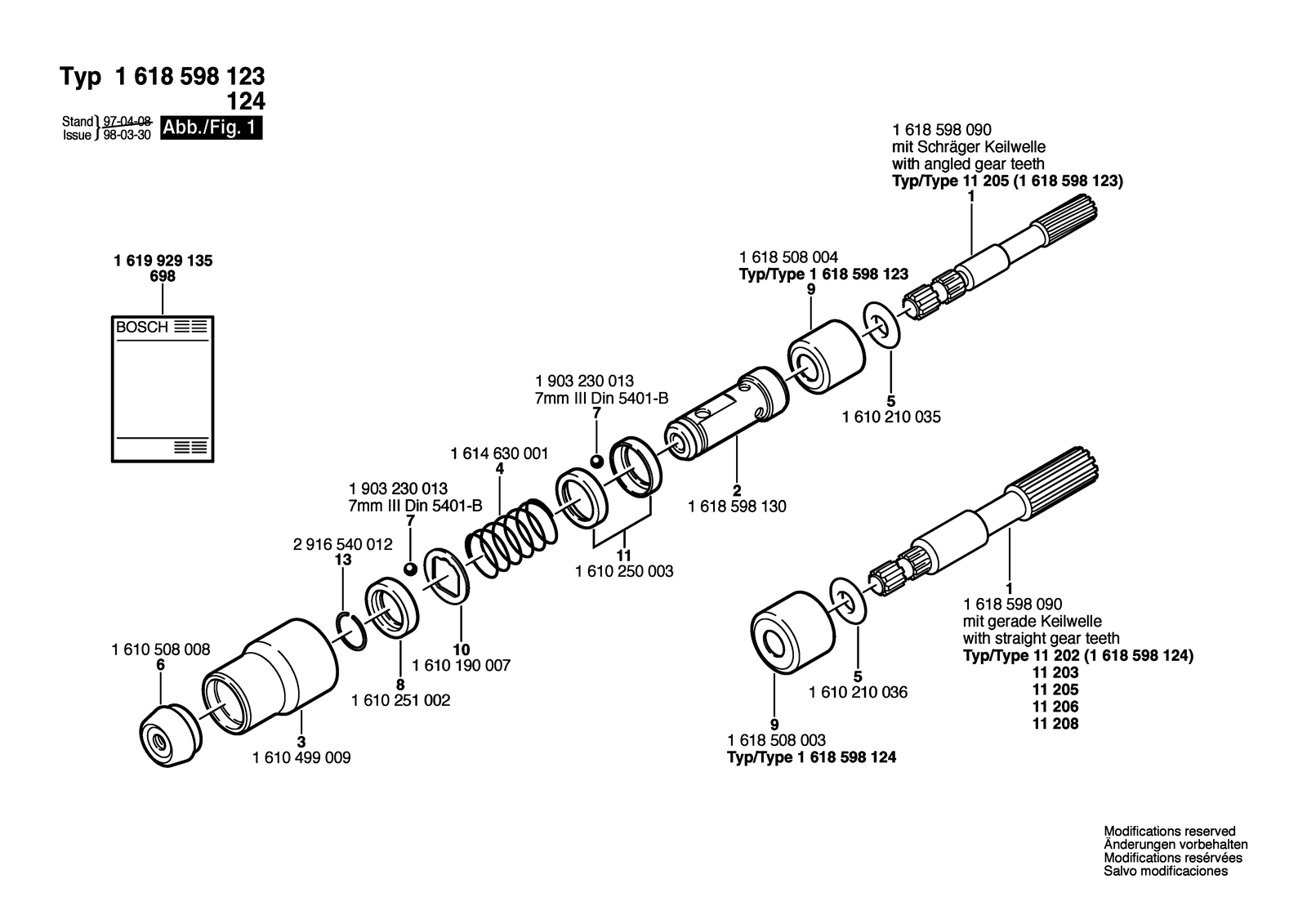

Bosch 1618598123 parts diagram, sheet 1
No.Part numberPart name
11618598123Bit holder
11618598124Bit holder
101610190007Holding Plate
101610190007Holding Plate
111610250003Retaining snap ring
111610250003Retaining snap ring
132916540012Retaining ring DIN 7993-A22
21618598131Bit holder
21618598131Bit holder
31610499009Protection Sleeve
31610499009Protection Sleeve
41614632000Compression Spring
41614632000Compression Spring
51610210035O-Ring 11,0X7,0 MM
51610210036O-Ring 15,0X6,0 MM
61610508008Protective Cap L=17 Mm, Sds-Plus
61610508008Protective Cap L=17 Mm, Sds-Plus
71903230013Ball DIN 5401-Ø7MM-III-ST
71903230013Ball DIN 5401-Ø7MM-III-ST
81610251002Thrust Ring
81610251002Thrust Ring
91610508004Backup ring
91610508003Backup ring
