Bosch 0612310001

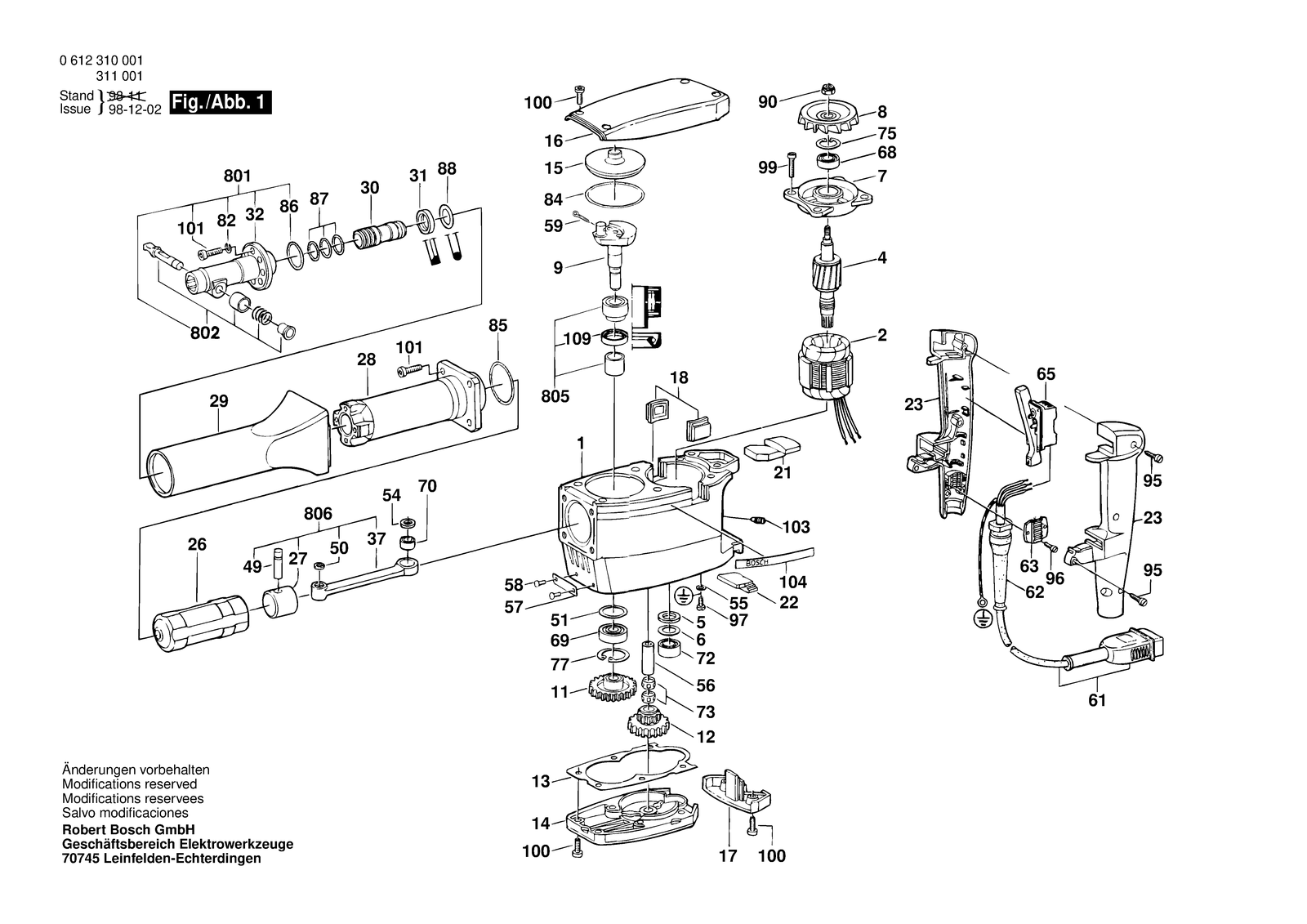

Bosch 0612310001 hf-demolition hammer: exploded parts diagram, 1 sheet, 143 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0612310001: 143 positions on 1 sheet
Bosch 0612310001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615106016 | Motor Housing |
| 1 | 1615106022 | Motor Housing |
| 1 | 1615106016 | Motor Housing |
| 100 | 2910141199 | Hex Socket Head Cap Screw DIN 912-M6X18-8.8 |
| 100 | 2910141199 | Hex Socket Head Cap Screw DIN 912-M6X18-8.8 |
| 101 | 2910141244 | Hex Socket Head Cap Screw DIN 912-M8X25-8.8 |
| 101 | 2910141244 | Hex Socket Head Cap Screw DIN 912-M8X25-8.8 |
| 103 | 2912051237 | Set screw DIN 417-M8X15-5.8 |
| 103 | 2912051237 | Set screw DIN 417-M8X15-5.8 |
| 104 | 1601110004 | Manufacturer's nameplate |
| 104 | 1601110004 | Manufacturer's nameplate |
| 109 | 1610283007 | Rotary shaft lip seal |
| 109 | 1610283007 | Rotary shaft lip seal |
| 11 | 1616317014 | Cylindrical Gear Z=40 |
| 11 | 1616317017 | Cylindrical Gear Z=38 |
| 12 | 1616328024 | Cylindrical Gear Z=46/26 |
| 12 | 1616328026 | Cylindrical Gear Z=47/28 |
| 13 | 1611015012 | Sealing Plate |
| 13 | 1611015012 | Sealing Plate |
| 14 | 1615808039 | Gear Cover |
| 14 | 1615808039 | Gear Cover |
| 15 | 1615500168 | Sealing cap |
| 15 | 1615500168 | Sealing cap |
| 16 | 1615500276 | Fan Cover |
| 16 | 1615500276 | Fan Cover |
| 17 | 1615500261 | Switch Cover |
| 17 | 1615500261 | Switch Cover |
| 18 | 1615500282 | Sealing cap |
| 18 | 1615500282 | Sealing cap |
| 2 | 1614229154 | Stator 250V/200HZ |
| 2 | 1614229155 | Stator 42V/200HZ |
| 2 | 1614229156 | Stator 115V/200HZ |
| 2 | 1614229154 | Stator 250V/200HZ |
| 21 | 1612392001 | Rubber Plate |
| 21 | 1612392001 | Rubber Plate |
| 22 | 1612392000 | Rubber Plate |
| 22 | 1612392000 | Rubber Plate |
| 23 | 1615133021 | Handle Black |
| 23 | 1615133021 | Handle Black |
| 26 | 1618710031 | Striker |
| 26 | 1618710031 | Striker |
| 27 | 1617000917 | Impact Mechanism |
| 27 | 1617000917 | Impact Mechanism |
| 29 | 1615190020 | Protective Tube |
| 29 | 1615190020 | Protective Tube |
| 30 | 1613120013 | Striker Pin |
| 30 | 1613120013 | Striker Pin |
| 31 | 1610114011 | Adaptor plate |
| 31 | 1610114011 | Adaptor plate |
| 4 | 1614080024 | Rotor Without Winding |
| 4 | 1614080024 | Rotor Without Winding |
| 49 | 1613105009 | Piston Pin |
| 49 | 1613105009 | Piston Pin |
| 5 | 1610108012 | Sealing disk |
| 5 | 1610108012 | Sealing disk |
| 50 | 1610113008 | Locking washer |
| 50 | 1610113008 | Locking washer |
| 51 | 1610102014 | Shim Thick 1,0 MM |
| 51 | 1610102014 | Shim Thick 1,0 MM |
| 54 | 1610113005 | Cover Disc Ø12XØ26X2,0 MM |
| 54 | 1610113005 | Cover Disc Ø12XØ26X2,0 MM |
| 55 | 1600150006 | Spring Washer DIN 137-A4 |
| 55 | 1600150006 | Spring Washer DIN 137-A4 |
| 56 | 1610300057 | Bearing bolt |
| 56 | 1610300057 | Bearing bolt |
| 58 | 2917721034 | Round-Head Grooved Pin 2X6 DIN 1476-ST |
| 58 | 2917721034 | Round-Head Grooved Pin 2X6 DIN 1476-ST |
| 59 | 1904681350 | Split Pin 3,2X18 DIN 94-ST |
| 59 | 1904681350 | Split Pin 3,2X18 DIN 94-ST |
| 6 | 1610102013 | Shim Thick 1,0 MM |
| 6 | 1610102013 | Shim Thick 1,0 MM |
| 61 | 1604462052 | Elec. Cable W/Connection |
| 61 | 1614461023 | Elec. Cable W/Connection |
| 61 | 1614461026 | Elec. Cable W/Connection |
| 61 | 1614461027 | Elec. Cable W/Connection |
| 61 | 1614462050 | Elec. Cable W/Connection |
| 61 | 1614462054 | Elec. Cable W/Connection |
| 61 | 1614462078 | Power supply cord 5M 4 X 1,0MM |
| 61 | 1614422053 | Cable 4X0,75 MM² |
| 62 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 62 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 63 | 1611302006 | Fastening Clamp |
| 63 | 1611302007 | Fastening Clamp |
| 63 | 1611302007 | Fastening Clamp |
| 65 | 1617200020 | Switch |
| 65 | 1617200024 | On-Off Switch |
| 650 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 650 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 68 | 1610905001 | Groove ball bearing 10X32X12 |
| 68 | 1610905001 | Groove ball bearing 10X32X12 |
| 69 | 1610900013 | Groove ball bearing |
| 69 | 1610900013 | Groove ball bearing |
| 7 | 1615805048 | Bearing Flange |
| 7 | 1615805048 | Bearing Flange |
| 70 | 1610910049 | Needle-Roller Bearing |
| 70 | 1610910049 | Needle-Roller Bearing |
| 72 | 1610910007 | Needle-Roller Bearing |
| 72 | 1610910007 | Needle-Roller Bearing |
| 73 | 1610913001 | Needle-Roller Assembly |
| 73 | 1610913001 | Needle-Roller Assembly |
| 75 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 75 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 77 | 2916660018 | Spring retaining ring 40X1,75 Mm, DIN 472 |
| 77 | 2916660018 | Spring retaining ring 40X1,75 Mm, DIN 472 |
| 8 | 1616610045 | Fan |
| 8 | 1616610045 | Fan |
| 801 | 1617000017 | Tool Holder Set |
| 801 | 1617000017 | Tool Holder Set |
| 802 | 1617000014 | Locking Bolt Set |
| 802 | 1617000014 | Locking Bolt Set |
| 803 | 1617000019 | Service box |
| 803 | 1617000019 | Service box |
| 805 | 1617031004 | Seal Kit |
| 805 | 1617031004 | Seal Kit |
| 806 | 1617000917 | Impact Mechanism |
| 806 | 1617000917 | Impact Mechanism |
| 809 | 1617031014 | Assembly Of Service Parts |
| 810 | 1617000104 | Parts Set 10 Piece |
| 810 | 1617000104 | Parts Set 10 Piece |
| 82 | 2916680009 | Spring Lock Washer B 8 DIN 127 |
| 82 | 2916680009 | Spring Lock Washer B 8 DIN 127 |
| 84 | 1900210160 | O-Ring 70X3 MM |
| 84 | 1900210160 | O-Ring 70X3 MM |
| 85 | 1900210152 | O-Ring 55X3 MM |
| 85 | 1900210152 | O-Ring 55X3 MM |
| 86 | 1900210130 | O-Ring 30X2 MM |
| 86 | 1900210130 | O-Ring 30X2 MM |
| 88 | 1610280001 | Seal Ring |
| 88 | 1610280001 | Seal Ring |
| 888 | 160111A3H3 | Nameplate |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1616110032 | Eccentric Shaft |
| 9 | 1616110032 | Eccentric Shaft |
| 90 | 2915061005 | Hex Nut DIN 985-M8-8 |
| 90 | 2915061005 | Hex Nut DIN 985-M8-8 |
| 95 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 95 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 96 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 96 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 97 | 2910110116 | Pan head screw DIN 85 AM 4X6-MS |
| 97 | 2910110116 | Pan head screw DIN 85 AM 4X6-MS |
| 99 | 2910141196 | Hex Socket Head Cap Screw DIN 912-M6X15-8.8 |
| 99 | 2910141196 | Hex Socket Head Cap Screw DIN 912-M6X15-8.8 |
