Bosch 0612308001

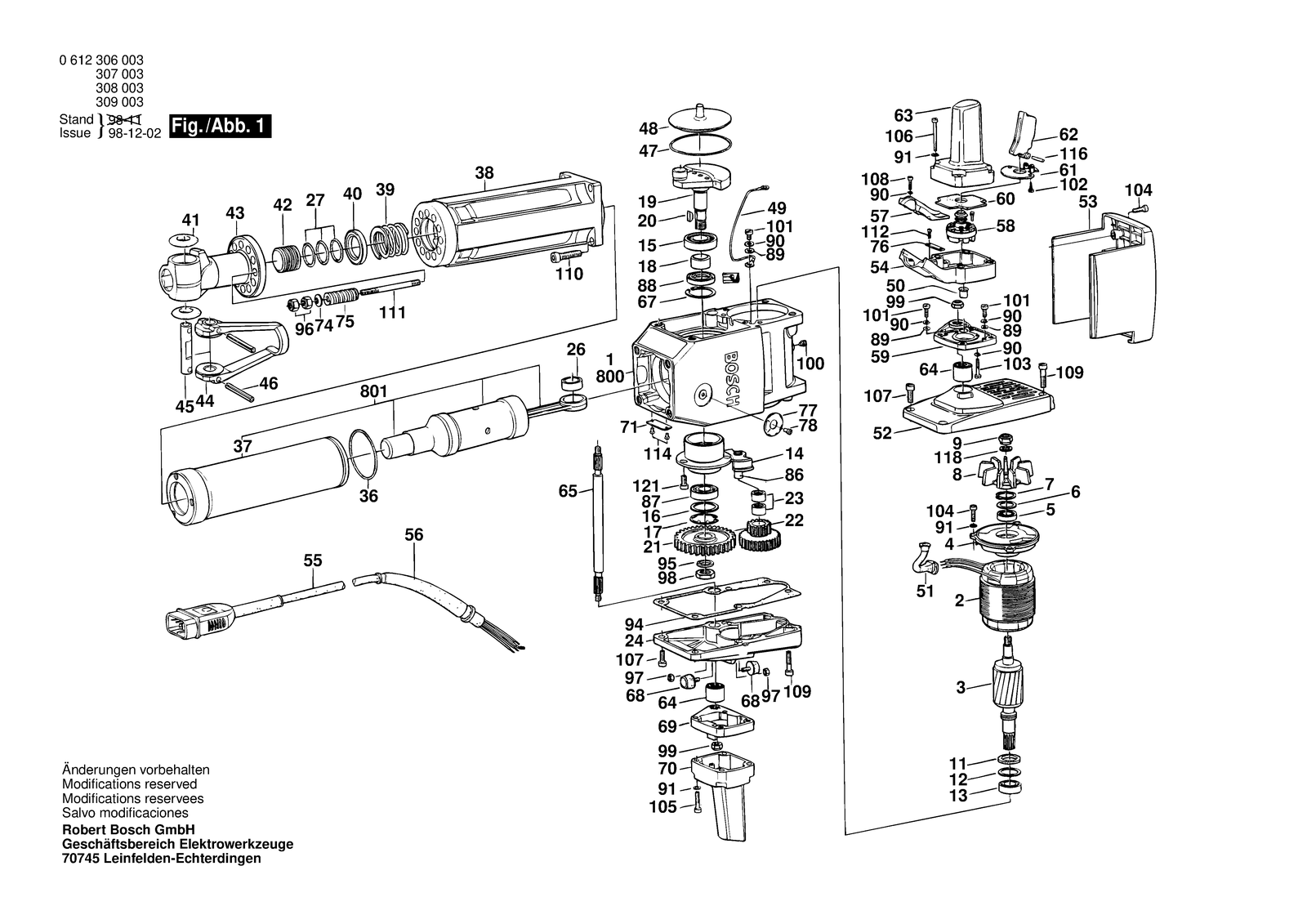

Bosch 0612308001 road breaker: exploded parts diagram, 2 sheets, 399 positions. Spare parts with part numbers, availability and prices.

—

Scroll to zoom · drag to move

All parts on this sheet0 Only available

All parts of Bosch 0612308001: 399 positions on 2 sheets

Bosch 0612308001 parts list (2 sheets)

No.	Part number	Part name
1	1615106025	Motor Housing
1	1615106025	Motor Housing
1	1615106025	Motor Housing
1	1615106027	Motor Housing
1	1615106025	Motor Housing
100	2912051237	Set screw DIN 417-M8X15-5.8
100	2912051237	Set screw DIN 417-M8X15-5.8
100	2912051237	Set screw DIN 417-M8X15-5.8
100	2912051237	Set screw DIN 417-M8X15-5.8
101	2910110118	Pan head screw DIN 85-AM4X8-MS
101	2910110118	Pan head screw DIN 85-AM4X8-MS
101	2910110118	Pan head screw DIN 85-AM4X8-MS
101	2910110118	Pan head screw DIN 85-AM4X8-MS
102	2910211025	Tapping Screw DIN 7971-BZ4,2X13
102	2910211025	Tapping Screw DIN 7971-BZ4,2X13
102	2910211025	Tapping Screw DIN 7971-BZ4,2X13
102	2910211025	Tapping Screw DIN 7971-BZ4,2X13
103	2910011132	Socket head cap screw DIN 84-AM4X25-5.8
103	2910011132	Socket head cap screw DIN 84-AM4X25-5.8
103	2910011132	Socket head cap screw DIN 84-AM4X25-5.8
103	2910011132	Socket head cap screw DIN 84-AM4X25-5.8
104	2910141201	Hex Socket Head Cap Screw DIN 912-M6X20-8.8
104	2910141201	Hex Socket Head Cap Screw DIN 912-M6X20-8.8
104	2910141201	Hex Socket Head Cap Screw DIN 912-M6X20-8.8
104	2910141201	Hex Socket Head Cap Screw DIN 912-M6X20-8.8
105	2910142205	Hex Socket Head Cap Screw DIN 912-M 6X30-8.8
105	2910142205	Hex Socket Head Cap Screw DIN 912-M 6X30-8.8
105	2910142205	Hex Socket Head Cap Screw DIN 912-M 6X30-8.8
105	2910142205	Hex Socket Head Cap Screw DIN 912-M 6X30-8.8
106	2910141215	Hex Socket Head Cap Screw DIN 912-M6X55-8.8
106	2910141215	Hex Socket Head Cap Screw DIN 912-M6X55-8.8
106	2910141215	Hex Socket Head Cap Screw DIN 912-M6X55-8.8
106	2910141215	Hex Socket Head Cap Screw DIN 912-M6X55-8.8
107	2910141242	Hex Socket Head Cap Screw DIN 912-M8X20-8.8
107	2910141242	Hex Socket Head Cap Screw DIN 912-M8X20-8.8
107	2910141242	Hex Socket Head Cap Screw DIN 912-M8X20-8.8
107	2910141242	Hex Socket Head Cap Screw DIN 912-M8X20-8.8
108	2910021125	Socket head cap screw DIN 84-AM4X15-8.8
108	2910021125	Socket head cap screw DIN 84-AM4X15-8.8
108	2910021125	Socket head cap screw DIN 84-AM4X15-8.8
108	2910021125	Socket head cap screw DIN 84-AM4X15-8.8
109	2910141248	Hex Socket Head Cap Screw DIN 912-M8X35-8.8
109	2910141248	Hex Socket Head Cap Screw DIN 912-M8X35-8.8
109	2910141248	Hex Socket Head Cap Screw DIN 912-M8X35-8.8
109	2910141248	Hex Socket Head Cap Screw DIN 912-M8X35-8.8
11	1610108009	Felt Washer
11	1610108009	Felt Washer
11	1610108009	Felt Washer
11	1610108009	Felt Washer
110	2910141346	Dummy DIN 912-M 12X40-8.8
110	2910141346	Dummy DIN 912-M 12X40-8.8
110	2910141346	Dummy DIN 912-M 12X40-8.8
110	2910141346	Dummy DIN 912-M 12X40-8.8
111	2613502002	Stud
111	2613502002	Stud
111	2613502002	Stud
111	2613502002	Stud
112	2910011154	Socket head cap screw DIN 84-AM5X12-5.8
112	2910011154	Socket head cap screw DIN 84-AM5X12-5.8
112	2910011154	Socket head cap screw DIN 84-AM5X12-5.8
112	2910011154	Socket head cap screw DIN 84-AM5X12-5.8
114	2917721034	Round-Head Grooved Pin 2X6 DIN 1476-ST
114	2917721034	Round-Head Grooved Pin 2X6 DIN 1476-ST
114	2917721034	Round-Head Grooved Pin 2X6 DIN 1476-ST
114	2917721034	Round-Head Grooved Pin 2X6 DIN 1476-ST
116	1613100005	Straight Pin
116	1613100005	Straight Pin
116	1613100005	Straight Pin
116	1613100005	Straight Pin
118	2916011019	Plain Washer DIN 433-A13-ST 50
118	2916011019	Plain Washer DIN 433-A13-ST 50
118	2916011019	Plain Washer DIN 433-A13-ST 50
118	2916011019	Plain Washer DIN 433-A13-ST 50
12	1610103004	Supporting Disc Thick 2,5 MM
12	1610103004	Supporting Disc Thick 2,5 MM
12	1610103004	Supporting Disc Thick 2,5 MM
12	1610103004	Supporting Disc Thick 2,5 MM
121	2910141244	Hex Socket Head Cap Screw DIN 912-M8X25-8.8
121	2910141244	Hex Socket Head Cap Screw DIN 912-M8X25-8.8
121	2910141244	Hex Socket Head Cap Screw DIN 912-M8X25-8.8
121	2910141244	Hex Socket Head Cap Screw DIN 912-M8X25-8.8
13	1610910034	Needle-Roller Bearing
13	1610910034	Needle-Roller Bearing
13	1610910034	Needle-Roller Bearing
13	1610910034	Needle-Roller Bearing
14	1615805043	Flanged Bearing
14	1615805043	Flanged Bearing
14	1615805043	Flanged Bearing
14	1615805043	Flanged Bearing
15	1610910012	Cyl. Roller Bearing DIN 5412-62X30X16
15	1610910012	Cyl. Roller Bearing DIN 5412-62X30X16
15	1610910012	Cyl. Roller Bearing DIN 5412-62X30X16
15	1610910012	Cyl. Roller Bearing DIN 5412-62X30X16
16	1610102010	Shim Thick 2,5 MM
16	1610102010	Shim Thick 2,5 MM
16	1610102010	Shim Thick 2,5 MM
16	1610102010	Shim Thick 2,5 MM
17	2916660023	Spring retaining ring DIN 472 52X2MM
17	2916660023	Spring retaining ring DIN 472 52X2MM
17	2916660023	Spring retaining ring DIN 472 52X2MM
17	2916660023	Spring retaining ring DIN 472 52X2MM
18	1610300034	Spacer Bushing
18	1610300034	Spacer Bushing
18	1610300034	Spacer Bushing
18	1610300034	Spacer Bushing
19	1616110011	Eccentric Shaft
19	1616110011	Eccentric Shaft
19	1616110011	Eccentric Shaft
19	1616110011	Eccentric Shaft
2	1614229096	Stator 250V/200HZ
2	1614229128	Stator 72V/200HZ
2	1614229129	Stator 115V/200HZ
2	1614229096	Stator 250V/200HZ
2	1614229097	Stator 250V/200HZ,230V/180HZ
2	1614229127	Stator 115V/200HZ
2	1614229131	Stator 72V/200HZ
2	1614229153	Stator 200V/400HZ
2	1614229097	Stator 250V/200HZ,230V/180HZ
20	1610023002	Woodruff Key
20	1610023002	Woodruff Key
20	1610023002	Woodruff Key
20	1610023002	Woodruff Key
21	1616318006	Cylindrical Gear Z=46
21	1616318007	Cylindrical Gear Z=45
21	1616318006	Cylindrical Gear Z=46
21	1616318007	Cylindrical Gear Z=45
22	1616328021	Cylindrical Gear Z=50/18
22	1616328020	Cylindrical Gear Z=59/19
22	1616328021	Cylindrical Gear Z=50/18
22	1616328020	Cylindrical Gear Z=59/19
23	1610910002	Needle bearing
23	1610910002	Needle bearing
23	1610910002	Needle bearing
23	1610910002	Needle bearing
24	1615500099	Gear Cover
24	1615500099	Gear Cover
24	1615500099	Gear Cover
24	1615500171	Gear Cover
24	1615500099	Gear Cover
26	1610910035	Needle-Roller Bearing D20XD37X17
26	1610910035	Needle-Roller Bearing D20XD37X17
26	1610910035	Needle-Roller Bearing D20XD37X17
26	1610910035	Needle-Roller Bearing D20XD37X17
27	3600210131	O-Ring 35,0X3,0 MM
27	3600210131	O-Ring 35,0X3,0 MM
27	1900210132	O-Ring 30X3 MM
27	1900210132	O-Ring 30X3 MM
3	1614081006	Rotor Without Winding
3	1614081006	Rotor Without Winding
3	1614081030	Rotor Without Winding
3	1614082003	Rotor Without Winding
3	1614081030	Rotor Without Winding
36	1900210166	O-Ring 80X3 MM
36	1900210166	O-Ring 80X3 MM
36	1900210166	O-Ring 80X3 MM
36	1900210166	O-Ring 80X3 MM
37	1615806009	Guide Tube
37	1615806009	Guide Tube
37	1615806013	Guide Tube
37	1615806013	Guide Tube
38	1615806011	Hammer Pipe
38	1615806011	Hammer Pipe
38	1615806015	Hammer Pipe
38	1615806015	Hammer Pipe
39	1614624010	Compression Spring
39	1614624010	Compression Spring
39	1614023000	Compression Spring
39	1614623000	Compression Spring
4	1615808028	Bearing Flange
4	1615808028	Bearing Flange
4	1615808028	Bearing Flange
4	1615808028	Bearing Flange
40	1610114010	Adaptor plate
40	1610114010	Adaptor plate
40	1610114009	Adaptor plate
40	1610114009	Adaptor plate
41	1610210008	O-Ring 17,3X17,7 MM
41	1610210008	O-Ring 17,3X17,7 MM
41	1610210008	O-Ring 17,3X17,7 MM
41	1610210008	O-Ring 17,3X17,7 MM
42	1613200003	Striker Pin
42	1613200003	Striker Pin
42	1613200002	Striker Pin
42	1613200002	Striker Pin
43	1618597013	Toolholder
43	1618597013	Toolholder
43	1618597012	Toolholder
43	1618597012	Toolholder
44	1618045026	Retaining Bracket
44	1618045026	Retaining Bracket
44	1618045026	Retaining Bracket
44	1618045026	Retaining Bracket
45	1613103004	Locking Bolt
45	1613103004	Locking Bolt
45	1613103004	Locking Bolt
45	1613103004	Locking Bolt
46	2917760187	Slotted Spring Pin 8X55 DIN 1481
46	2917760187	Slotted Spring Pin 8X55 DIN 1481
46	2917760187	Slotted Spring Pin 8X55 DIN 1481
46	2917760187	Slotted Spring Pin 8X55 DIN 1481
47	1900210172	O-Ring 100X3 MM
47	1900210172	O-Ring 100X3 MM
47	1900210172	O-Ring 100X3 MM
47	1900210172	O-Ring 100X3 MM
48	1610516007	Sealing cap
48	1610516007	Sealing cap
48	1610516007	Sealing cap
48	1610516007	Sealing cap
49	1614441000	Connecting Cable
49	1614441000	Connecting Cable
49	1614441000	Connecting Cable
49	1614441000	Connecting Cable
5	1900905279	Groove ball bearing 15X35X11
5	1900905279	Groove ball bearing 15X35X11
5	1900905279	Groove ball bearing 15X35X11
5	1900905279	Groove ball bearing 15X35X11
50	3600421500	Protection Sleeve
50	3600421500	Protection Sleeve
50	3600421500	Protection Sleeve
50	3600421500	Protection Sleeve
51	1610703019	Cord guard
51	1610703019	Cord guard
51	1610703019	Cord guard
51	1610703027	Grommet
51	1610703019	Cord guard
52	1615500097	Fan Cover
52	1615500097	Fan Cover
52	1615500097	Fan Cover
52	1615500172	Fan Cover
52	1615500097	Fan Cover
53	1600A00C0N	Covering hood
53	1600A00C0N	Covering hood
53	1600A00C0N	Covering hood
53	1600A00C0N	Covering hood
54	1617000858	Switch Housing
54	1617000858	Switch Housing
54	1615130014	Switch Housing
54	1617000858	Switch Housing
54	1617000858	Switch Housing
55	1614462018	Power supply cord
55	1614462027	Elec. Cable W/Connection
55	1614462038	Power supply cord
55	1614462040	Elec. Cable W/Connection
55	1614462043	Elec. Cable W/Connection
55	1614462018	Power supply cord
55	1614462027	Elec. Cable W/Connection
55	1614462038	Power supply cord
55	1614462040	Elec. Cable W/Connection
55	1614462047	Elec. Cable W/Connection
55	1614462043	Elec. Cable W/Connection
56	1610703011	Grommet
56	1610703011	Grommet
56	1610703011	Grommet
56	1610703011	Grommet
57	1615500095	Switch Cover
57	1615500095	Switch Cover
57	1615500095	Switch Cover
57	1615500095	Switch Cover
58	1617200108	Switch
58	1617200108	Switch
58	1617200018	On-Off Switch
58	1617200108	Switch
58	1617200108	Switch
59	1615700041	Intermediate Plate
59	1615700041	Intermediate Plate
59	1612310006	Intermediate Plate
59	1615700041	Intermediate Plate
59	1615700041	Intermediate Plate
6	2916280021	Supporting Disc DIN 988-S25X35X2
6	2916280021	Supporting Disc DIN 988-S25X35X2
6	2916280021	Supporting Disc DIN 988-S25X35X2
6	2916280021	Supporting Disc DIN 988-S25X35X2
60	1611031001	Sealing Plate
60	1611031001	Sealing Plate
60	1611031001	Sealing Plate
60	1611031001	Sealing Plate
61	1610147008	Fixing plate
61	1610147008	Fixing plate
61	1610147008	Fixing plate
61	1610147008	Fixing plate
62	1612026011	Switch-Pawl
62	1612026011	Switch-Pawl
62	1612026011	Switch-Pawl
62	1612026011	Switch-Pawl
63	1615132010	Handle
63	1615132010	Handle
63	1615132010	Handle
63	1615132010	Handle
64	1616334000	Rubber Torsion-Bar
64	1616334000	Rubber Torsion-Bar
64	1616334000	Rubber Torsion-Bar
64	1616334000	Rubber Torsion-Bar
65	1613060005	Toothed Shaft
65	1613060005	Toothed Shaft
65	1613060005	Toothed Shaft
65	1613060005	Toothed Shaft
67	2916660023	Spring retaining ring DIN 472 52X2MM
67	2916660023	Spring retaining ring DIN 472 52X2MM
67	2916660023	Spring retaining ring DIN 472 52X2MM
67	2916660023	Spring retaining ring DIN 472 52X2MM
68	1613465001	Rubber Buffer
68	1613465001	Rubber Buffer
68	1613465001	Rubber Buffer
68	1613465001	Rubber Buffer
69	1615700042	Intermediate Plate
69	1615700042	Intermediate Plate
69	1612310007	Intermediate Plate
69	1615700042	Intermediate Plate
69	1615700042	Intermediate Plate
7	1610119005	Spring retaining ring
7	1610119005	Spring retaining ring
7	1610119005	Spring retaining ring
7	1610119005	Spring retaining ring
70	1615132011	Handle
70	1615132011	Handle
70	1615132011	Handle
70	1615132011	Handle
71	1611104002	Nameplate
74	2916160009	Disc Spring DIN 2093-A25X12,2X1,5
74	2916160009	Disc Spring DIN 2093-A25X12,2X1,5
74	2916160009	Disc Spring DIN 2093-A25X12,2X1,5
74	2916160009	Disc Spring DIN 2093-A25X12,2X1,5
75	1614640000	Compression Spring
75	1614640000	Compression Spring
75	1614640000	Compression Spring
75	1614640000	Compression Spring
76	1611034013	Fixing plate
76	1611034013	Fixing plate
76	1611034013	Fixing plate
76	1611034013	Fixing plate
77	1610032000	Sticker
77	1610032000	Sticker
77	1610032000	Sticker
77	1610032000	Sticker
78	1617401000	Lubric. Head
78	1617401000	Lubric. Head
78	1617401000	Lubric. Head
78	1617401000	Lubric. Head
8	1616610028	Fan
8	1616610028	Fan
8	1616610028	Fan
8	1616610028	Fan
800	1615106025	Motor Housing
800	1615106025	Motor Housing
800	1615106025	Motor Housing
800	1615106029	Motor Housing
800	1615106025	Motor Housing
801	1617031007	Piston Assembly
801	1617031007	Piston Assembly
801	1617031006	Piston Assembly
801	1617031006	Piston Assembly
86	1610300033	Bearing bolt
86	1610300033	Bearing bolt
86	1610300033	Bearing bolt
86	1610300033	Bearing bolt
87	1900900307	Groove ball bearing 6205 DIN 625
87	1900900307	Groove ball bearing 6205 DIN 625
87	1900900307	Groove ball bearing 6205 DIN 625
87	1900900307	Groove ball bearing 6205 DIN 625
89	2916010409	Plain Washer DIN 46 255-DPG 9
89	2916010409	Plain Washer DIN 46 255-DPG 9
89	2916010409	Plain Washer DIN 46 255-DPG 9
89	2916010409	Plain Washer DIN 46 255-DPG 9
9	1613313000	Hex Nut DIN 985-M12X1
9	1613313000	Hex Nut DIN 985-M12X1
9	1613313000	Hex Nut DIN 985-M12X1
9	1613313000	Hex Nut DIN 985-M12X1
90	2916690003	Spring Lock Washer DIN 128-A4-FST
90	2916690003	Spring Lock Washer DIN 128-A4-FST
90	2916690003	Spring Lock Washer DIN 128-A4-FST
90	2916690003	Spring Lock Washer DIN 128-A4-FST
91	2916690005	Spring Lock Washer M6
91	2916690005	Spring Lock Washer M6
91	2916690005	Spring Lock Washer M6
91	2916690005	Spring Lock Washer M6
94	1611015021	Sealing Plate
94	1611015021	Sealing Plate
94	1611015021	Sealing Plate
94	1611015021	Sealing Plate
95	2916680015	Dummy
95	2916680015	Dummy
95	2916680015	Dummy
95	2916680015	Dummy
96	1613302000	Hex Nut
96	1613302000	Hex Nut
96	1613302000	Hex Nut
96	1613302000	Hex Nut
97	2915011007	Hex Nut DIN 934-M6-8-A
97	2915011007	Hex Nut DIN 934-M6-8-A
97	2915011007	Hex Nut DIN 934-M6-8-A
97	2915011007	Hex Nut DIN 934-M6-8-A
98	1613300005	Hex Nut
98	1613300005	Hex Nut
98	1613300005	Hex Nut
98	1613300005	Hex Nut
99	3613313500	Hex Nut DIN 985-10-M10X1
99	3613313500	Hex Nut DIN 985-10-M10X1
99	3613313500	Hex Nut DIN 985-10-M10X1
99	3613313500	Hex Nut DIN 985-10-M10X1

Selected parts0

Bosch 0612308001

Bosch 0612308001 parts list (2 sheets)

Contact info

Cart

Subtotal:
