Bosch 0611302001

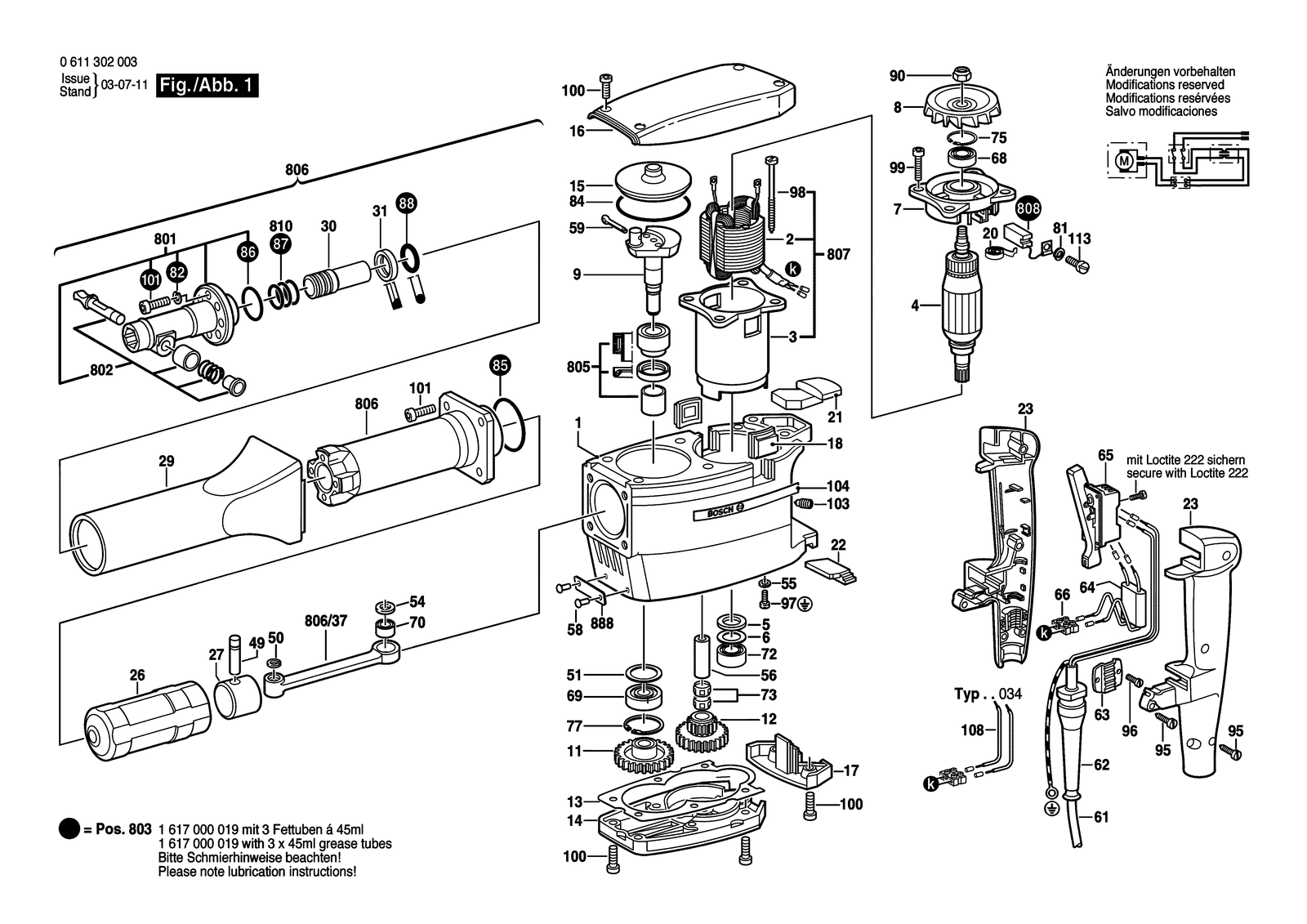

Bosch 0611302001 un-demolition hammer: exploded parts diagram, 1 sheet, 87 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0611302001: 87 positions on 1 sheet
Bosch 0611302001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615106023 | Motor Housing |
| 100 | 2910141199 | Hex Socket Head Cap Screw DIN 912-M6X18-8.8 |
| 101 | 2910141244 | Hex Socket Head Cap Screw DIN 912-M8X25-8.8 |
| 104 | 1601110004 | Manufacturer's nameplate |
| 104 | 1601110058 | Reference Plate Double Insulation |
| 108 | 1614437008 | Connecting Cable |
| 11 | 1616317015 | Cylindrical Gear Z=45 |
| 113 | 2910021120 | Socket head cap screw DIN 84-AM4X10-8.8 |
| 12 | 1616328025 | Cylindrical Gear Z=47/21 |
| 13 | 1611015012 | Sealing Plate |
| 14 | 1615808039 | Gear Cover |
| 15 | 1615500168 | Sealing cap |
| 16 | 1615500276 | Fan Cover |
| 17 | 1615500261 | Switch Cover |
| 18 | 1615500282 | Sealing cap |
| 2 | 1617031009 | Field 220-230V |
| 2 | 1617031010 | Field 110-115V |
| 2 | 1617031011 | Field 240V |
| 20 | 1614652000 | Spiral Spring |
| 21 | 1612392001 | Rubber Plate |
| 22 | 1612392000 | Rubber Plate |
| 23 | 1615133021 | Handle Black |
| 26 | 1618710031 | Striker |
| 27 | 1617000917 | Impact Mechanism |
| 29 | 1615190020 | Protective Tube |
| 3 | 1617000059 | Pole housing |
| 30 | 1613120013 | Striker Pin |
| 31 | 1610114011 | Adaptor plate |
| 4 | 1614011019 | Armature 220-230V |
| 4 | 1614011020 | Armature 110-115V |
| 4 | 1614011021 | Armature 240V |
| 49 | 1613105009 | Piston Pin |
| 5 | 1610108012 | Sealing disk |
| 50 | 1610113008 | Locking washer |
| 51 | 1610102014 | Shim Thick 1,0 MM |
| 54 | 1610113005 | Cover Disc Ø12XØ26X2,0 MM |
| 55 | 1600150006 | Spring Washer DIN 137-A4 |
| 56 | 1610300057 | Bearing bolt |
| 58 | 2917721034 | Round-Head Grooved Pin 2X6 DIN 1476-ST |
| 59 | 1904681350 | Split Pin 3,2X18 DIN 94-ST |
| 6 | 1610102013 | Shim Thick 1,0 MM |
| 61 | 1604460092 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 61 | 1614460004 | Power supply cord |
| 61 | 1614460006 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 61 | 1614461024 | Elec. Cable W/Connection |
| 61 | 1617000723 | Power supply cord |
| 62 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 62 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 63 | 1611302006 | Fastening Clamp |
| 63 | 1611302007 | Fastening Clamp |
| 64 | 1617328002 | Suppression Filter |
| 65 | 1617200021 | On-Off Switch |
| 66 | 1611091002 | Connecting terminal 2-POLE |
| 68 | 1610905001 | Groove ball bearing 10X32X12 |
| 69 | 1610900013 | Groove ball bearing |
| 7 | 1615805060 | Bearing Flange |
| 70 | 1610910049 | Needle-Roller Bearing |
| 72 | 1610910007 | Needle-Roller Bearing |
| 73 | 1610913001 | Needle-Roller Assembly |
| 75 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 77 | 2916660018 | Spring retaining ring 40X1,75 Mm, DIN 472 |
| 8 | 1616610047 | Fan |
| 801 | 1617000017 | Tool Holder Set |
| 802 | 1617000014 | Locking Bolt Set |
| 803 | 1617000019 | Service box |
| 805 | 1617031004 | Seal Kit |
| 806 | 1617031005 | Piston Assembly |
| 806/37 | 1612001023 | Connecting Rod |
| 807 | 1617031009 | Field 220-230V |
| 807 | 1617031010 | Field 110-115V |
| 807 | 1617031011 | Field 240V |
| 808 | 1617014110 | Carbon-Brush Set |
| 81 | 1600150006 | Spring Washer DIN 137-A4 |
| 81 | 1611331007 | Tab Washer |
| 82 | 2916680009 | Spring Lock Washer B 8 DIN 127 |
| 84 | 1900210160 | O-Ring 70X3 MM |
| 85 | 1900210152 | O-Ring 55X3 MM |
| 86 | 1900210130 | O-Ring 30X2 MM |
| 88 | 1610210042 | O-Ring 22,0X6,0 MM |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1616110032 | Eccentric Shaft |
| 90 | 2915061005 | Hex Nut DIN 985-M8-8 |
| 95 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 96 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 97 | 2910110116 | Pan head screw DIN 85 AM 4X6-MS |
| 98 | 2910011179 | Dummy DIN 84-B5X65-5.8 |
| 99 | 2910021204 | Socket head cap screw DIN 84-AM6X28-8.8 |
