Bosch 0611300001
Bosch 0611300001 un-demolition hammer: exploded parts diagram, 3 sheets, 157 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0611300001: 157 positions on 3 sheets

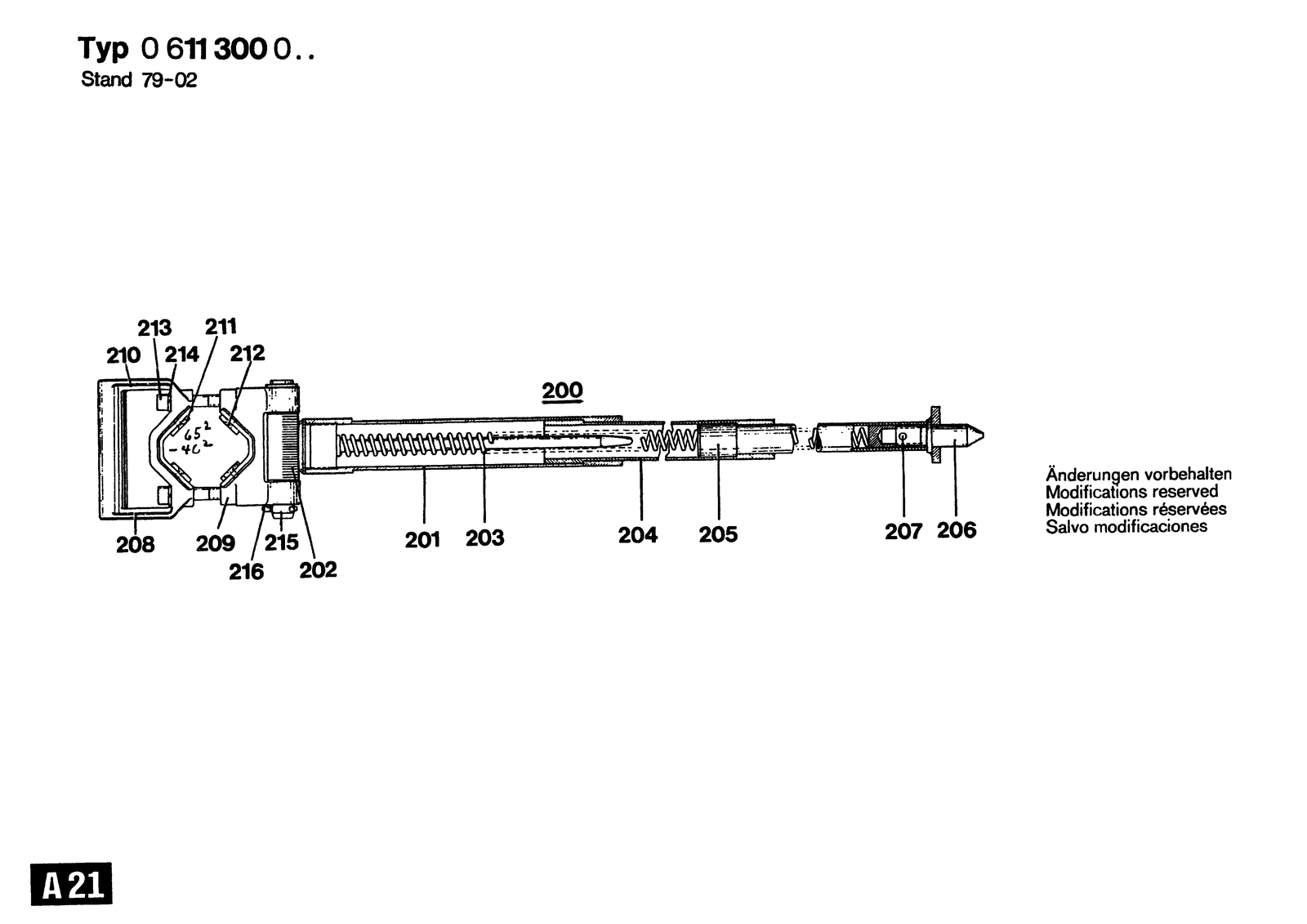

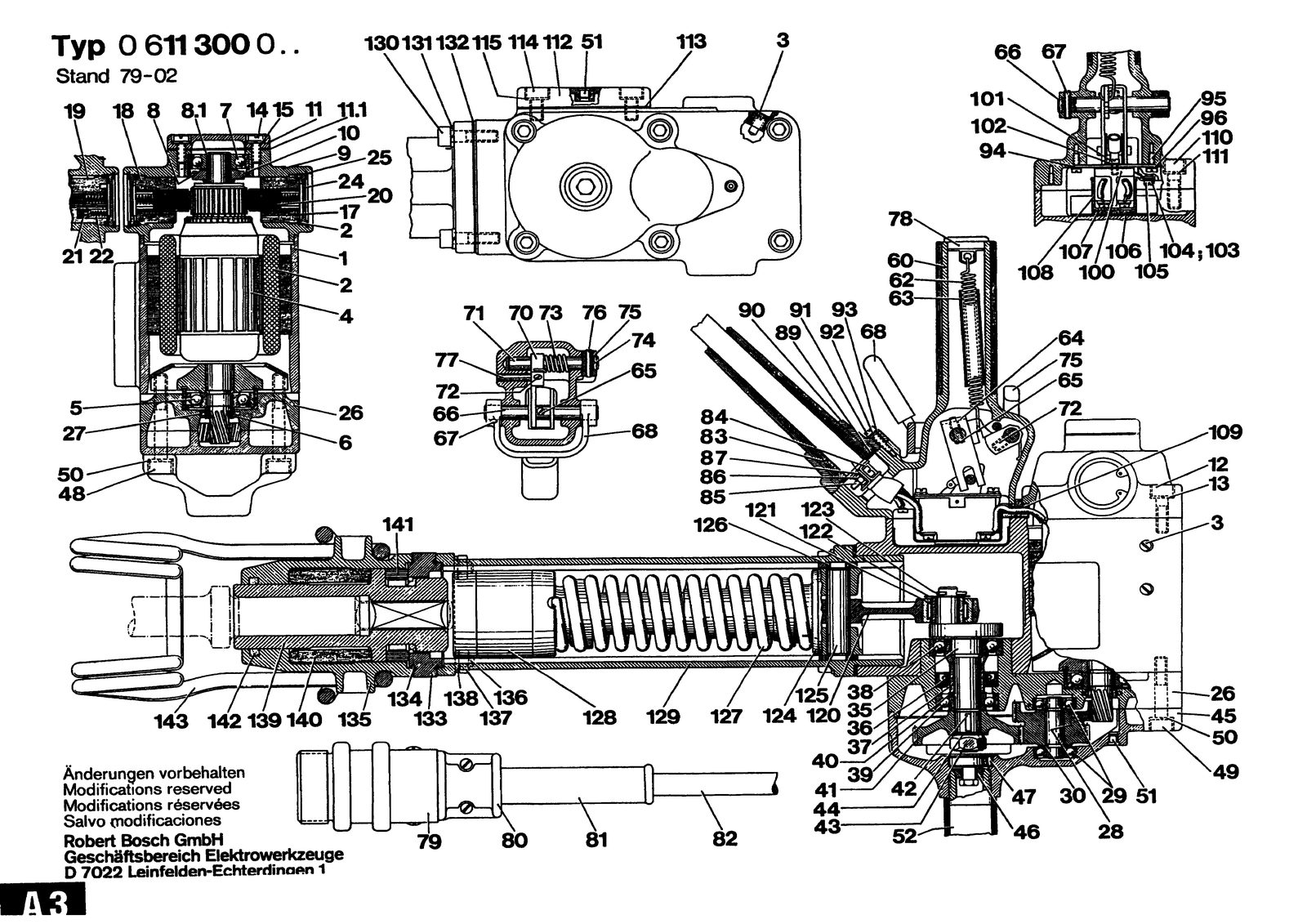

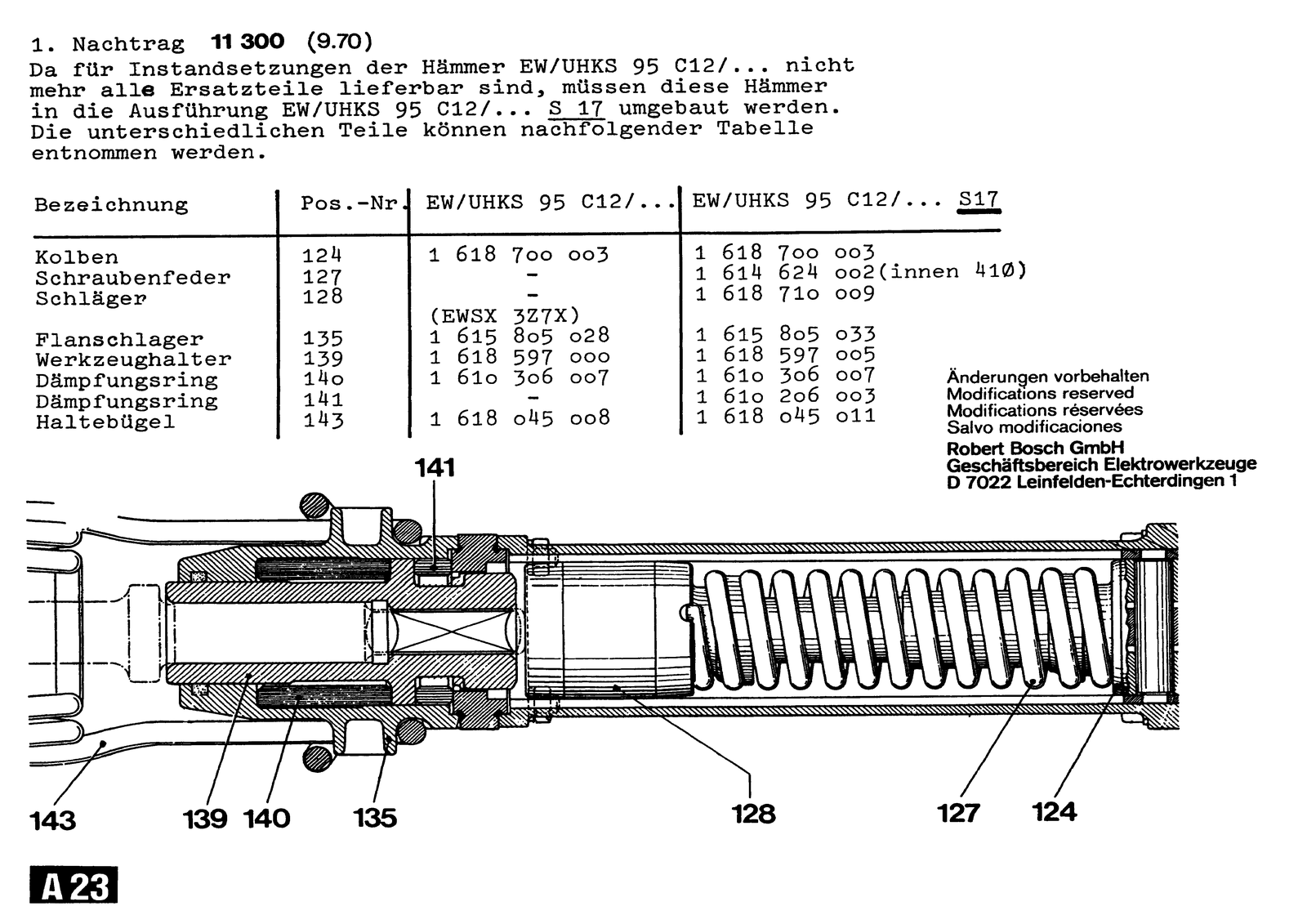

Bosch 0611300001 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615106003 | Motor Housing Yellow |
| 10 | 1610220005 | Retaining snap ring |
| 100 | 1617200005 | On-Off Switch |
| 101 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 102 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 103 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 104 | 1600150006 | Spring Washer DIN 137-A4 |
| 105 | 2916010410 | Plain Washer A 4,3 DIN 125-ST |
| 106 | 1611007006 | Insulating Strip |
| 107 | 1611006003 | Insulating Plate |
| 108 | 1610583001 | Insulating Cap |
| 109 | 1610306012 | Grommet |
| 11 | 1610051000 | Sealing Plate |
| 11 | 1615500008 | Sealing cap |
| 110 | 2910141244 | Hex Socket Head Cap Screw DIN 912-M8X25-8.8 |
| 111 | 2916680009 | Spring Lock Washer B 8 DIN 127 |
| 112 | 1615500004 | Housing Cover |
| 113 | 1611015000 | Sealing disk |
| 114 | 2910141237 | Hex Socket Head Cap Screw DIN 912-M8X15-8.8 |
| 115 | 2916060008 | Spring Washer A 8 DIN 137-ST |
| 12 | 2910141244 | Hex Socket Head Cap Screw DIN 912-M8X25-8.8 |
| 120 | 1612001010 | Connecting Rod |
| 121 | 1610910000 | Needle-Roller Bearing |
| 121 | 1900900302 | Groove ball bearing 12X32X10 |
| 122 | 1610142001 | Adaptor plate |
| 122 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 123 | 1613313000 | Hex Nut DIN 985-M12X1 |
| 123 | 1904681520 | Split Pin DIN 94-4X22-ST |
| 123 | 2916660010 | Spring retaining ring DIN 472-26X1,2 MM |
| 123 | 3607020263 | Cyl. Roller Bearing |
| 124 | 1618700005 | Hammer Piston |
| 125 | 1613124012 | Piston Pin |
| 126 | 1611030002 | Guide Plate |
| 127 | 1614624002 | Compression Spring |
| 127 | 1614624004 | Compression Spring Ø 36 MM |
| 128 | 1618710009 | Striker |
| 128 | 1618710011 | Striker |
| 129 | 1615806005 | Guide Tube |
| 13 | 2916680009 | Spring Lock Washer B 8 DIN 127 |
| 130 | 2910141246 | Hex Socket Head Cap Screw DIN 912-M8X30-8.8 |
| 131 | 2916680009 | Spring Lock Washer B 8 DIN 127 |
| 132 | 1611038005 | Shim |
| 133 | 1610300017 | Press-In Socket |
| 133 | 1615700003 | Intermediate Flange |
| 134 | 1900210156 | O-Ring 60X4 MM |
| 135 | 1615805033 | Flanged Bearing |
| 136 | 2910140254 | Hex Socket Head Cap Screw M 8X50 DIN 912-8.8 |
| 137 | 2915011109 | Hex Nut DIN 934 M 8 |
| 138 | 2916680009 | Spring Lock Washer B 8 DIN 127 |
| 139 | 1618597005 | Toolholder |
| 14 | 2910021196 | Socket head cap screw DIN 84-AM6X15-8.8 |
| 140 | 1610306007 | Damping Ring |
| 141 | 1610103009 | Plain Washer |
| 141 | 1610206003 | Damping Ring |
| 142 | 1610501010 | Bushing |
| 142 | 1611005001 | Felt Strip |
| 143 | 1618045011 | Retaining Bracket |
| 143 | 1618045015 | Retaining Bracket |
| 15 | 2916060007 | Spring Washer DIN 137-A 6-ST |
| 17 | 1614330004 | Brush Holder |
| 18 | 1614330005 | Brush Holder |
| 19 | 1612300009 | Flat Key |
| 2 | 1614220010 | Pole Shoe 220V |
| 2 | 1614220011 | Pole Shoe 110V |
| 2 | 1614220015 | Field 115V |
| 200 | 1618180000 | Spring Strut |
| 201 | 1610760008 | Guide Tube |
| 202 | 1612123001 | Connecting link |
| 203 | 1614615000 | Compression Spring |
| 204 | 1610700012 | Guide Tube |
| 205 | 1610760009 | Guide Tube |
| 206 | 1613523002 | Stud bolt |
| 207 | 2917760179 | Slotted Spring Pin |
| 208 | 1618040002 | Clamping Piece |
| 209 | 1618040001 | Clamping Piece |
| 21 | 1613412000 | Socket head cap screw |
| 21 | 2910021081 | Socket head cap screw DIN 84-AM3,5X5-8.8 |
| 210 | 1618040004 | Clamping Piece |
| 211 | 1611035002 | Insulating Plate |
| 212 | 2917740094 | Grooved Nail DIN 1477-4X10-ST |
| 213 | 2910150356 | Dummy M 12X70 DIN 912-10.9 |
| 214 | 2916690009 | Spring Lock Washer |
| 215 | 1610700000 | Pivot Pin |
| 216 | 1904681650 | Split Pin DIN 94-5X36-ST |
| 22 | 1614612000 | Compression Spring |
| 24 | 1610502002 | Insulating Washer |
| 25 | 1610119001 | Retaining ring |
| 26 | 1615805013 | Flanged Bearing |
| 27 | 1600108008 | Felt Disc |
| 28 | 1616328001 | Cylindrical Gear Z=33/49 |
| 29 | 1900900118 | Magneto Ball Bearing DIN 615-E 10 Tm |
| 3 | 2912051237 | Set screw DIN 417-M8X15-5.8 |
| 30 | 1610101600 | Shim Thick 0,2 MM |
| 30 | 1610101601 | Shim Thick 0,1 MM |
| 35 | 1616110006 | Eccentric Shaft |
| 36 | 2916730011 | Rotary shaft lip seal DIN 6503 20X40X10 |
| 37 | 1610322001 | Spacer Bushing |
| 39 | 1900900305 | Groove ball bearing 6203 DIN 625 |
| 4 | 1614011004 | Armature 220V |
| 4 | 1614011005 | Armature 110V |
| 4 | 1614011006 | Armature 115V |
| 40 | 1710101610 | Shim 0,1 MM |
| 41 | 1616317001 | Cylindrical Gear Z=54 |
| 42 | 1610023001 | Woodruff Key |
| 43 | 1613313000 | Hex Nut DIN 985-M12X1 |
| 44 | 1600101626 | Shim |
| 45 | 1615808001 | Gear Cover R 3/4" |
| 45 | 1615808005 | Gear Cover M 27X2 MM |
| 46 | 1613344001 | Clamping Ring |
| 47 | 2917500391 | Straight Pin 4X5MM |
| 48 | 2910140258 | Hex Socket Head Cap Screw DIN 912-M 8X60-8.8 |
| 49 | 2910141254 | Hex Socket Head Cap Screw DIN 912-M 8X50-8.8 |
| 5 | 1900900114 | Magneto Ball Bearing BO17T M DIN 615 |
| 50 | 2916680009 | Spring Lock Washer B 8 DIN 127 |
| 51 | 1617401000 | Lubric. Head |
| 52 | 1610763001 | Handle |
| 6 | 1610201001 | Intermediate Ring |
| 60 | 1615132002 | Handle |
| 62 | 1614650000 | Extension Spring |
| 64 | 1611321005 | Control Lever |
| 65 | 2912051199 | Set screw DIN 417-M6X18-5.8 |
| 66 | 1603103002 | Bearing bolt |
| 67 | 2917760098 | Coiled Spring Pin DIN 1481-4X18 |
| 68 | 1612098001 | Control Lever |
| 7 | 1900900112 | Magneto Ball Bearing BO15T M DIN 615 |
| 70 | 1612305000 | Latch |
| 71 | 1613103000 | Driving Pin |
| 72 | 2912051193 | Stud M 6X12 DIN 417-5.8 |
| 73 | 1614651000 | Coiled Spring |
| 74 | 1612026900 | Control Lever |
| 75 | 1612026001 | Control Lever |
| 76 | 2917760098 | Coiled Spring Pin DIN 1481-4X18 |
| 77 | 2917500154 | Straight Pin 6 H 8X28 DIN 7 |
| 78 | 1615500058 | Sealing cap |
| 79 | 1614461007 | Power supply cord |
| 79 | 1614461010 | Elec. Cable W/Connection |
| 8 | 1610101602 | Shim Thick 0,1 MM |
| 8 | 1610101603 | Shim Thick 0,2 MM |
| 8 | 1610222001 | Guide Bushing |
| 80 | 1614482003 | Connector Plug |
| 81 | 1600703013 | Grommet |
| 81 | 1610306002 | Rubber Bushing |
| 82 | 6288375150 | Power supply cord |
| 83 | 1610703011 | Grommet |
| 84 | 1601302002 | Fastening Clamp |
| 85 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 86 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 87 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 89 | 1600102006 | Plain Washer |
| 9 | 1615850002 | Commutator End Shield |
| 90 | 1600328027 | Guide Sleeve |
| 91 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 92 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 93 | 2330100002 | Plain Washer |
| 94 | 1600136001 | Fixing plate |
| 95 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 96 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
