Bosch 0611201001

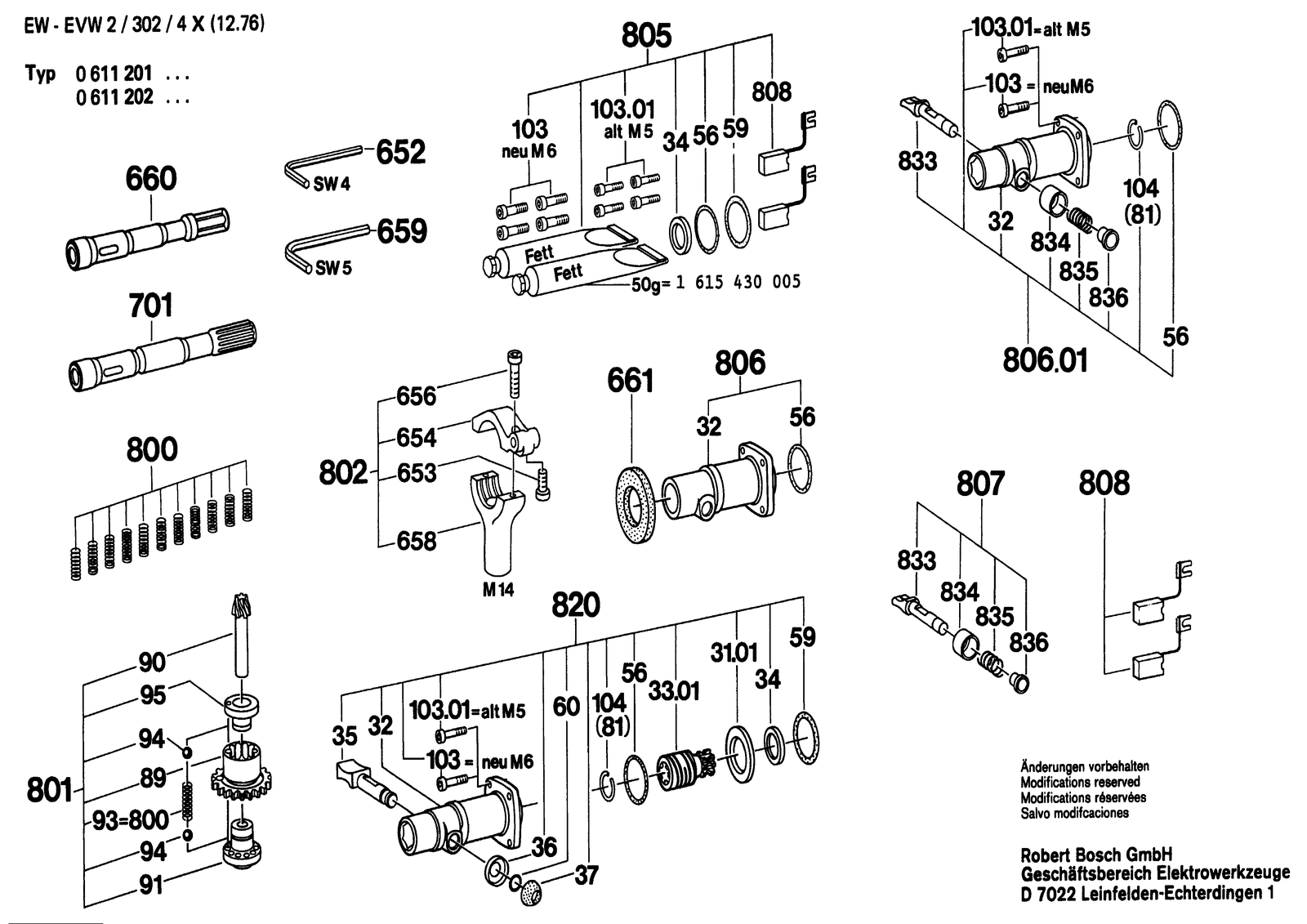

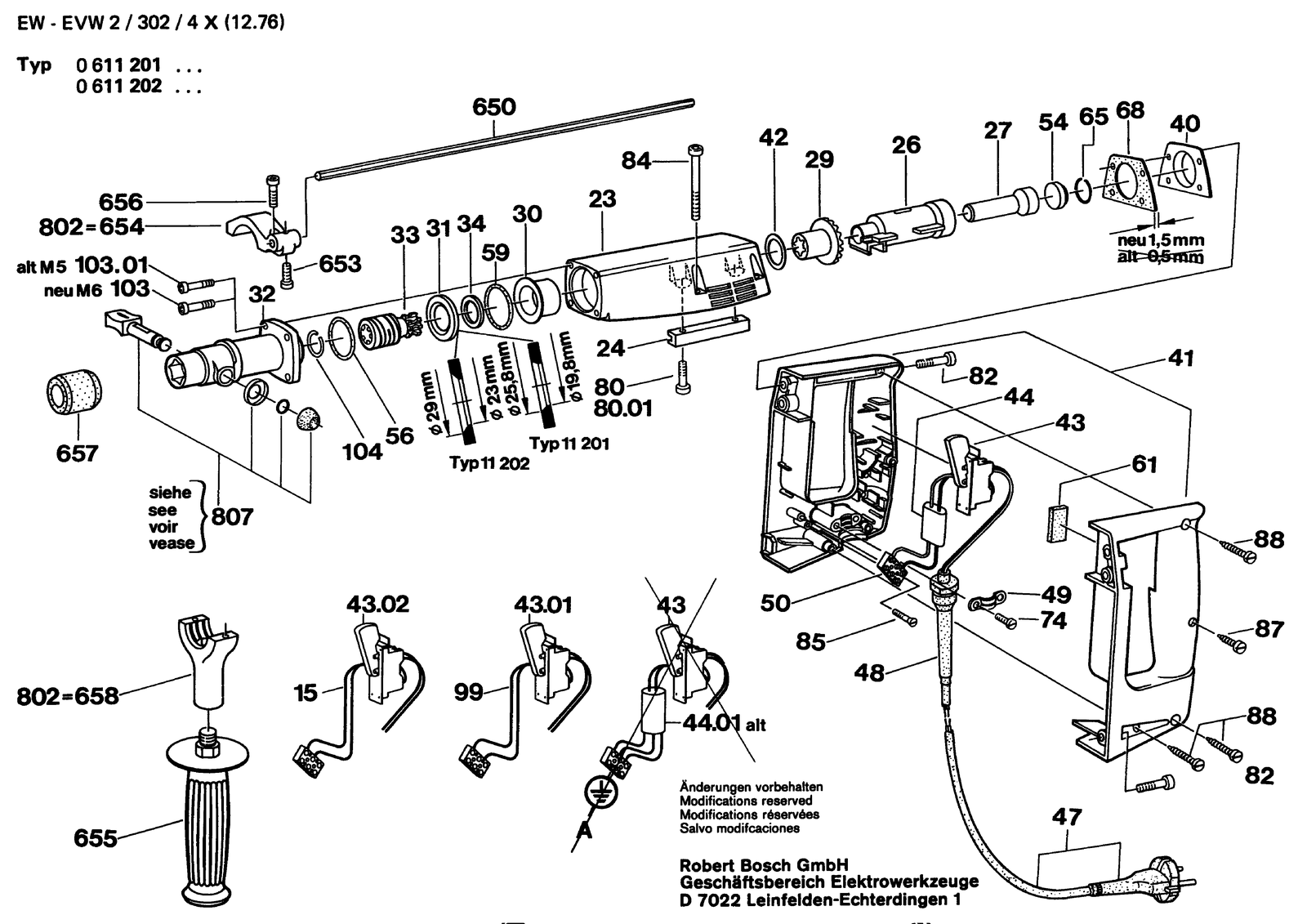

Bosch 0611201001 rotary hammer: exploded parts diagram, 3 sheets, 196 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0611201001: 196 positions on 3 sheets
Bosch 0611201001 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1615102052 | Motor Housing |
| 1 | 1615102052 | Motor Housing |
| 10 | 1615500123 | Housing Cover |
| 10 | 1615500123 | Housing Cover |
| 102 | 1611331007 | Tab Washer |
| 102 | 1611331007 | Tab Washer |
| 103 | 2910141199 | Hex Socket Head Cap Screw DIN 912-M6X18-8.8 |
| 103 | 1613414005 | Hex Socket Head Cap Screw M5X20 MM |
| 103 | 2910141199 | Hex Socket Head Cap Screw DIN 912-M6X18-8.8 |
| 104 | 2916603012 | Retaining ring 22 DIN 9045 |
| 104 | 2916603012 | Retaining ring 22 DIN 9045 |
| 106 | 1601110058 | Reference Plate Double Insulation |
| 106 | 1601110058 | Reference Plate Double Insulation |
| 12 | 1614652000 | Spiral Spring |
| 12 | 1614652000 | Spiral Spring |
| 13 | 3615500502 | Sealing cap |
| 13 | 3615500502 | Sealing cap |
| 16 | 1615820045 | Bearing Housing |
| 16 | 1615820045 | Bearing Housing |
| 17 | 1610910044 | Needle bearing |
| 17 | 1610910044 | Needle bearing |
| 19 | 1610910048 | Needle bearing |
| 19 | 1610910048 | Needle bearing |
| 2 | 1614220040 | Field 110V |
| 2 | 1614220041 | Field 115V |
| 2 | 1614220042 | Field 220-230V |
| 2 | 1614220043 | Field 240V |
| 2 | 1609202912 | Assembly Of Service Parts |
| 2 | 1614220039 | Pole Shoe 42V |
| 2 | 1614220042 | Field 220-230V |
| 2 | 1614220043 | Field 240V |
| 20 | 1616110013 | Eccentric Shaft Z=46 |
| 20 | 1616110013 | Eccentric Shaft Z=46 |
| 21 | 1616317013 | Cylindrical Gear Z=18 |
| 21 | 1616317013 | Cylindrical Gear Z=18 |
| 22 | 1610300043 | Bushing |
| 22 | 1610300043 | Bushing |
| 23 | 1615806017 | Gear Housing |
| 23 | 1615806017 | Gear Housing |
| 24 | 1612317003 | Guide Rail |
| 24 | 1612317003 | Guide Rail |
| 26 | 1618700033 | Hammer Piston |
| 26 | 1618700033 | Hammer Piston |
| 27 | 1618710030 | Striker |
| 27 | 1618710030 | Striker |
| 3 | 1610205000 | Seal Ring |
| 3 | 1610205000 | Seal Ring |
| 30 | 1610322004 | Spacer Bushing |
| 30 | 1610322004 | Spacer Bushing |
| 31 | 1610120018 | Conical Spring Washer |
| 31 | 1610114012 | Supporting Disc |
| 33 | 1618598037 | Bit holder |
| 33 | 1618598062 | Bit holder |
| 34 | 1610224001 | Retaining snap ring |
| 34 | 1610224001 | Retaining snap ring |
| 4 | 1610910052 | Needle-Roller Bearing |
| 4 | 1610910052 | Needle-Roller Bearing |
| 40 | 1615500194 | Sealing cap |
| 40 | 1615500194 | Sealing cap |
| 41 | 1615133019 | Handle |
| 41 | 1615133019 | Handle |
| 42 | 2100102016 | Carrying Case Ø32XØ25X0,3 MM |
| 42 | 2100102016 | Carrying Case Ø32XØ25X0,3 MM |
| 43 | 1617200017 | On-Off Switch |
| 43 | 1617200017 | On-Off Switch |
| 44 | 1617328002 | Suppression Filter |
| 44 | 1614414006 | Cable |
| 44 | 1617328002 | Suppression Filter |
| 45 | 1610913000 | Thrust Needle Rim |
| 45 | 1610913000 | Thrust Needle Rim |
| 46 | 1610101008 | Thrust Bearing Disc Thick 1,0 MM |
| 46 | 1610101008 | Thrust Bearing Disc Thick 1,0 MM |
| 47 | 1604460092 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 47 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 47 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 47 | 1614460004 | Power supply cord |
| 47 | 1614460006 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 47 | 1614461025 | Elec. Cable W/Connection |
| 47 | 1604460092 | Power supply cord Usa/cdn 2,15M 2 X 2,08MM SJ 14/2 |
| 47 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 47 | 1607000228 | Power supply cord EU 4,15M 2 X 1,5MM H07 Rn-F |
| 47 | 1614420000 | Power supply cord |
| 47 | 1614460004 | Power supply cord |
| 47 | 1614460006 | Power supply cord CH 4,15M 2 X 1,0MM H07 Rn-F |
| 47 | 1614461025 | Elec. Cable W/Connection |
| 48 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 48 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 48 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 48 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 49 | 1601302013 | Fastening Clamp |
| 49 | 1601302014 | Fastening Clamp |
| 5 | 1614011023 | Armature 220-230V |
| 5 | 1614011024 | Armature 110V |
| 5 | 1614011025 | Armature 120V |
| 5 | 1614011026 | Armature 240V |
| 5 | 1614011023 | Armature 220-230V |
| 5 | 1614011024 | Armature 110V |
| 5 | 1614011025 | Armature 120V |
| 5 | 1614011026 | Armature 240V |
| 5 | 1614011027 | Armature 42V |
| 50 | 1901091013 | Socket-Terminal Strip 3X6 MM |
| 50 | 1901091013 | Socket-Terminal Strip 3X6 MM |
| 53 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 53 | 1611110194 | Manufacturer's nameplate |
| 53 | 1611110468 | Manufacturer's nameplate |
| 53 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 53 | 1611110194 | Manufacturer's nameplate |
| 53 | 1611110468 | Manufacturer's nameplate |
| 54 | 1610501031 | Sealing cap |
| 54 | 1610501031 | Sealing cap |
| 56 | 1600210010 | O-Ring 35,0X1,5 MM |
| 56 | 1600210010 | O-Ring 35,0X1,5 MM |
| 57 | 1600102623 | Plain Washer Thick 1,0 MM |
| 57 | 1600102623 | Plain Washer Thick 1,0 MM |
| 58 | 1600150006 | Spring Washer DIN 137-A4 |
| 58 | 1600150006 | Spring Washer DIN 137-A4 |
| 59 | 1610210015 | O-Ring 28,0X6,0 MM |
| 59 | 1610210015 | O-Ring 28,0X6,0 MM |
| 6 | 1615805045 | Flanged Bearing |
| 6 | 1615805045 | Flanged Bearing |
| 61 | 1602381001 | Insulating Strip 33X10X6 MM |
| 61 | 1602381001 | Insulating Strip 33X10X6 MM |
| 62 | 2916660011 | Spring retaining ring DIN 472-28X1,2 MM |
| 62 | 2916660011 | Spring retaining ring DIN 472-28X1,2 MM |
| 64 | 2917721034 | Round-Head Grooved Pin 2X6 DIN 1476-ST |
| 64 | 2917721034 | Round-Head Grooved Pin 2X6 DIN 1476-ST |
| 65 | 2916601014 | Retaining ring 26 DIN 9045 |
| 65 | 2916601014 | Retaining ring 26 DIN 9045 |
| 66 | 1611015006 | Sealing Plate |
| 66 | 1611015006 | Sealing Plate |
| 660 | 1618598038 | Bit holder |
| 67 | 1611015007 | Sealing Plate |
| 67 | 1611015007 | Sealing Plate |
| 68 | 1611015015 | Sealing Plate 1,5 MM |
| 68 | 1611015015 | Sealing Plate 1,5 MM |
| 7 | 1610905000 | Groove ball bearing |
| 7 | 1610905000 | Groove ball bearing |
| 70 | 2915061005 | Hex Nut DIN 985-M8-8 |
| 70 | 2915061005 | Hex Nut DIN 985-M8-8 |
| 74 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 74 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 74 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 74 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 75 | 2910021120 | Socket head cap screw DIN 84-AM4X10-8.8 |
| 75 | 2910021120 | Socket head cap screw DIN 84-AM4X10-8.8 |
| 77 | 2910021176 | Dummy DIN 84-BM5X55-8.8 |
| 77 | 2910021176 | Dummy DIN 84-BM5X55-8.8 |
| 79 | 2910110118 | Pan head screw DIN 85-AM4X8-MS |
| 79 | 2910110118 | Pan head screw DIN 85-AM4X8-MS |
| 8 | 1611038015 | Intermediate Plate |
| 8 | 1611038015 | Intermediate Plate |
| 80 | 1613414005 | Hex Socket Head Cap Screw M5X20 MM |
| 80 | 3603414028 | Hex Socket Head Cap Screw |
| 80 | 1613414005 | Hex Socket Head Cap Screw M5X20 MM |
| 80 | 3603414028 | Hex Socket Head Cap Screw |
| 800 | 1617000022 | Parts Set |
| 800 | 1617000022 | Parts Set |
| 801 | 1616309009 | Cylindrical Gear Z=43/8 |
| 801 | 1616309009 | Cylindrical Gear Z=43/8 |
| 802 | 1617000018 | Wear and Tear Part Set |
| 802 | 1617000010 | Parts Set |
| 802 | 1617000018 | Wear and Tear Part Set |
| 806 | 1618597902 | Toolholder |
| 806 | 1617000016 | Tool Holder Set |
| 807 | 1617000014 | Locking Bolt Set |
| 807 | 1617000014 | Locking Bolt Set |
| 808 | 1617014110 | Carbon-Brush Set |
| 808 | 1617014109 | Carbon Brush |
| 808 | 1617014110 | Carbon-Brush Set |
| 82 | 2910151164 | Hex Socket Head Cap Screw M5X25 DIN 912-10.9 |
| 82 | 2910151164 | Hex Socket Head Cap Screw M5X25 DIN 912-10.9 |
| 820 | 1617031000 | Modification Set |
| 83 | 1617000120 | Parts Set 2 Piece |
| 83 | 1617000120 | Parts Set 2 Piece |
| 84 | 1617000121 | Parts Set |
| 84 | 1617000121 | Parts Set |
| 85 | 2910211007 | Tapping Screw DIN 7971-BZ2,9X16 |
| 85 | 2910211007 | Tapping Screw DIN 7971-BZ2,9X16 |
| 86 | 2910601118 | Tapping Screw DIN 7972-B3,9X13 |
| 86 | 2910601118 | Tapping Screw DIN 7972-B3,9X13 |
| 87 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 87 | 2910211011 | Tapping Screw DIN 7971-BZ3,5X13 |
| 88 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 88 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 89 | 1616309007 | Cylindrical Gear Z=43 |
| 89 | 1616309007 | Cylindrical Gear Z=43 |
| 9 | 1616610044 | Fan |
| 9 | 1616610044 | Fan |
| 91 | 1610320008 | Clutch Element |
| 91 | 1610320008 | Clutch Element |
| 94 | 1903230009 | Ball DIN 5401-5 G28 |
| 94 | 1903230009 | Ball DIN 5401-5 G28 |
| 95 | 1610320009 | Clutch Element |
| 95 | 1610320009 | Clutch Element |
| 99 | 1614437007 | Connecting Cable L=230 MM |
| 99 | 1614437007 | Connecting Cable L=230 MM |
