Bosch 0607958925

Bosch 0607958925 reduction gear: exploded parts diagram, 1 sheet, 30 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607958925: 30 positions on 1 sheet

Bosch 0607958925 parts list (1 sheet)

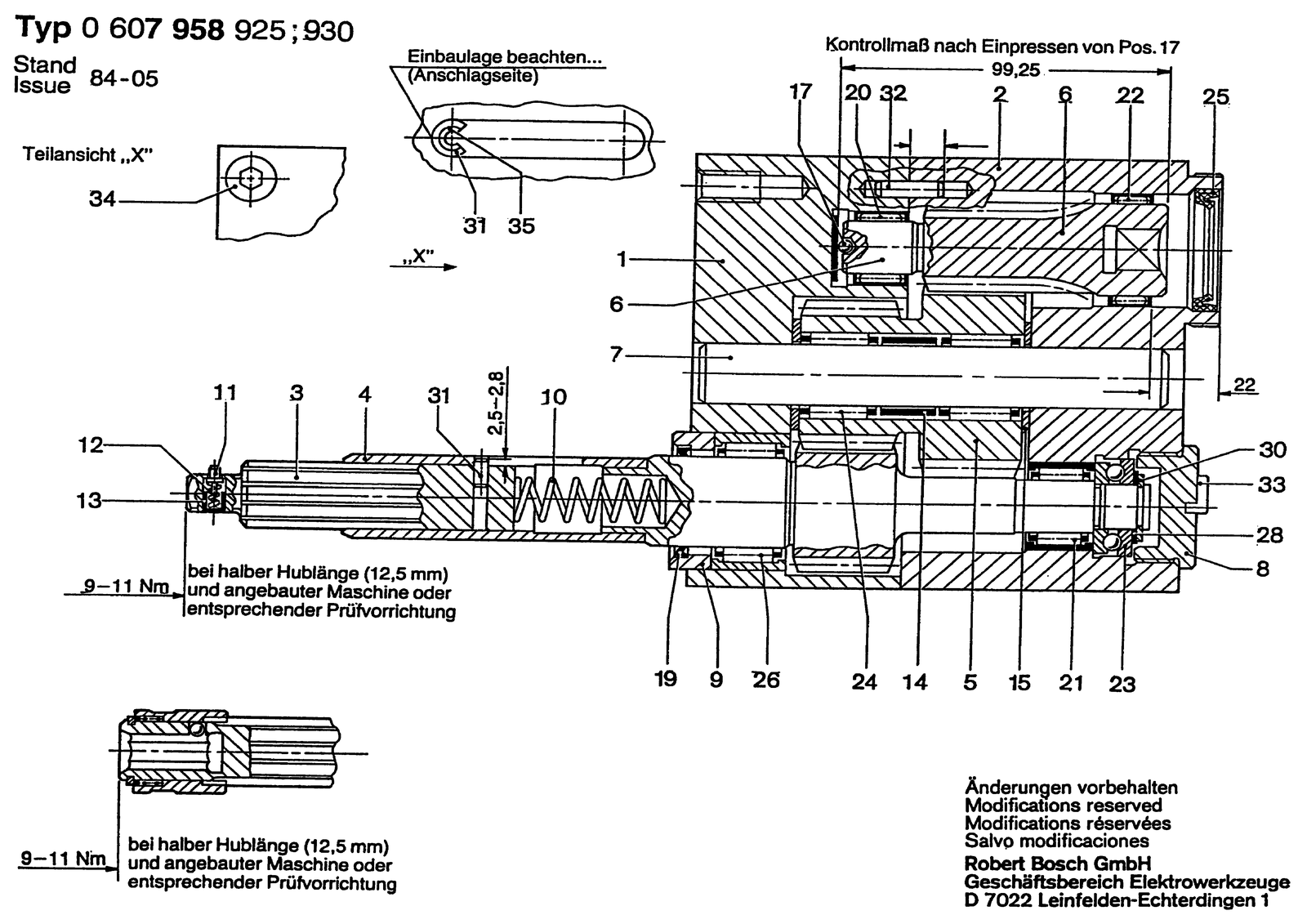

Bosch 0607958925 parts diagram, sheet 1
No.Part numberPart name
13605106010Gear Housing
103604615007Compression Spring
111603124085Detent Pin
121604611019Compression Spring
131600506009Guide Sleeve
143600300007Spacer Ring
153600102011Plain Washer
171903230009Ball DIN 5401-5 G28
193600283012Seal Ring
23605106009Gear Housing
203600917010Needle bearing
213600914011Needle bearing
221610910063Needle bearing Ø30XØ37X12 MM
233600929004D-Groove Ball Thr Bearing
243600913004Needle-Roller Assembly
253600283011Radial Seal
263600910007Needle-Roller Bearing
281610101002Plain Washer Thick 3,0 MM
302916650006Retaining clip DIN 471-15X1-FST
312917760093Slotted Spring Pin 4X8 DIN 1481
322917570124Straight Pin
332910151260Hex Socket Head Cap Screw M 8X70 DIN 912-10.9
342910151266Hex Socket Head Cap Screw M 8X100 DIN 912-10.9
352917760055Coiled Spring Pin DIN 1481-2,5X8
43600700005Hollow Shaft
53606316031Cylindrical Gear Z=24
63606309004Toothed Shaft
73603000002Axle
83603463006Screw Plug
93600202010Locating Ring
