Bosch 0607958842

Bosch 0607958842 angle screwdriver head: exploded parts diagram, 1 sheet, 28 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607958842: 28 positions on 1 sheet

Bosch 0607958842 parts list (1 sheet)

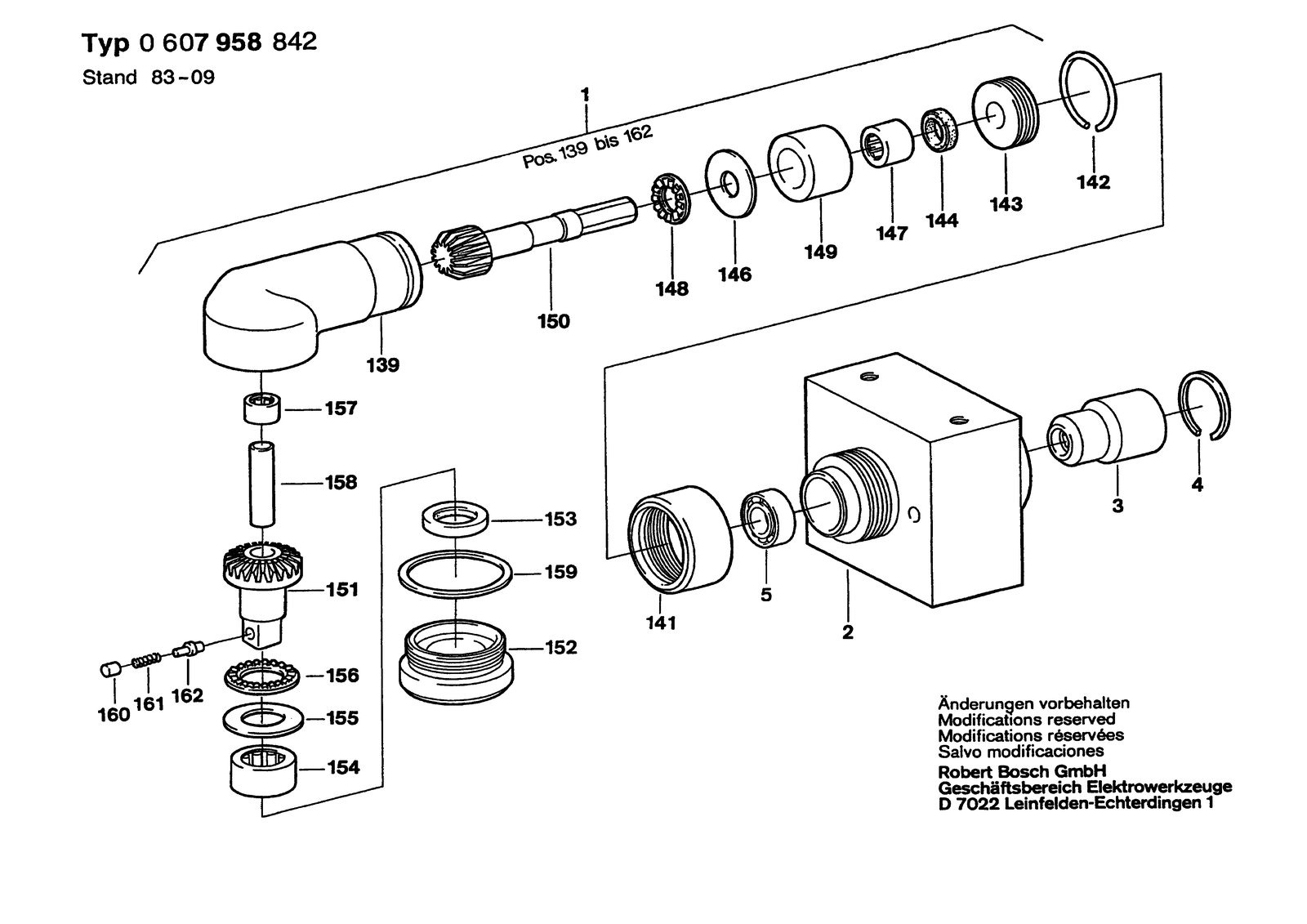

Bosch 0607958842 parts diagram, sheet 1
No.Part numberPart name
13607020041Angle Screwdriver Head
1393605106008Spindle Housing
1413603342002Union Nut
1421614601009Retaining ring DIN 9045-24
1433603344011Threaded Ring
1441600283003Rotary shaft lip seal
1463600100096Support Disc
1471610910057Needle bearing Ø8XØ12X10 MM
1483600929003Roller Thrust Bearing
1493600300006Bearing Sleeve
1503606333029Bevel Gear Z=10
1513606334019Crown Gear Z=14
1523603462006Bearing Flange
1533600283013Radial Seal
1542600914016Needle bearing Ø 12 MM
1553600101015Support Disc
1563600929005Roller Thrust Bearing
1579001140359Needle bearing
1583603120003Bearing bolt
1593600102010Shim
1593600102012Shim
1603600320016Guide Sleeve
1611604611004Compression Spring
1621603124060Pressure Spindle
23605190102Clamping Support
33606455031Clutch Element
43600224013Retaining ring
51280905004Groove ball bearing
