Bosch 0607958821

Bosch 0607958821 spindle bearing: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607958821: 21 positions on 1 sheet

Bosch 0607958821 parts list (1 sheet)

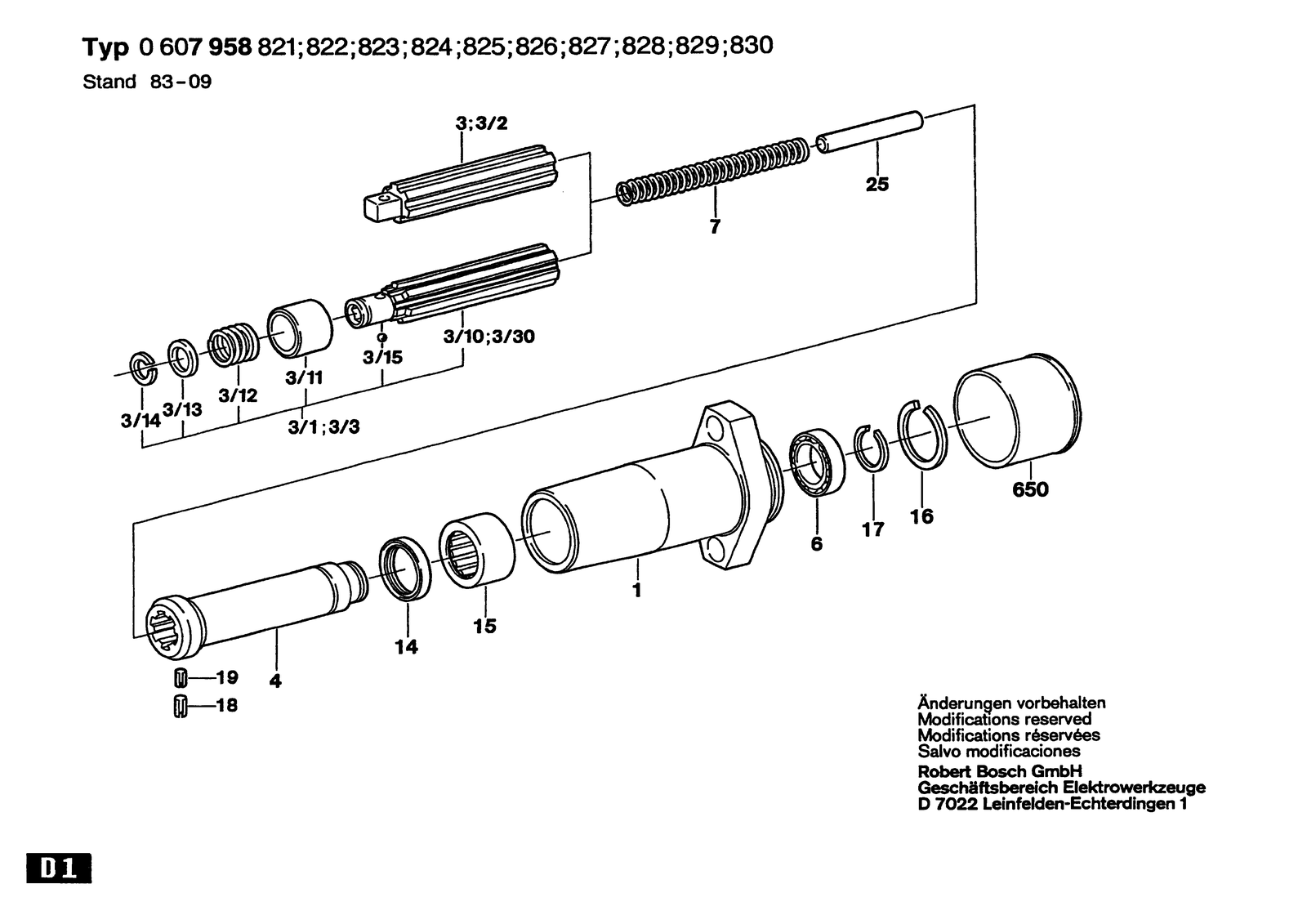

Bosch 0607958821 parts diagram, sheet 1
No.Part numberPart name
13605806043Spindle Housing
151600910017Needle bearing
163600224014Retaining ring
173600118002Retaining ring
182917760073Slotted Spring Pin 3X5 DIN 1481
192917760033Slotted Spring Pin 2X5 DIN 1481
252917680128Half-Length Grooved Pin DIN 1474-5X30-ST
252917680134Half-Length Grooved Pin DIN 1474-5X50-ST
33603161020Splined Shaft
33603161021Splined Shaft
33603161022Splined Shaft
33603161023Splined Shaft
43600700010Hollow Shaft
43600700011Hollow Shaft
43600700012Hollow Shaft
43600700013Hollow Shaft
43600700014Hollow Shaft
63600900009Groove ball bearing
6503600508006Protective Cap
73604610021Compression Spring
73604611015Compression Spring
