Bosch 0607958808

Bosch 0607958808 reduction gear: exploded parts diagram, 1 sheet, 40 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607958808: 40 positions on 1 sheet

Bosch 0607958808 parts list (1 sheet)

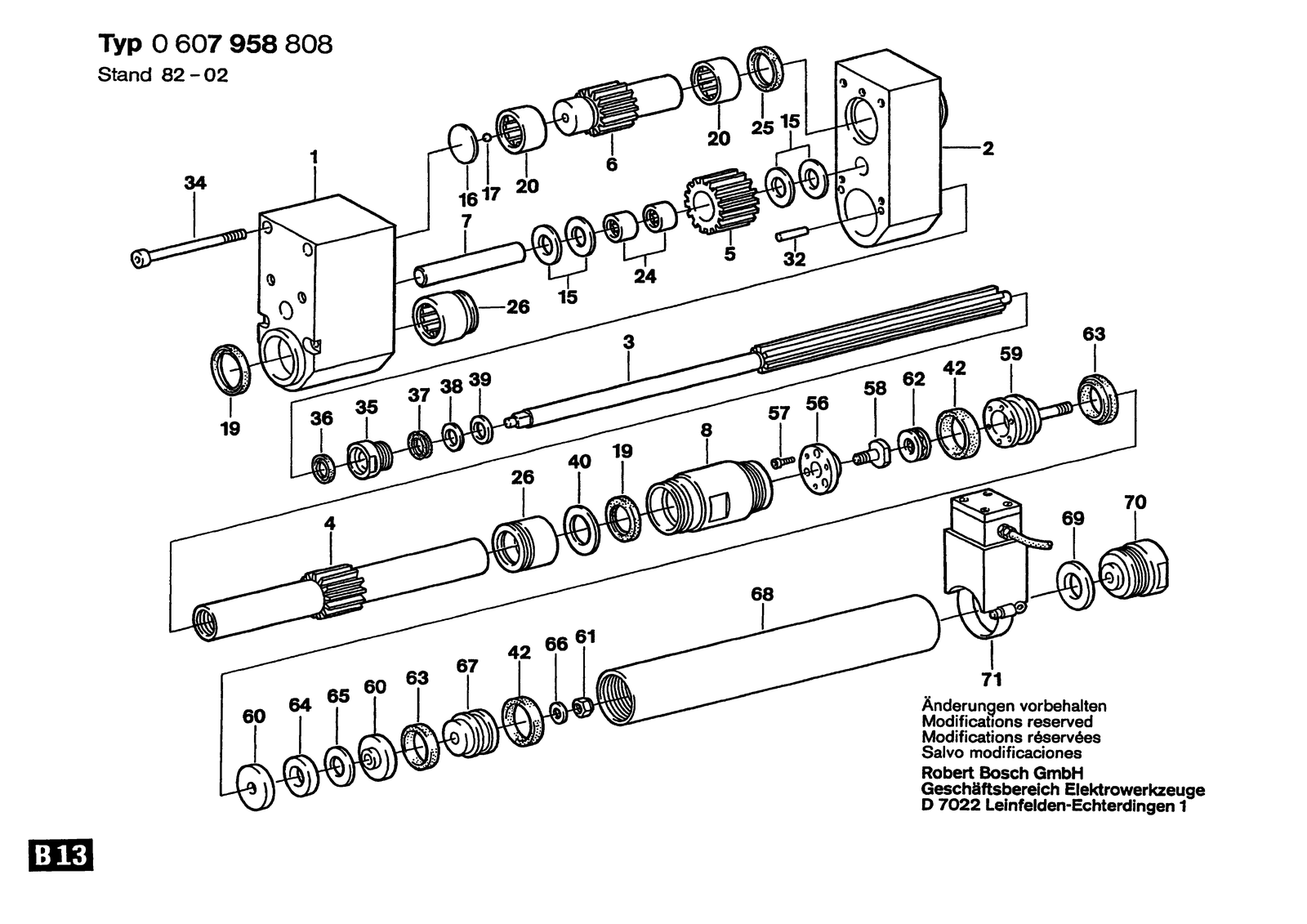

Bosch 0607958808 parts diagram, sheet 1
No.Part numberPart name
13605106015Gear Housing
153600101018Supporting Disc
163600000005Friction Washer
171903230009Ball DIN 5401-5 G28
193600283017Radial Seal
23605106016Gear Housing
203600917003Needle bearing
243600917011Needle bearing
253600283016Radial Seal 28X35X4
263600929006D-Groove Ball Thr Bearing
33603161006Splined Shaft
322917500149Straight Pin DIN7-6H8X20-C35K-RIKO
342910151221Hex Socket Head Cap Screw DIN 912-M6X80-10.9
353600362003Bushing
363600283015Radial Seal
373600290007Seal Ring
383600290008Backup ring
393600101019Supporting Disc
43600700006Hollow Shaft
403600102015Supporting Disc 32X45X0,2MM
423600203000Piston Ring
53606316032Toothed Gear
563600190002Supporting Disc
572910151118Hex Socket Head Cap Screw DIN 912-M4X8-10.9
583603490004Pressure Screw
593603123004Power piston
63606309005Toothed Shaft
603600220010Thrust Ring
612915062005Hex Nut DIN 985-M8-10
623600920000D-Groove Ball Thr Bearing
633600283014Grooved Ring
641824542020Magnet
651820109035Stop Disc
662916011015Plain Washer 8,4 DIN 433-ST
673600320006Power piston
683600700007Cylinder Tube
693600109001Stop Disc
73603100003Axle
703600362004Cylinder Cover
83600365001Cylinder Cover
