Bosch 0607951008

Bosch 0607951008 valve housing: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607951008: 34 positions on 1 sheet

Bosch 0607951008 parts list (1 sheet)

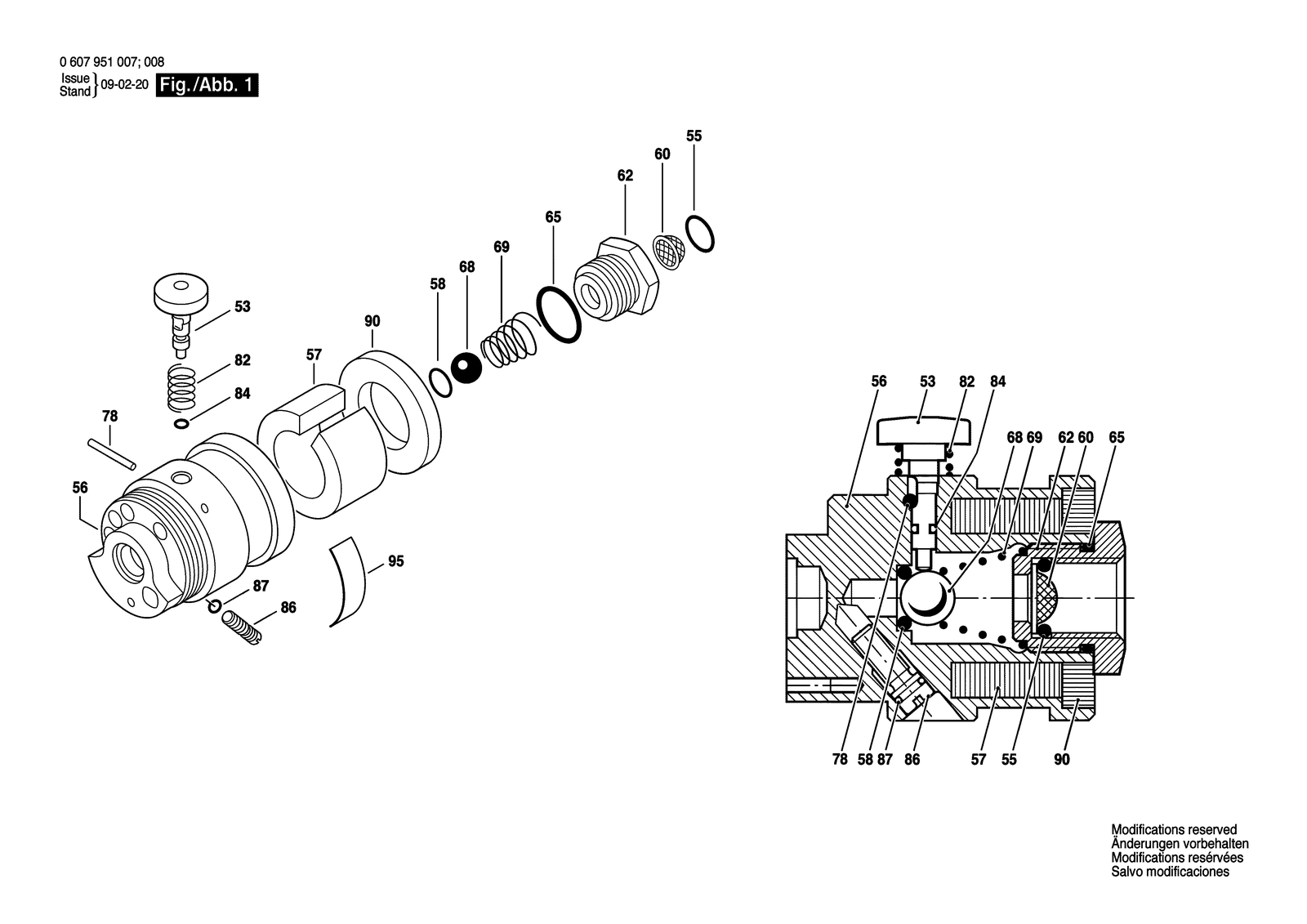

Bosch 0607951008 parts diagram, sheet 1
No.Part numberPart name
533604710072Bolt
533604710072Bolt
551900210306O-Ring 10X2 MM
551900210306O-Ring 10X2 MM
563605190196Valve Housing
563605190197Valve Housing
573601010002Silencer
573601010002Silencer
583600210126O-Ring 6,0X2,5 MM
583600210126O-Ring 6,0X2,5 MM
603600002000Strainer
603600002000Strainer
623603458018Fitting
623603458018Fitting
653600210036O-Ring 16X1,25 MM
653600210036O-Ring 16X1,25 MM
681903230528Ball DIN 5401-9,5MM-III-ST
681903230528Ball DIN 5401-9,5MM-III-ST
693604616018Compression Spring
693604616018Compression Spring
782917700040Grooved Pin DIN 1475-2X18-ST
782917700040Grooved Pin DIN 1475-2X18-ST
823604643011Compression Spring
823604643011Compression Spring
841600210046O-Ring 3,0X1,0 MM
841600210046O-Ring 3,0X1,0 MM
863603435048Adjusting Screw
863603435048Adjusting Screw
873600210015O-Ring 4,0X1,0 MM
873600210015O-Ring 4,0X1,0 MM
903600105002Silencer
903600105002Silencer
95160111A3HFNameplate
95160111A3HFNameplate
