Bosch 0607951003

Bosch 0607951003 valve housing: exploded parts diagram, 1 sheet, 18 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607951003: 18 positions on 1 sheet

Bosch 0607951003 parts list (1 sheet)

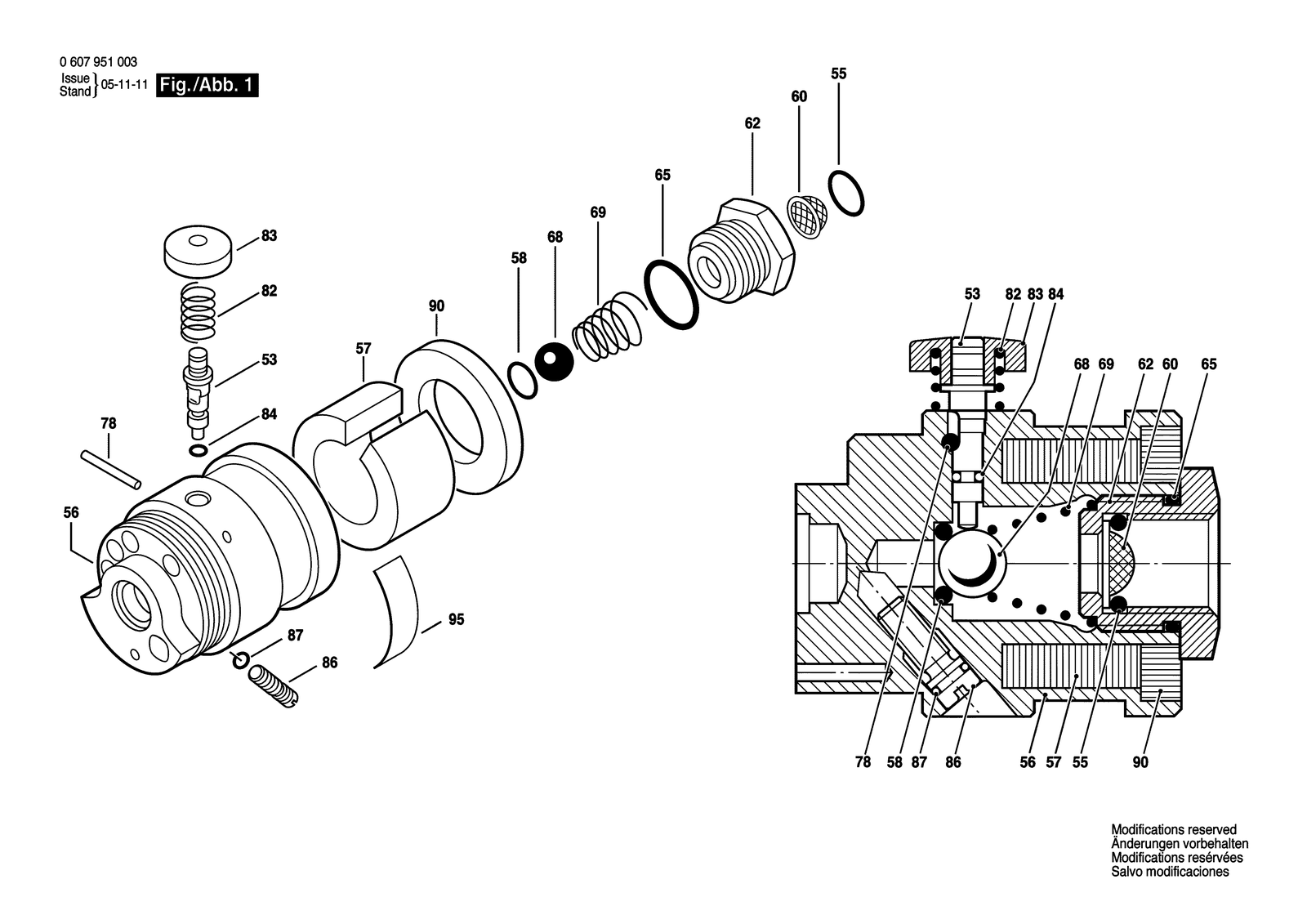

Bosch 0607951003 parts diagram, sheet 1
No.Part numberPart name
533604710070Bolt
551900210306O-Ring 10X2 MM
563605190192Valve Housing
573601010002Silencer
583600210126O-Ring 6,0X2,5 MM
603600002000Strainer
623603458018Fitting
653600210036O-Ring 16X1,25 MM
681903230528Ball DIN 5401-9,5MM-III-ST
693604616018Compression Spring
782917700040Grooved Pin DIN 1475-2X18-ST
823604643011Compression Spring
831603231013Push-Button
843600210105O-Ring 1,8X1,2 MM
863603435048Adjusting Screw
873600210015O-Ring 4,0X1,0 MM
903600105002Silencer
95160111A3HFNameplate
