Bosch 0607950924

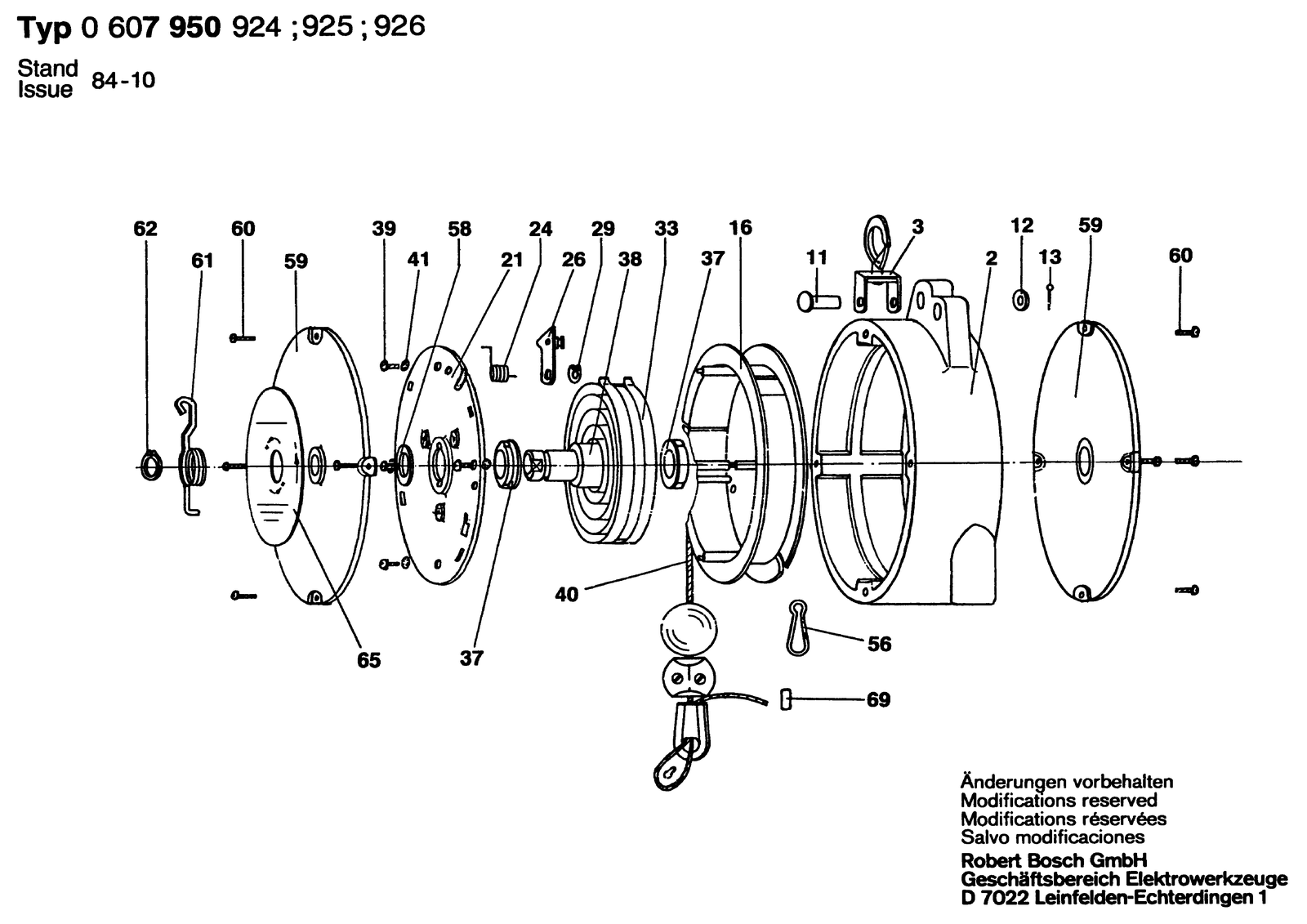

Bosch 0607950924 spring pull: exploded parts diagram, 1 sheet, 72 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607950924: 72 positions on 1 sheet
Bosch 0607950924 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 11 | 3609200345 | Pivot Pin |
| 11 | 3609200345 | Pivot Pin |
| 11 | 3609200345 | Pivot Pin |
| 12 | 2916011016 | Plain Washer DIN 125-A 8,4-ST |
| 12 | 2916011016 | Plain Washer DIN 125-A 8,4-ST |
| 12 | 2916011016 | Plain Washer DIN 125-A 8,4-ST |
| 13 | 1904681191 | Split Pin 2X14 DIN 94-ST |
| 13 | 1904681191 | Split Pin 2X14 DIN 94-ST |
| 13 | 1904681191 | Split Pin 2X14 DIN 94-ST |
| 16 | 3609200402 | Rope Drum |
| 16 | 3609200402 | Rope Drum |
| 16 | 3609200402 | Rope Drum |
| 2 | 3609200442 | Housing |
| 2 | 3609200442 | Housing |
| 2 | 3609200442 | Housing |
| 21 | 3609200401 | Cover Plate |
| 21 | 3609200401 | Cover Plate |
| 21 | 3609200401 | Cover Plate |
| 24 | 3609200346 | Coiled Spring |
| 24 | 3609200346 | Coiled Spring |
| 24 | 3609200346 | Coiled Spring |
| 26 | 3609200382 | Locking Lever |
| 26 | 3609200382 | Locking Lever |
| 26 | 3609200382 | Locking Lever |
| 29 | 2916640003 | Spring retaining ring DIN 471-6X0,7-FST |
| 29 | 2916640003 | Spring retaining ring DIN 471-6X0,7-FST |
| 29 | 2916640003 | Spring retaining ring DIN 471-6X0,7-FST |
| 3 | 3609200385 | Hook |
| 3 | 3609200385 | Hook |
| 3 | 3609200385 | Hook |
| 33 | 3609200404 | Spiral Spring |
| 33 | 3609200405 | Spiral Spring |
| 33 | 3609200406 | Spiral Spring |
| 37 | 3609200347 | Spacer Bushing |
| 37 | 3609200347 | Spacer Bushing |
| 37 | 3609200347 | Spacer Bushing |
| 38 | 3609200407 | Axle |
| 38 | 3609200407 | Axle |
| 38 | 3609200407 | Axle |
| 39 | 2910641118 | Oval-Head Screw DIN 7985-M4X8-4.8 |
| 39 | 2910641118 | Oval-Head Screw DIN 7985-M4X8-4.8 |
| 39 | 2910641118 | Oval-Head Screw DIN 7985-M4X8-4.8 |
| 40 | 3609200384 | Cable control |
| 40 | 3609200384 | Cable control |
| 40 | 3609200384 | Cable control |
| 41 | 2916030006 | Toothed lock washer DIN 6797-A4,3-FST |
| 41 | 2916030006 | Toothed lock washer DIN 6797-A4,3-FST |
| 41 | 2916030006 | Toothed lock washer DIN 6797-A4,3-FST |
| 56 | 3609200477 | Spring Hook |
| 56 | 3609200477 | Spring Hook |
| 56 | 3609200477 | Spring Hook |
| 58 | 3609200348 | Plain Washer |
| 58 | 3609200348 | Plain Washer |
| 58 | 3609200348 | Plain Washer |
| 59 | 3609200441 | Housing Cover |
| 59 | 3609200441 | Housing Cover |
| 59 | 3609200441 | Housing Cover |
| 60 | 3609200349 | Oval-Head Screw |
| 60 | 3609200349 | Oval-Head Screw |
| 60 | 3609200349 | Oval-Head Screw |
| 61 | 3609200403 | Brake Spring |
| 61 | 3609200403 | Brake Spring |
| 61 | 3609200403 | Brake Spring |
| 62 | 2916650007 | Spring retaining ring DIN 471 16X1MM |
| 62 | 2916650007 | Spring retaining ring DIN 471 16X1MM |
| 62 | 2916650007 | Spring retaining ring DIN 471 16X1MM |
| 65 | 3609200446 | Nameplate |
| 65 | 3609200447 | Nameplate |
| 65 | 3609200448 | Nameplate |
| 69 | 3609200478 | Clamping Piece |
| 69 | 3609200478 | Clamping Piece |
| 69 | 3609200478 | Clamping Piece |
