Bosch 0607550181

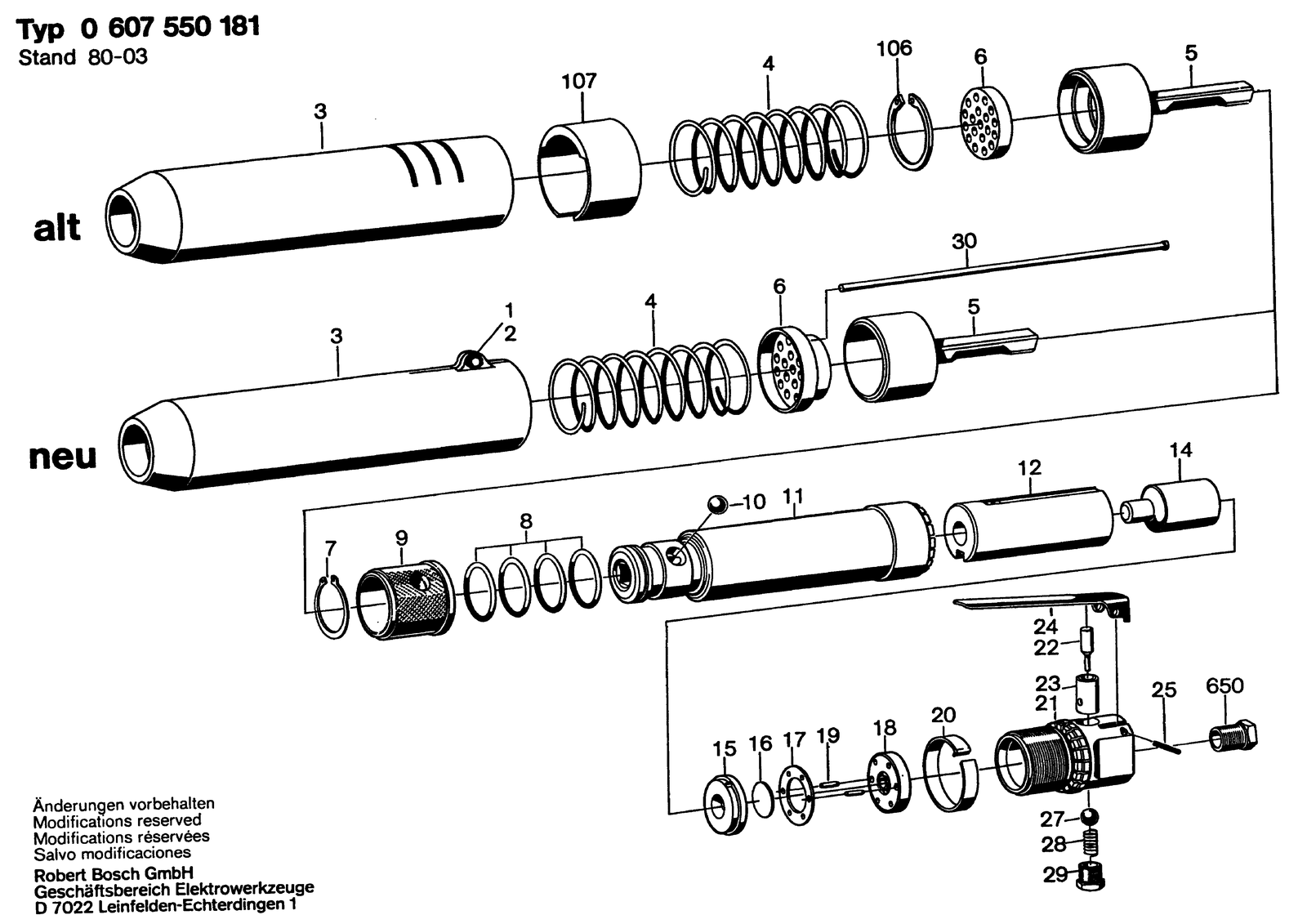

Bosch 0607550181 pneumatic needle descaler: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607550181: 29 positions on 1 sheet
Bosch 0607550181 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2910141242 | Hex Socket Head Cap Screw DIN 912-M8X20-8.8 |
| 10 | 1903230532 | Ball 11,1 MMIIIDIN5401ST |
| 11 | 1609300749 | Motor Housing |
| 12 | 1609300747 | Cylinder housing |
| 14 | 1609300746 | Striker |
| 15 | 1609300742 | Shim |
| 16 | 1609300743 | Shim |
| 17 | 1609300744 | Sealing disk |
| 18 | 1609300745 | Sealing disk |
| 19 | 1609300758 | Control Pin |
| 2 | 2916680009 | Spring Lock Washer B 8 DIN 127 |
| 20 | 1609300413 | Cover Ring |
| 21 | 1609300741 | Valve Housing |
| 22 | 1609300739 | Bolt |
| 23 | 1609300738 | Guide Bushing |
| 24 | 1609300707 | Control Lever |
| 25 | 1609300763 | Slotted Spring Pin |
| 27 | 1903230528 | Ball DIN 5401-9,5MM-III-ST |
| 28 | 1609300571 | Compression Spring |
| 29 | 1609300740 | Stop Screw |
| 3 | 1609300752 | Pressure Tube |
| 30 | 1607000027 | Parts Set |
| 4 | 1609300756 | Compression Spring |
| 5 | 1609300866 | Toolholder |
| 6 | 1609300867 | Perforated Panel |
| 650 | 1609300760 | Fitting |
| 7 | 2916650017 | Spring retaining ring DIN 471 30X1,5 MM |
| 8 | 1609300762 | Seal Ring |
| 9 | 1609300748 | Clamping Sleeve |
