Bosch 0607503100

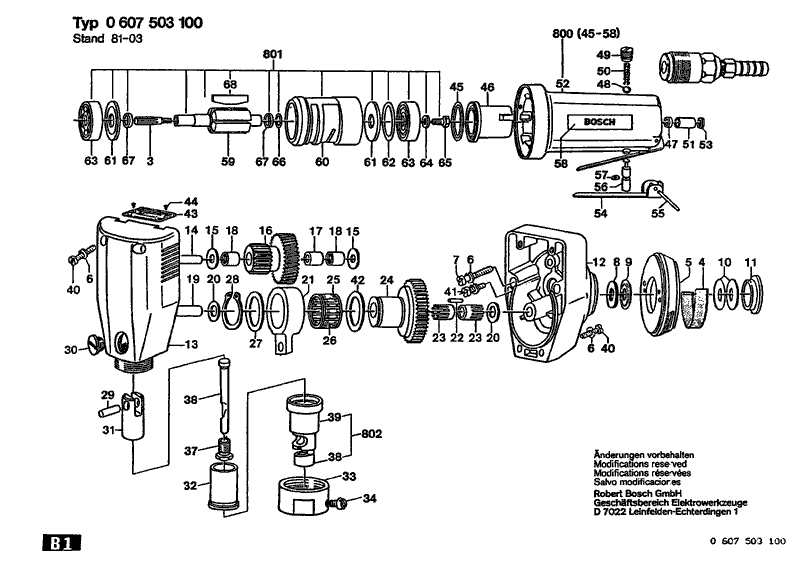

Bosch 0607503100 nibbler: exploded parts diagram, 1 sheet, 66 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607503100: 66 positions on 1 sheet
Bosch 0607503100 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2600550009 | Disc Spring |
| 11 | 2600221000 | Thrust Ring |
| 12 | 2605700029 | Bearing Flange |
| 13 | 2605806019 | Gear Housing |
| 14 | 2603100031 | Bearing bolt |
| 15 | 2600100628 | Shim 0,5 MM |
| 16 | 2606328902 | Cylindrical Gear Z=24/41 |
| 17 | 2600309003 | Spacer Bushing |
| 18 | 2600914004 | Needle bearing |
| 19 | 2603100032 | Spring Pin |
| 20 | 2600100563 | Shim 0,5 MM |
| 21 | 2602001006 | Connecting Rod |
| 22 | 1903201000 | Needle Roller 2X7,8 G 2 DIN 5402 |
| 23 | 2600913033 | Needle-Roller Cage |
| 24 | 2606300016 | Cylindrical Gear Z=58 |
| 25 | 2600913032 | Needle-Roller Cage |
| 26 | 1903201001 | Needle Roller 2X9,8 G2 DIN 5402 |
| 27 | 2600102029 | Shim 0,8 MM |
| 28 | 2916650012 | Spring retaining ring 22X1,2 DIN 471 |
| 29 | 2603100003 | Bearing bolt |
| 3 | 2606302017 | Pinion |
| 30 | 2603463001 | Screw Plug |
| 31 | 2603104001 | Power piston |
| 32 | 2600422005 | Bushing |
| 33 | 2603314016 | Union Nut |
| 34 | 2910021148 | Socket head cap screw DIN 84-AM5X6-8.8 |
| 37 | 2603455006 | Hollow Bolt |
| 38 | 2608639013 | Nibbling Punch |
| 4 | 2601010050 | Damping Plate |
| 40 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 41 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 42 | 2600102028 | Shim |
| 43 | 2601106041 | Nameplate |
| 44 | 3603133000 | Grooved Nail |
| 45 | 2600206006 | Seal Ring |
| 46 | 2600508020 | Seal Ring |
| 47 | 2600206004 | Seal Ring |
| 48 | 1903230024 | Ball 7,5 MM IIIDIN5401-ST |
| 49 | 3603463009 | Screw Plug |
| 5 | 2605700130 | Fastening Flange |
| 50 | 2604610016 | Compression Spring |
| 51 | 2600309000 | Mounting Device |
| 52 | 2605110051 | Motor Housing |
| 53 | 2600002006 | Strainer |
| 54 | 2601902000 | Control Lever |
| 55 | 2917500083 | Straight Pin DIN 7-3H8X24-ST |
| 56 | 2603105006 | Locking Bolt |
| 57 | 2600210007 | O-Ring 2,4X1,9 MM |
| 58 | 1601110013 | Manufacturer's nameplate |
| 59 | 2604090010 | Rotor |
| 6 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 60 | 2605110020 | Stator |
| 61 | 2600114002 | Adaptor plate |
| 62 | 2600102626 | Shim |
| 63 | 1900905315 | Groove ball bearing 6300-Z/C3 DIN 625 |
| 64 | 2600100070 | Shim washer |
| 65 | 2911051191 | Hex Screw M 6X10 DIN 933-8.8 |
| 66 | 2600101621 | Shim |
| 67 | 2600200007 | Spacer Ring |
| 68 | 2601073000 | Rotor Lamella |
| 7 | 2910021130 | Socket head cap screw DIN 84-AM4X20-8.8 |
| 8 | 2600108011 | Seal Ring |
| 800 | 2605110057 | Valve Housing |
| 801 | 2607219008 | Pneumatic Motor |
| 802 | 2608639900 | Lower Die |
| 9 | 2600500005 | Cupped Washer |
