Bosch 0607500100

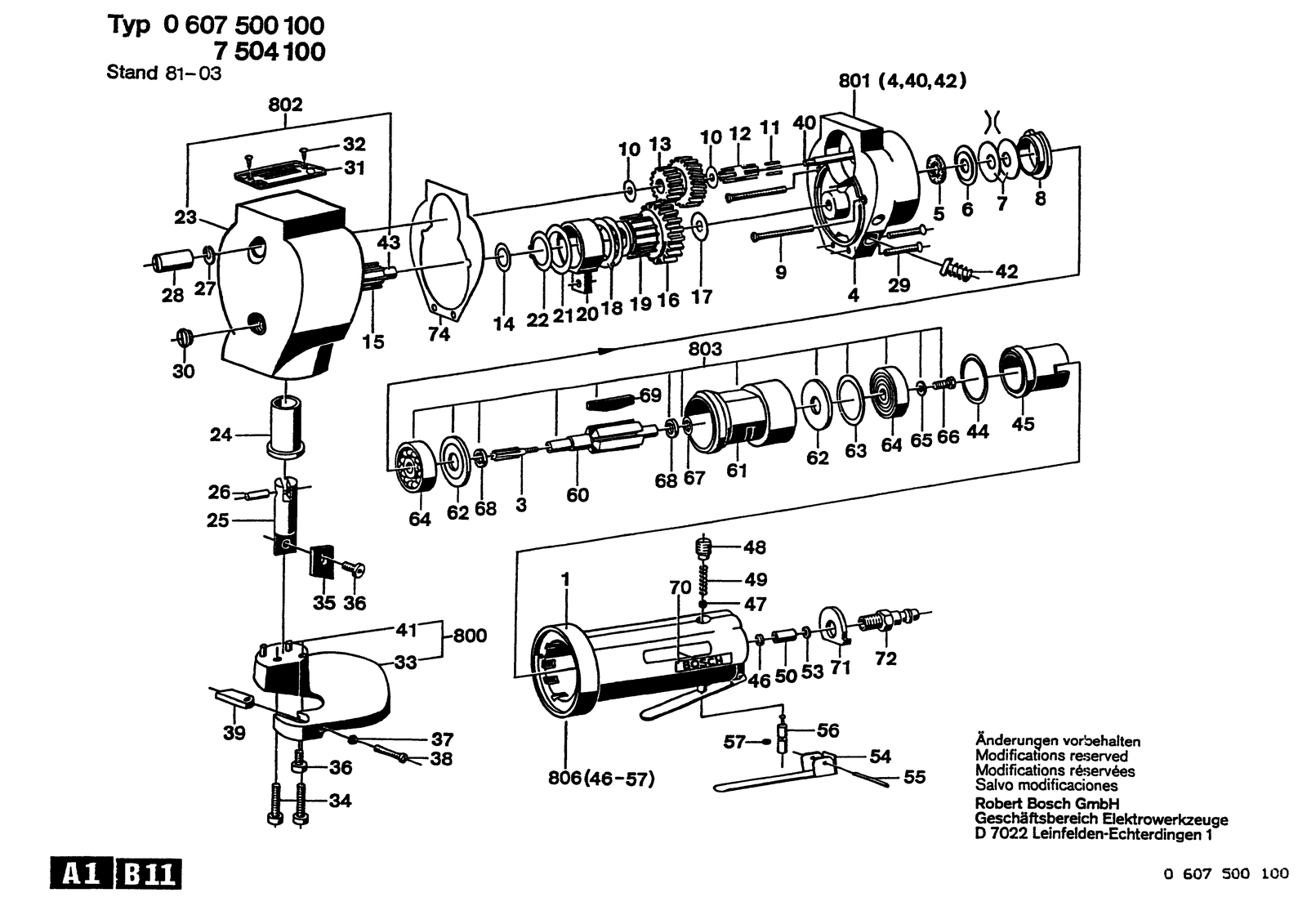

Bosch 0607500100 pneumatic shears: exploded parts diagram, 1 sheet, 71 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607500100: 71 positions on 1 sheet
Bosch 0607500100 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605110051 | Motor Housing |
| 10 | 2600100628 | Shim 0,5 MM |
| 11 | 1903201000 | Needle Roller 2X7,8 G 2 DIN 5402 |
| 12 | 2600913034 | Needle-Roller Cage |
| 13 | 2606328011 | Cylindrical Gear |
| 14 | 2600101601 | Shim |
| 15 | 1903201027 | Holding Belt 2,5X23,8 G2 DIN 5402 |
| 16 | 2606300045 | Eccentric Cog Wheel |
| 17 | 2600100682 | Shim 0,5 MM |
| 18 | 2600102603 | Shim |
| 19 | 1903201521 | Needle Roller |
| 20 | 2602001005 | Connecting Rod |
| 21 | 2600102604 | Shim |
| 22 | 2916650014 | Spring retaining ring DIN 471 25X1,2 |
| 23 | 2605806050 | Housing |
| 24 | 2600322000 | Bushing |
| 25 | 2603070000 | Lifting Rod |
| 26 | 2603100003 | Bearing bolt |
| 27 | 2916690004 | Spring Lock Washer DIN 128-A5-FST |
| 28 | 2603341005 | Cap Nut |
| 29 | 2910781132 | Countersunk-Head Screw M 4X25 DIN 963-8.8 |
| 3 | 2606302014 | Pinion |
| 30 | 2603463001 | Screw Plug |
| 31 | 2601105041 | Nameplate |
| 32 | 3603133000 | Grooved Nail |
| 33 | 2608042020 | Blade Holder |
| 34 | 2910142202 | Hex Socket Head Cap Screw DIN 912-M6X22-8.8 |
| 35 | 2607010031 | Set of knives |
| 36 | 2603414024 | Hex Socket Head Cap Screw |
| 37 | 2915011005 | Hex Nut DIN 934 -M4-M-8 |
| 38 | 2910021128 | Socket head cap screw DIN 84-AM4X18-8.8 |
| 39 | 2607010031 | Set of knives |
| 4 | 2605700177 | Bearing Flange |
| 40 | 2603520000 | Bearing bolt |
| 41 | 2603106002 | Straight Pin |
| 42 | 2606338000 | Silencer |
| 43 | 2603124003 | Bearing bolt |
| 44 | 2600206006 | Seal Ring |
| 45 | 2600508020 | Seal Ring |
| 46 | 2600206004 | Seal Ring |
| 47 | 1903230024 | Ball 7,5 MM IIIDIN5401-ST |
| 48 | 3603463009 | Screw Plug |
| 49 | 2604610016 | Compression Spring |
| 5 | 2600108011 | Seal Ring |
| 50 | 2600309000 | Mounting Device |
| 53 | 2600002006 | Strainer |
| 54 | 2601902000 | Control Lever |
| 55 | 2917500083 | Straight Pin DIN 7-3H8X24-ST |
| 56 | 2603105006 | Locking Bolt |
| 57 | 2600210007 | O-Ring 2,4X1,9 MM |
| 6 | 2600500005 | Cupped Washer |
| 60 | 2604090010 | Rotor |
| 61 | 2605110020 | Stator |
| 62 | 2600114002 | Adaptor plate |
| 63 | 2600102626 | Shim |
| 64 | 1900905315 | Groove ball bearing 6300-Z/C3 DIN 625 |
| 65 | 2600100070 | Shim washer |
| 66 | 2911051191 | Hex Screw M 6X10 DIN 933-8.8 |
| 67 | 2600101621 | Shim |
| 68 | 2600200007 | Spacer Ring |
| 69 | 2601073000 | Rotor Lamella |
| 7 | 2600550009 | Disc Spring |
| 70 | 1601110013 | Manufacturer's nameplate |
| 74 | 3601015001 | Sealing Plate |
| 8 | 2600221000 | Thrust Ring |
| 800 | 2608042010 | Blade Holder |
| 801 | 2605700910 | Clamping-Flange |
| 802 | 2605806047 | Gear Cover |
| 803 | 2607219008 | Pneumatic Motor |
| 806 | 2605110005 | Valve Housing |
| 9 | 2910501138 | Countersunk-Head Screw BM 4X40 DIN 63-5.8 |
