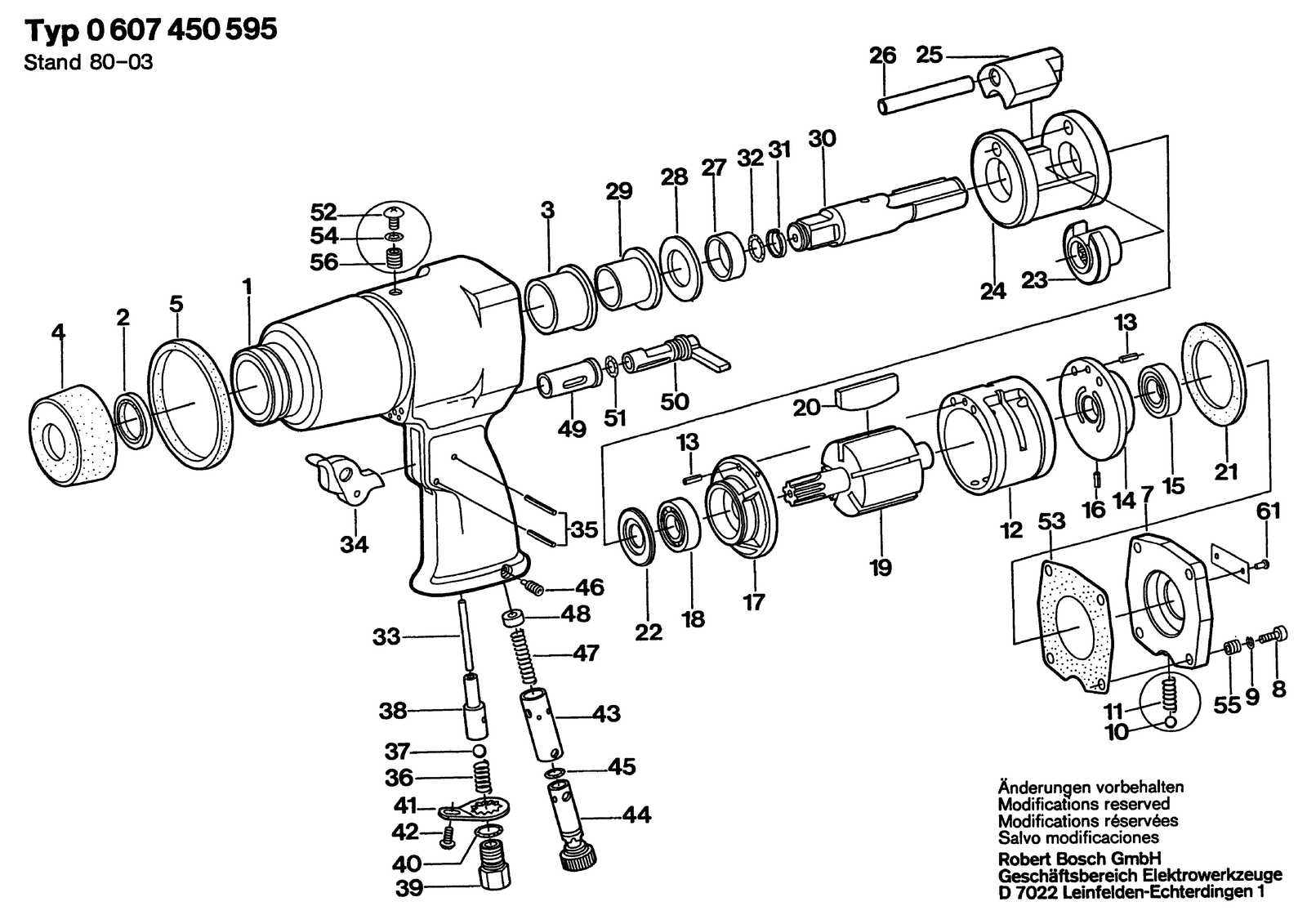

Bosch 0607450595 pneumatic impact wrench: exploded parts diagram, 1 sheet, 56 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607450595: 56 positions on 1 sheet
Bosch 0607450595 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609301234 | Housing |
| 10 | 1609301239 | Ball |
| 11 | 1609301240 | Compression Spring |
| 12 | 1609301241 | Stator |
| 13 | 2917761076 | Clamping Sleeve 3X10 DIN 1481 |
| 14 | 1609301242 | Bearing Flange |
| 15 | 1609301434 | Groove ball bearing |
| 16 | 2917760075 | Slotted Spring Pin 3X8 DIN 1481 |
| 17 | 1609301243 | Bearing Flange |
| 18 | 1609301435 | Groove ball bearing |
| 2 | 1609301314 | Seal Ring |
| 20 | 1609301245 | Rotor Lamella |
| 21 | 1609301246 | Rubber Plate |
| 22 | 1609301247 | Stop Disc |
| 23 | 1609301248 | Carrier |
| 24 | 1609301436 | Striker Holder |
| 25 | 1609301437 | Striker |
| 26 | 1609301251 | Straight Pin |
| 27 | 1609301252 | Bushing |
| 28 | 1609301253 | Stop Disc |
| 29 | 1609301254 | Bushing |
| 3 | 1609301235 | Bushing |
| 30 | 1609301256 | Striker Spindle |
| 31 | 1609301257 | Retaining ring |
| 32 | 1609301315 | O-Ring |
| 33 | 1609301258 | Straight Pin |
| 34 | 1609301259 | Control Lever |
| 35 | 2917760079 | Slotted Spring Pin 3X16 DIN 1481 |
| 35 | 2917760082 | Slotted Spring Pin 3X22 DIN 1481 |
| 36 | 1609301260 | Compression Spring |
| 37 | 1609301261 | Ball |
| 38 | 1609301262 | Valve Bushing |
| 39 | 1609301263 | Fitting |
| 4 | 1609301236 | Protective Cap |
| 40 | 1609301313 | O-Ring |
| 41 | 1609301264 | Locking washer |
| 42 | 1609301318 | Recessed-Head Screw |
| 43 | 1609301265 | Valve Bushing |
| 44 | 1609301266 | Throttle Valve |
| 45 | 1609301316 | O-Ring |
| 46 | 1609301267 | Set screw |
| 47 | 1609301268 | Compression Spring |
| 48 | 1609301269 | Backup ring |
| 49 | 1609301270 | Valve Bushing |
| 5 | 1609301237 | Protective Ring |
| 50 | 1609301271 | Control Valve |
| 51 | 1609301316 | O-Ring |
| 52 | 1609301319 | Cross Recessed-Head Screw |
| 53 | 1609301272 | Sealing Plate |
| 54 | 1609301273 | O-Ring |
| 55 | 1609301274 | Threaded Insert |
| 56 | 1609301275 | Threaded Insert |
| 61 | 2917721034 | Round-Head Grooved Pin 2X6 DIN 1476-ST |
| 7 | 1609301238 | Housing Cover |
| 8 | 2910141199 | Hex Socket Head Cap Screw DIN 912-M6X18-8.8 |
| 9 | 2916690005 | Spring Lock Washer M6 |
