Bosch 0607450591

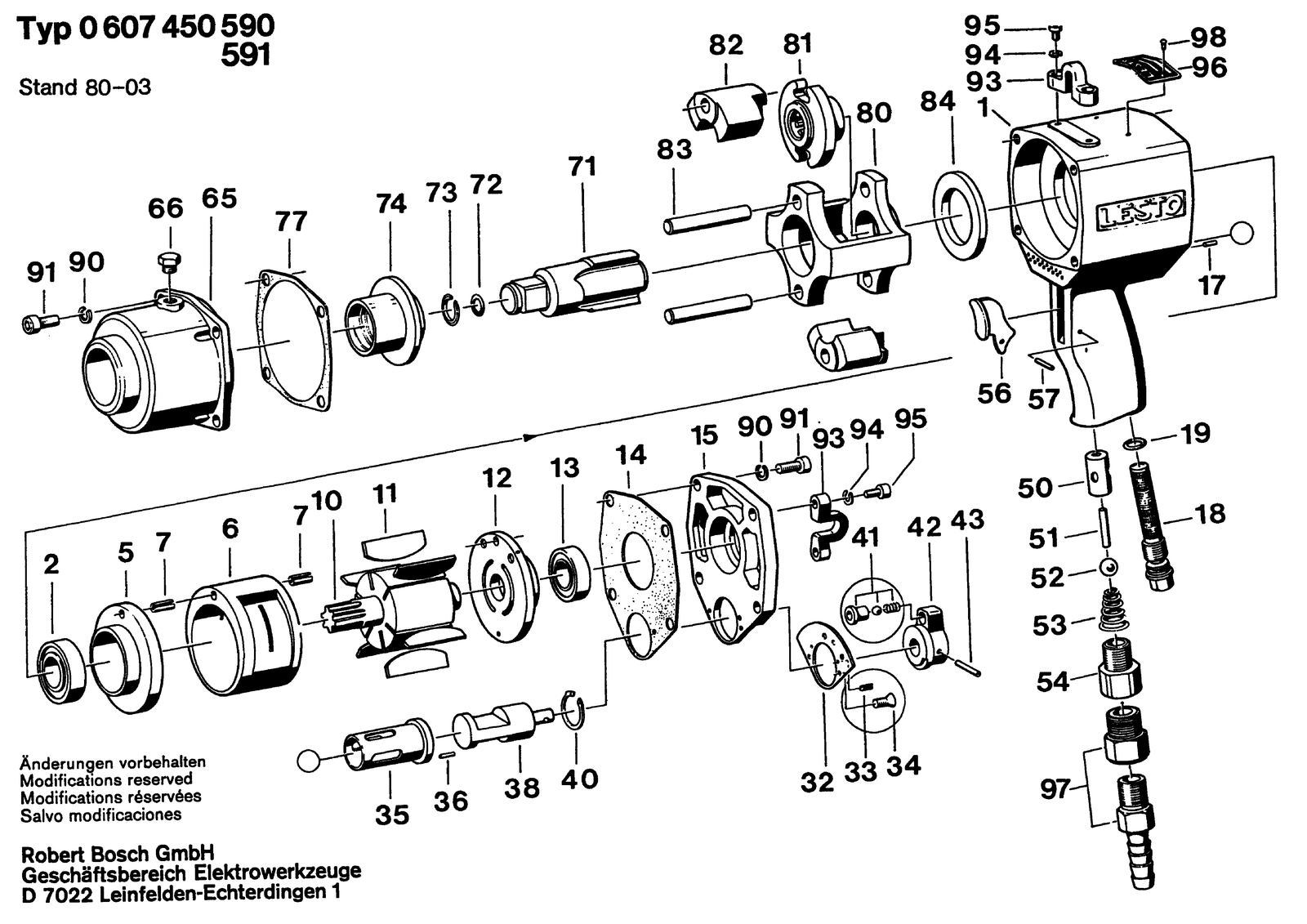

Bosch 0607450591 impact wrench: exploded parts diagram, 1 sheet, 99 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607450591: 99 positions on 1 sheet
Bosch 0607450591 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609301064 | Motor Housing |
| 1 | 1609301064 | Motor Housing |
| 10 | 1609301071 | Rotor |
| 10 | 1609301071 | Rotor |
| 11 | 1609301072 | Rotor Lamella |
| 11 | 1609301072 | Rotor Lamella |
| 12 | 1609301070 | Bearing Flange |
| 12 | 1609301070 | Bearing Flange |
| 13 | 1900905123 | Groove ball bearing 6003-2 Z DIN 625 |
| 13 | 1900905123 | Groove ball bearing 6003-2 Z DIN 625 |
| 14 | 1609301085 | Sealing Plate |
| 14 | 1609301085 | Sealing Plate |
| 15 | 1609301074 | Housing Cover |
| 15 | 1609301074 | Housing Cover |
| 17 | 1609300692 | Straight Pin |
| 17 | 1609300692 | Straight Pin |
| 18 | 1609301090 | Oiler |
| 18 | 1609301090 | Oiler |
| 19 | 1609301054 | Seal Ring |
| 19 | 1609301054 | Seal Ring |
| 2 | 1900905124 | Groove ball bearing 20X42X12 |
| 2 | 1900905124 | Groove ball bearing 20X42X12 |
| 32 | 1609301075 | Notched Plate |
| 32 | 1609301075 | Notched Plate |
| 33 | 1609301050 | Straight Pin |
| 33 | 1609301050 | Straight Pin |
| 34 | 1609301058 | Countersunk-Head Screw |
| 34 | 1609301058 | Countersunk-Head Screw |
| 35 | 1609301066 | Valve Bushing |
| 35 | 1609301066 | Valve Bushing |
| 36 | 1609301049 | Straight Pin |
| 36 | 1609301049 | Straight Pin |
| 38 | 1609301067 | Control Valve |
| 38 | 1609301067 | Control Valve |
| 40 | 1609301057 | Retaining ring |
| 40 | 1609301057 | Retaining ring |
| 41 | 1609301059 | Detent Pin |
| 41 | 1609301059 | Detent Pin |
| 43 | 1609301051 | Slotted Spring Pin |
| 43 | 1609301051 | Slotted Spring Pin |
| 5 | 1609301073 | Bearing Flange |
| 5 | 1609301073 | Bearing Flange |
| 50 | 1609301087 | Valve Bushing |
| 50 | 1609301087 | Valve Bushing |
| 51 | 1609300699 | Straight Pin |
| 51 | 1609300699 | Straight Pin |
| 52 | 1609301213 | Ball |
| 52 | 1609301213 | Ball |
| 53 | 1609301053 | Compression Spring |
| 53 | 1609301053 | Compression Spring |
| 54 | 1609301065 | Fitting |
| 54 | 1609301065 | Fitting |
| 56 | 1609301088 | Control Lever |
| 56 | 1609301088 | Control Lever |
| 57 | 1609300694 | Straight Pin |
| 57 | 1609300694 | Straight Pin |
| 6 | 1609301069 | Stator |
| 6 | 1609301069 | Stator |
| 65 | 1609301076 | Gear Housing |
| 65 | 1609301076 | Gear Housing |
| 66 | 1609301056 | Screw Plug |
| 66 | 1609301056 | Screw Plug |
| 7 | 1609300686 | Slotted Spring Pin |
| 7 | 1609300686 | Slotted Spring Pin |
| 71 | 1609301083 | Striker Spindle |
| 71 | 1609301043 | Striker Spindle |
| 72 | 1609301055 | Seal Ring |
| 72 | 1609301055 | Seal Ring |
| 73 | 1609301084 | Spring Lock Washer |
| 73 | 1609301084 | Spring Lock Washer |
| 74 | 1609301077 | Bushing |
| 74 | 1609301077 | Bushing |
| 77 | 1609301086 | Sealing Plate |
| 77 | 1609301086 | Sealing Plate |
| 80 | 1609301080 | Striker Holder |
| 80 | 1609301080 | Striker Holder |
| 81 | 1609301079 | Carrier |
| 81 | 1609301079 | Carrier |
| 82 | 1609301081 | Striker |
| 82 | 1609301081 | Striker |
| 83 | 1609301082 | Straight Pin |
| 83 | 1609301082 | Straight Pin |
| 84 | 1609301078 | Cover Disc |
| 84 | 1609301078 | Cover Disc |
| 90 | 2916690005 | Spring Lock Washer M6 |
| 90 | 2916690005 | Spring Lock Washer M6 |
| 91 | 2910141196 | Hex Socket Head Cap Screw DIN 912-M6X15-8.8 |
| 91 | 2910141196 | Hex Socket Head Cap Screw DIN 912-M6X15-8.8 |
| 93 | 1609301091 | Suspension Loop |
| 93 | 1609301091 | Suspension Loop |
| 94 | 2916680006 | Spring Lock Washer DIN 127-B 5 |
| 94 | 2916680006 | Spring Lock Washer DIN 127-B 5 |
| 95 | 2910141152 | Hex Socket Head Cap Screw DIN 912-M5X10-8.8 |
| 95 | 2910141152 | Hex Socket Head Cap Screw DIN 912-M5X10-8.8 |
| 96 | 1601104507 | Nameplate |
| 96 | 1601104507 | Nameplate |
| 97 | 1609301061 | Hose fitting |
| 97 | 1609301062 | Hose fitting |
| 98 | 2917721032 | Dummy 2X4 DIN 1476 St |
