Bosch 0607450192 pneumatic impact wrench: exploded parts diagram, 1 sheet, 50 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607450192: 50 positions on 1 sheet

Bosch 0607450192 parts list (1 sheet)

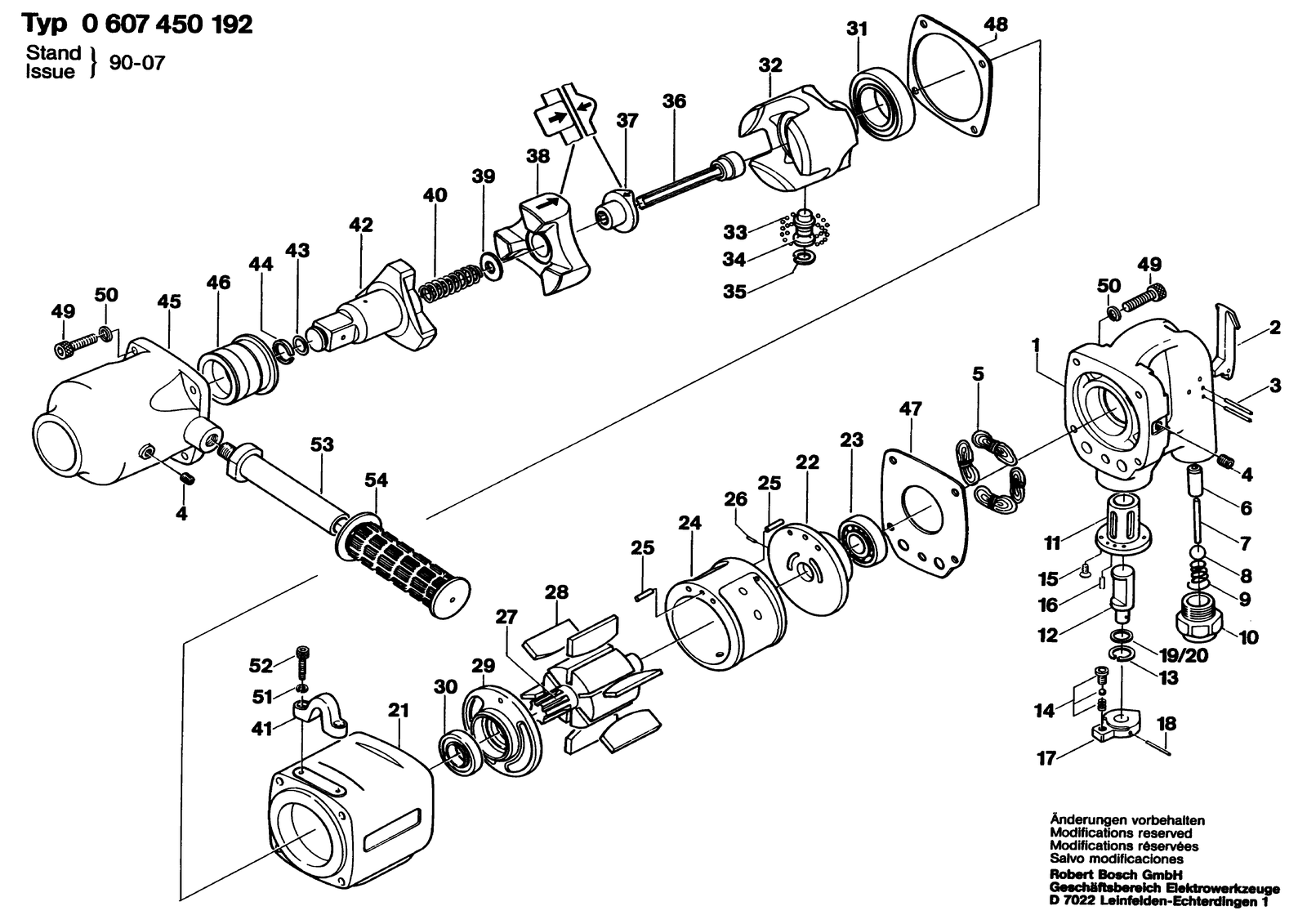

Bosch 0607450192 parts diagram, sheet 1
No.Part numberPart name
11609301449Handle
101609301099Fitting
111609301474Valve Bushing
121609301101Control Valve
131609301125Retaining ring
141609301059Detent Pin
151609301452Countersunk-Head Screw
161609301451Straight Pin
171609301102Control Lever
181609301051Slotted Spring Pin
21609301389Control Lever
211609301475Motor Housing
221609301104Bearing Flange
231609301132Groove ball bearing
241609301476Stator
251609301133Slotted Spring Pin
261609301402Slotted Spring Pin
271609301477Rotor
281609301478Rotor Lamella
291609301479Bearing Flange
31609301450Straight Pin
301609301480Groove ball bearing 25X42X9
311609301481Groove ball bearing 40X68X15
321609301482Striker Holder
331609301483Rolling Bearing
341609301484Dowel pin
351609301485Spring retaining ring
361609301486Splined Shaft
371609301487Carrier
381609301488Striker
391609301489Plain Washer
41609301390Screw Plug
401609301490Compression Spring
411609300236Suspension Loop
421609301491Striker Spindle
431609301141O-Ring
441609301142Retaining ring
451609301492Impact Mechanism Housing
461609301493Bushing
471609301117Sealing Plate
481609301494Sealing Plate
491609301137Hex Socket Head Cap Screw
51609301097Oiler
501609301495Spring Lock Washer
511609301498Hex Socket Head Cap Screw
531609301501Handle
541609301502Guide Sleeve
61609301454Valve Bushing
71609301455Straight Pin
91609301124Compression Spring
