Bosch 0607450191

Bosch 0607450191 pn impact wrench - serv.: exploded parts diagram, 1 sheet, 46 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607450191: 46 positions on 1 sheet

Bosch 0607450191 parts list (1 sheet)

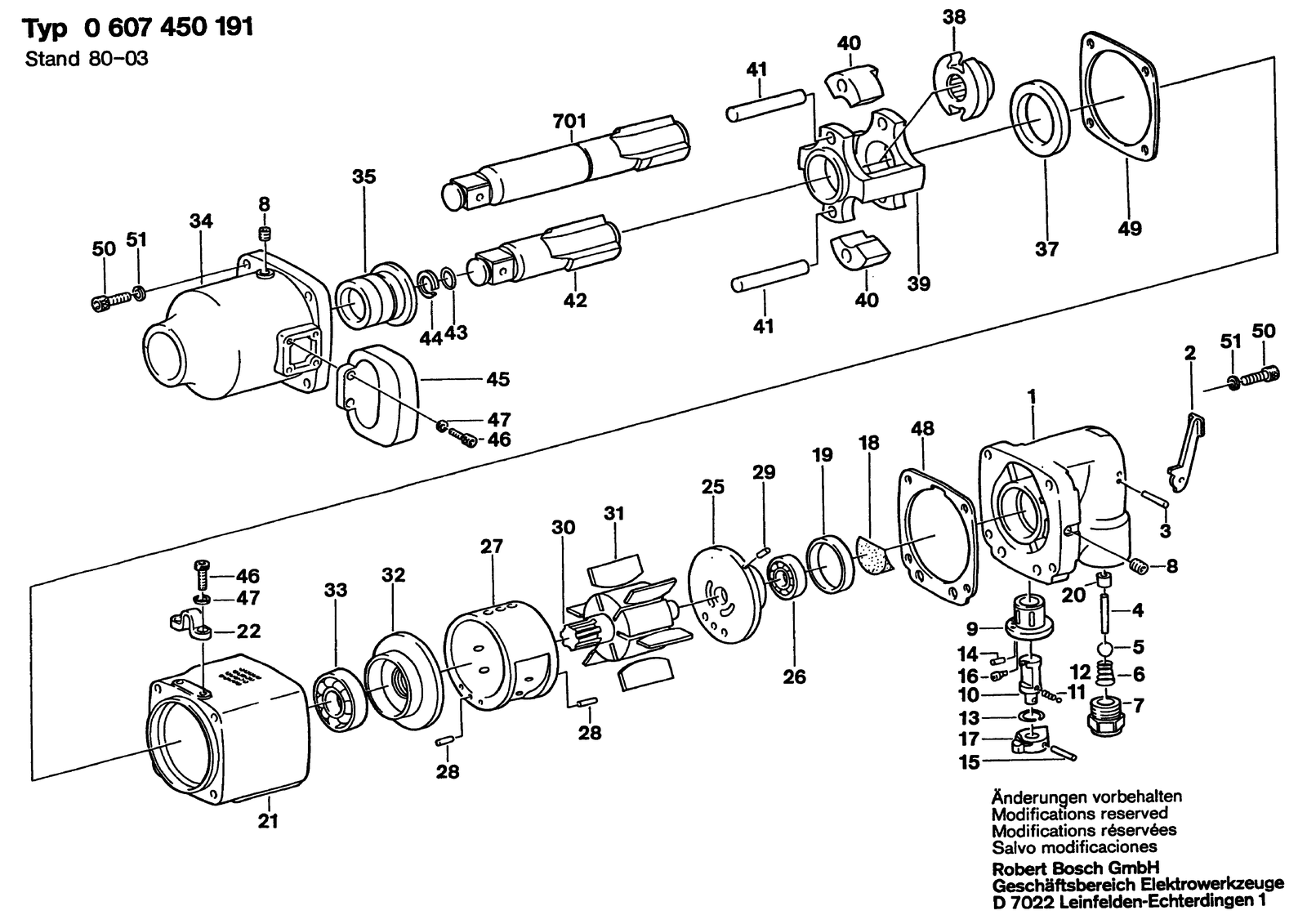

Bosch 0607450191 parts diagram, sheet 1
No.Part numberPart name
11609301388Handle
101609301392Control Valve
121609301393Ball
132916660007Spring retaining ring DIN 472-22X1MM
142917530036Straight Pin 5M2X10 DIN 6325
151609301394Slotted Spring Pin
162910860124Countersunk-Head Screw M 4X14 DIN 965-4.8
171609301395Rotary Knob
181609301097Oiler
191609301396Sealing cap
21609301389Control Lever
201609301397Guide Bushing
211609301398Motor Housing
221609300236Suspension Loop
251609301399Bearing Flange
261609301400Groove ball bearing
271609301401Stator
281609301133Slotted Spring Pin
291609301402Slotted Spring Pin
301609301403Rotor
311609301404Rotor Lamella
321609301405Bearing Flange
331609301406Groove ball bearing
341609301407Impact Mechanism Housing
351609301408Bushing
371609301409Retaining snap ring
381609301410Carrier
391609301411Striker Holder
401609301412Striker
411609301413Straight Pin
421609301414Striker Spindle
431609301141O-Ring
441609301142Retaining ring
451609301415Handle
462910141199Hex Socket Head Cap Screw DIN 912-M6X18-8.8
472916690005Spring Lock Washer M6
481609301416Sealing Plate
491609301417Sealing Plate
51609301213Ball
502910141246Hex Socket Head Cap Screw DIN 912-M8X30-8.8
512916680009Spring Lock Washer B 8 DIN 127
61609301124Compression Spring
71609301099Fitting
7011609301419Striker Spindle
81609301390Screw Plug
91609301391Valve Bushing
