Bosch 0607350194

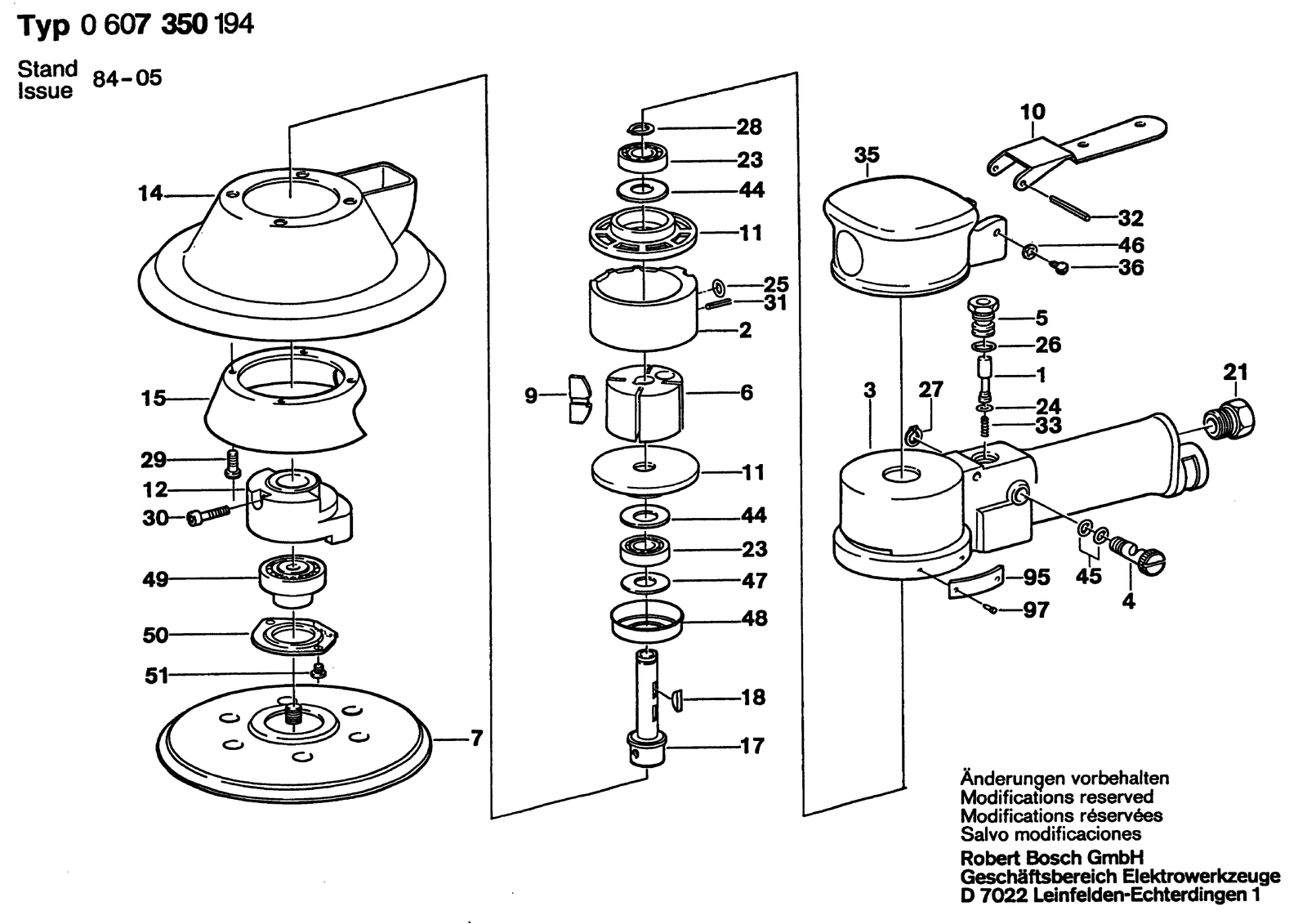

Bosch 0607350194 eccentric disc grinder: exploded parts diagram, 2 sheets, 43 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607350194: 43 positions on 2 sheets
Bosch 0607350194 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3609200286 | Valve piston |
| 10 | 3609200291 | Control Lever |
| 11 | 3609200292 | Bearing Flange |
| 12 | 3609200293 | Flyweight |
| 14 | 3609200294 | Suction Frame |
| 15 | 3609200308 | Cover |
| 17 | 3609200296 | Rotor Shaft |
| 18 | 3609200297 | Woodruff Key |
| 2 | 3609200320 | Stator |
| 21 | 3609200298 | Fitting |
| 23 | 3609200279 | Groove ball bearing |
| 24 | 3609200300 | O-Ring |
| 25 | 3609201046 | O-Ring |
| 26 | 3609200303 | O-Ring |
| 27 | 3609200304 | Spring retaining ring |
| 28 | 3609200305 | Spring retaining ring |
| 29 | 3609200280 | Oval-Head Screw |
| 3 | 3609200321 | Housing |
| 30 | 3609200281 | Hex Socket Head Cap Screw |
| 31 | 3609200307 | Slotted Spring Pin |
| 32 | 3609200306 | Slotted Spring Pin |
| 33 | 3609200299 | Compression Spring |
| 35 | 3609200295 | Protective Cap |
| 36 | 3609200282 | Raised ctsunk head tap sc |
| 4 | 3609200287 | Control Piston |
| 44 | 3609200284 | Cover Disc |
| 45 | 3609200301 | O-Ring |
| 46 | 3609200310 | Toothed lock washer |
| 47 | 3609200312 | Cover Disc |
| 48 | 3609200313 | Cover Ring |
| 49 | 3609200314 | Intermediate Bearing |
| 5 | 3609200288 | Valve Bushing |
| 50 | 3609200315 | Retaining snap ring |
| 51 | 3609200285 | Oval-Head Screw |
| 6 | 3609202799 | Rotor |
| 650 | 3609200316 | Hose fitting |
| 651 | 3609200324 | Dust Bag |
| 652 | 3609200323 | Air Hose |
| 653 | 3609200283 | Straight Pin |
| 7 | 3609200325 | Backing Pad |
| 9 | 3609200290 | Rotor Lamella |
| 95 | 3609200317 | Nameplate |
| 97 | 3603133000 | Grooved Nail |
