Bosch 0607350183

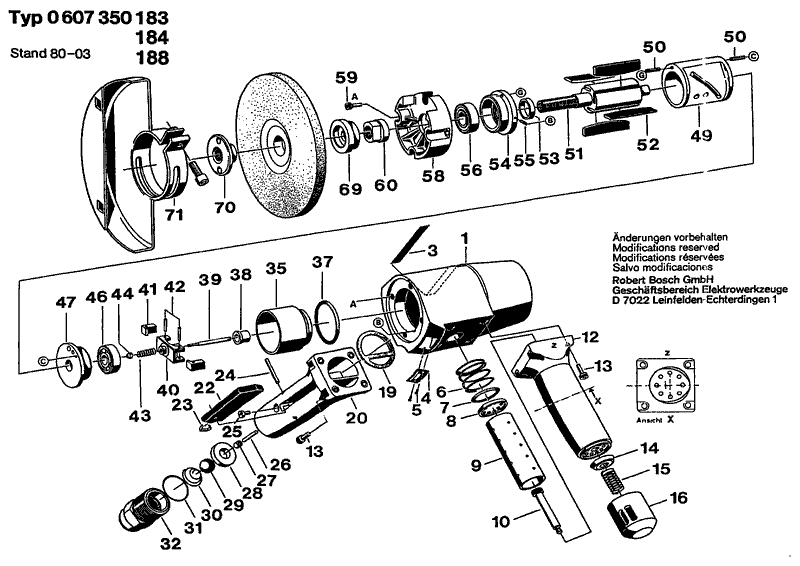

Bosch 0607350183 pneumatic vertical grinde: exploded parts diagram, 1 sheet, 147 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607350183: 147 positions on 1 sheet
Bosch 0607350183 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609310255 | Motor Housing |
| 1 | 1609310255 | Motor Housing |
| 1 | 1609310255 | Motor Housing |
| 10 | 1609310135 | Stop bolt |
| 10 | 1609310135 | Stop bolt |
| 10 | 1609310135 | Stop bolt |
| 12 | 1609310251 | Handle |
| 12 | 1609310323 | Insulating Plate |
| 12 | 1609310251 | Handle |
| 12 | 1609310323 | Insulating Plate |
| 12 | 1609310251 | Handle |
| 12 | 1609310323 | Insulating Plate |
| 13 | 2910141158 | Hex Socket Head Cap Screw DIN 912-M5X16-8.8 |
| 13 | 2910141158 | Hex Socket Head Cap Screw DIN 912-M5X16-8.8 |
| 13 | 2910141158 | Hex Socket Head Cap Screw DIN 912-M5X16-8.8 |
| 14 | 1609310282 | Plain Washer |
| 14 | 1609310282 | Plain Washer |
| 14 | 1609310282 | Plain Washer |
| 15 | 1609310188 | Compression Spring |
| 15 | 1609310188 | Compression Spring |
| 15 | 1609310188 | Compression Spring |
| 16 | 1609310275 | Protective Cap |
| 16 | 1609310275 | Protective Cap |
| 16 | 1609310275 | Protective Cap |
| 19 | 1609310153 | Sealing Plate |
| 19 | 1609310153 | Sealing Plate |
| 19 | 1609310153 | Sealing Plate |
| 20 | 1609310263 | Handle |
| 20 | 1609310263 | Handle |
| 20 | 1609310263 | Handle |
| 22 | 1609310272 | Control Lever |
| 22 | 1609310272 | Control Lever |
| 22 | 1609310272 | Control Lever |
| 23 | 1609310267 | Stop Bracket |
| 23 | 1609310267 | Stop Bracket |
| 23 | 1609310267 | Stop Bracket |
| 24 | 1903201064 | Needle Roller DIN5402-A3,5X34,8-G2 |
| 24 | 1903201064 | Needle Roller DIN5402-A3,5X34,8-G2 |
| 24 | 1903201064 | Needle Roller DIN5402-A3,5X34,8-G2 |
| 25 | 2910021150 | Socket head cap screw DIN 84-AM5X8-8.8 |
| 25 | 2910021150 | Socket head cap screw DIN 84-AM5X8-8.8 |
| 25 | 2910021150 | Socket head cap screw DIN 84-AM5X8-8.8 |
| 26 | 1609310021 | Needle Roller |
| 26 | 1609310021 | Needle Roller |
| 26 | 1609310021 | Needle Roller |
| 27 | 1609310083 | Guide Sleeve |
| 27 | 1609310083 | Guide Sleeve |
| 27 | 1609310083 | Guide Sleeve |
| 28 | 1609310177 | Plain Washer |
| 28 | 1609310177 | Plain Washer |
| 28 | 1609310177 | Plain Washer |
| 29 | 1609310099 | Ball |
| 29 | 1609310099 | Ball |
| 29 | 1609310099 | Ball |
| 3 | 1609310208 | Manufacturer's nameplate |
| 3 | 1609310208 | Manufacturer's nameplate |
| 3 | 1609310208 | Manufacturer's nameplate |
| 30 | 1609310186 | Compression Spring |
| 30 | 1609310186 | Compression Spring |
| 30 | 1609310186 | Compression Spring |
| 31 | 1609310157 | Seal Ring |
| 31 | 1609310157 | Seal Ring |
| 31 | 1609310157 | Seal Ring |
| 32 | 1609310148 | Fitting |
| 32 | 1609310148 | Fitting |
| 32 | 1609310340 | Fitting |
| 35 | 1609310252 | Guide Sleeve |
| 35 | 1609310252 | Guide Sleeve |
| 35 | 1609310252 | Guide Sleeve |
| 37 | 1609310158 | Seal Ring |
| 37 | 1609310158 | Seal Ring |
| 37 | 1609310158 | Seal Ring |
| 38 | 1609310246 | Guide Bushing |
| 38 | 1609310246 | Guide Bushing |
| 38 | 1609310246 | Guide Bushing |
| 39 | 1609310145 | Stud bolt |
| 39 | 1609310145 | Stud bolt |
| 39 | 1609310145 | Stud bolt |
| 4 | 160111A3H5 | Nameplate |
| 4 | 160111A3H5 | Nameplate |
| 4 | 1601104577 | Nameplate |
| 40 | 1609310244 | Regulator Armature |
| 40 | 1609310244 | Regulator Armature |
| 40 | 1609310244 | Regulator Armature |
| 41 | 1609310249 | Flyweight |
| 41 | 1609310248 | Flyweight |
| 41 | 1609310249 | Flyweight |
| 42 | 1903201044 | Needle Roller A 3X15,8G2DIN5402 |
| 42 | 1903201044 | Needle Roller A 3X15,8G2DIN5402 |
| 42 | 1903201044 | Needle Roller A 3X15,8G2DIN5402 |
| 43 | 1609310189 | Compression Spring |
| 43 | 1609310189 | Compression Spring |
| 43 | 1609310189 | Compression Spring |
| 44 | 2915061001 | Hex Nut |
| 44 | 2915061001 | Hex Nut |
| 44 | 2915061001 | Hex Nut |
| 46 | 1900905225 | Groove ball bearing 12X32X10 |
| 46 | 1900905225 | Groove ball bearing 12X32X10 |
| 46 | 1900905225 | Groove ball bearing 12X32X10 |
| 47 | 1609310241 | Bearing Flange |
| 47 | 1609310241 | Bearing Flange |
| 47 | 1609310241 | Bearing Flange |
| 49 | 1609310225 | Stator |
| 49 | 1609310225 | Stator |
| 49 | 1609310225 | Stator |
| 5 | 1609310358 | Round-Head Grooved Pin |
| 5 | 1609310358 | Round-Head Grooved Pin |
| 5 | 1609310358 | Round-Head Grooved Pin |
| 50 | 2917760034 | Slotted Spring Pin 2X6 DIN 1481 |
| 50 | 2917760034 | Slotted Spring Pin 2X6 DIN 1481 |
| 50 | 2917760034 | Slotted Spring Pin 2X6 DIN 1481 |
| 51 | 1609310220 | Rotor |
| 51 | 1609310220 | Rotor |
| 51 | 1609310330 | Rotor |
| 52 | 1609310233 | Rotor Lamella |
| 52 | 1609310233 | Rotor Lamella |
| 52 | 1609310233 | Rotor Lamella |
| 53 | 1609310179 | O-Ring |
| 53 | 1609310179 | O-Ring |
| 53 | 1609310179 | O-Ring |
| 54 | 1609310236 | Bearing Flange |
| 54 | 1609310236 | Bearing Flange |
| 54 | 1609310331 | Bearing Flange |
| 56 | 1900905226 | Groove ball bearing 15X35X11 |
| 56 | 1900905204 | Groove ball bearing 6202-Z DIN 625 |
| 56 | 1609310328 | Groove ball bearing |
| 58 | 1609310264 | Bearing Flange |
| 58 | 1609310264 | Bearing Flange |
| 58 | 1609310332 | Bearing Flange |
| 59 | 2910141122 | Hex Socket Head Cap Screw DIN 912-M 4X12-8.8 |
| 59 | 2910141122 | Hex Socket Head Cap Screw DIN 912-M 4X12-8.8 |
| 59 | 2910141122 | Hex Socket Head Cap Screw DIN 912-M 4X12-8.8 |
| 6 | 1609310192 | Compression Spring |
| 6 | 1609310192 | Compression Spring |
| 6 | 1609310192 | Compression Spring |
| 60 | 1609310276 | Guide Bushing |
| 60 | 1609310276 | Guide Bushing |
| 60 | 1609310333 | Stud bolt |
| 7 | 1609310158 | Seal Ring |
| 7 | 1609310158 | Seal Ring |
| 7 | 1609310158 | Seal Ring |
| 8 | 1609310280 | Perforated Panel |
| 8 | 1609310280 | Perforated Panel |
| 8 | 1609310280 | Perforated Panel |
| 9 | 1609310283 | Pvc Tube |
| 9 | 1609310283 | Pvc Tube |
| 9 | 1609310283 | Pvc Tube |
