Bosch 0607150580

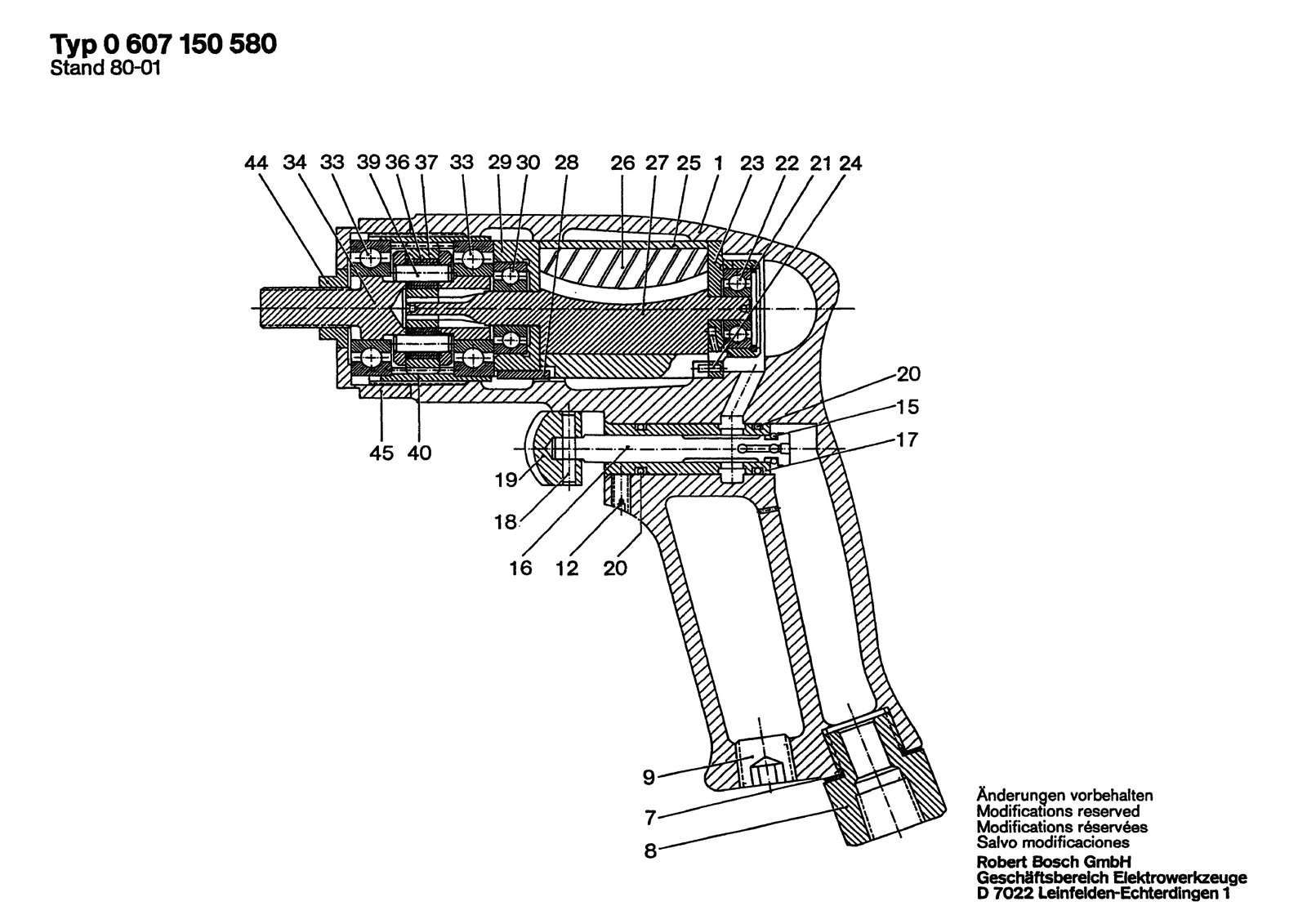

Bosch 0607150580 drill: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607150580: 29 positions on 1 sheet
Bosch 0607150580 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609301444 | Motor Housing |
| 12 | 2912011118 | Set screw M 4X8-DIN 914-45H |
| 15 | 1609301364 | Seal Ring |
| 16 | 1609301365 | Control Piston |
| 17 | 1609301445 | Valve Bushing |
| 18 | 2917780059 | Slotted Spring Pin |
| 19 | 1609301368 | Push-Button |
| 20 | 1609301369 | Seal Ring |
| 21 | 1609301370 | Spring retaining ring |
| 22 | 1609301371 | Groove ball bearing |
| 23 | 1609301372 | Bearing Flange |
| 24 | 2917780033 | Slotted Spring Pin 2X5 DIN 1481 |
| 25 | 1609301374 | Stator |
| 26 | 1609301375 | Rotor Lamella |
| 27 | 1609301376 | Rotor |
| 28 | 1609301377 | Parallel Key |
| 29 | 1609301446 | Bearing Flange |
| 30 | 1609301379 | Groove ball bearing |
| 33 | 1609301380 | Groove ball bearing |
| 34 | 1609301381 | Planetary-Gear Carrier |
| 36 | 1609301382 | Needle-Roller Bearing |
| 37 | 1609301383 | Toothed Gear |
| 39 | 1609301384 | Needle Roller |
| 40 | 1609301385 | Ring Gear |
| 44 | 1609301386 | Threaded Ring |
| 45 | 1609301387 | Threaded Bushing |
| 7 | 1609301361 | Seal Ring |
| 8 | 1609301362 | Fitting |
| 9 | 1609301447 | Silencer |
