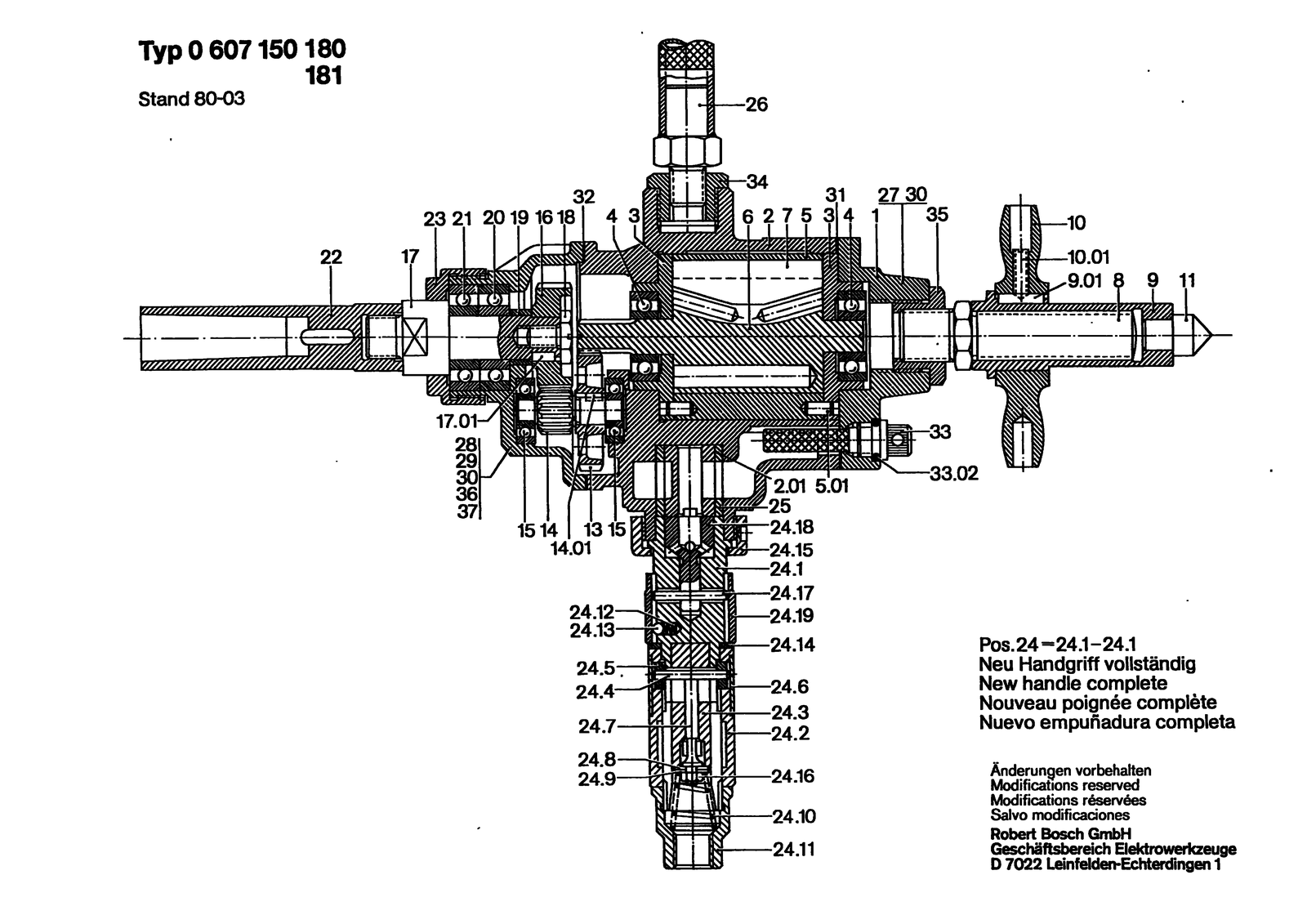

Bosch 0607150180 pn-drill - (industr.): exploded parts diagram, 1 sheet, 74 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0607150180: 74 positions on 1 sheet
Bosch 0607150180 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609300323 | Housing Cover |
| 1 | 1609300323 | Housing Cover |
| 10 | 1609300348 | Pilot Wheel |
| 10 | 1609300348 | Pilot Wheel |
| 11 | 1609300349 | Bolt |
| 11 | 1609300349 | Bolt |
| 13 | 1609300351 | Cylindrical Gear |
| 13 | 1609300351 | Cylindrical Gear |
| 14 | 1609300352 | Pinion |
| 14 | 1609300355 | Pinion |
| 15 | 3600900025 | Groove ball bearing |
| 15 | 3600900025 | Groove ball bearing |
| 16 | 1609300353 | Cylindrical Gear |
| 16 | 1609300356 | Cylindrical Gear |
| 17 | 1609300350 | Shaft |
| 17 | 1609300350 | Shaft |
| 18 | 1609300322 | Screw |
| 18 | 1609300322 | Screw |
| 19 | 1609300345 | Washer |
| 19 | 1609300345 | Washer |
| 2 | 1609300328 | Motor Housing |
| 2 | 1609300328 | Motor Housing |
| 20 | 1900905227 | Groove ball bearing 6203-2 Z DIN 625 |
| 20 | 1900905227 | Groove ball bearing 6203-2 Z DIN 625 |
| 21 | 1900905227 | Groove ball bearing 6203-2 Z DIN 625 |
| 21 | 1900905227 | Groove ball bearing 6203-2 Z DIN 625 |
| 22 | 1609300354 | Drilling Spindle |
| 22 | 1609300354 | Drilling Spindle |
| 23 | 1609300344 | Threaded Ring |
| 23 | 1609300344 | Threaded Ring |
| 24 | 1609301036 | Switch Handle |
| 24 | 1609301036 | Switch Handle |
| 25 | 1609300327 | Control Valve |
| 25 | 1609300327 | Control Valve |
| 26 | 1609300214 | Handle |
| 26 | 1609300214 | Handle |
| 27 | 2911062204 | Hex Screw M 6X28 DIN 933-8.8 |
| 27 | 2911062204 | Hex Screw M 6X28 DIN 933-8.8 |
| 28 | 2911062207 | Hex Screw M 6X35 DIN 933-8.8 |
| 28 | 2911062207 | Hex Screw M 6X35 DIN 933-8.8 |
| 29 | 2911061199 | Hex Screw DIN 933-M6X16-8.8 |
| 29 | 2911061199 | Hex Screw DIN 933-M6X16-8.8 |
| 3 | 1609300339 | Cover Disc |
| 3 | 1609300339 | Cover Disc |
| 30 | 2916690005 | Spring Lock Washer M6 |
| 30 | 2916690005 | Spring Lock Washer M6 |
| 31 | 1609300324 | Seal |
| 31 | 1609300324 | Seal |
| 32 | 1609300325 | Seal |
| 32 | 1609300325 | Seal |
| 33 | 1609300094 | Oiler |
| 33 | 1609300094 | Oiler |
| 34 | 1609300321 | Collar Screw |
| 34 | 1609300321 | Collar Screw |
| 35 | 1609300335 | Screw |
| 35 | 1609300335 | Screw |
| 36 | 1601104507 | Nameplate |
| 36 | 1601104507 | Nameplate |
| 37 | 2917721032 | Dummy 2X4 DIN 1476 St |
| 37 | 2917721032 | Dummy 2X4 DIN 1476 St |
| 4 | 1900905226 | Groove ball bearing 15X35X11 |
| 4 | 1900905226 | Groove ball bearing 15X35X11 |
| 5 | 1609300340 | Stator |
| 5 | 1609300340 | Stator |
| 5 | 1609300686 | Slotted Spring Pin |
| 5 | 1609301052 | Slotted Spring Pin |
| 6 | 1609300341 | Rotor |
| 6 | 1609300341 | Rotor |
| 7 | 1609300342 | Rotor Lamella |
| 7 | 1609300342 | Rotor Lamella |
| 8 | 1609300347 | Stud bolt |
| 8 | 1609300347 | Stud bolt |
| 9 | 1609300346 | Threaded Sleeve |
| 9 | 1609300346 | Threaded Sleeve |
