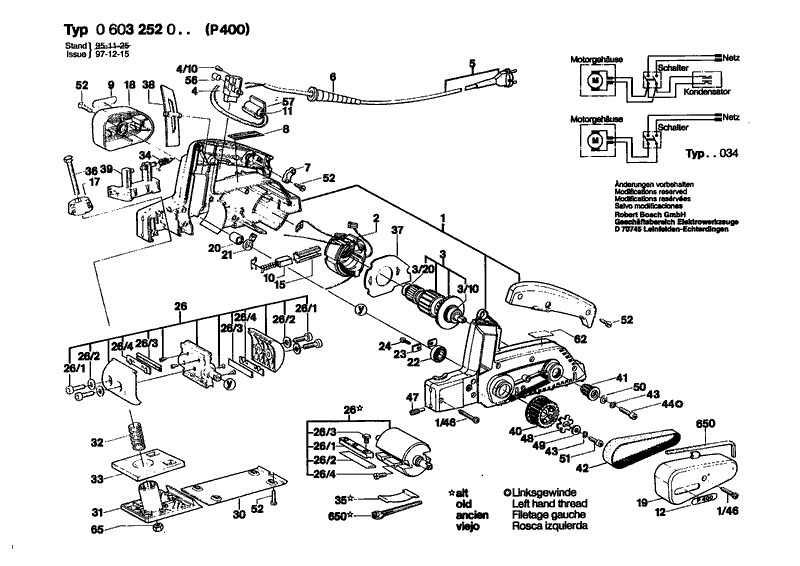

Bosch 0603252003 portable planer: exploded parts diagram, 2 sheets, 80 positions. Spare parts with part numbers, availability and prices.
execution 0603252003
other executions06032520320603252033060325203406032520370603252042060325204706032520480603252050
Scroll to zoom · drag to move
All parts on this sheet0
Checking availability…
All parts of Bosch 0603252003: 80 positions on 2 sheets
Bosch 0603252003 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609200638 | Motor Housing Green |
| 1/46 | 2910611082 | Tapping Screw B 3,9X32 DIN 7981 |
| 10 | 1609202417 | Carbon-Brush Set |
| 11 | 1609200887 | Suppression Filter |
| 12 | 1609200656 | Sticker |
| 15 | 1609200032 | Brush Holder |
| 17 | 1609200642 | Handle |
| 18 | 1609200643 | Bearing cover |
| 19 | 1609200644 | Gear Cover |
| 2 | 1609200639 | Field 220V |
| 2 | 1609200652 | Pole Shoe 110-115V |
| 2 | 1609200654 | Field 240V |
| 20 | 1609209006 | Needle bearing |
| 21 | 1609202009 | Seal Ring |
| 22 | 1609200715 | Groove ball bearing 6 001 Llu C 3/3K DIN 625 |
| 23 | 1609200039 | Backing Plate |
| 24 | 2603490017 | Torx Oval-Head Screw 3X10 |
| 26 | 1609201113 | Cutter head |
| 26/1 | 1609201129 | Receiver Rail |
| 26/2 | 1609200978 | Planing knife |
| 26/3 | 1609201086 | Hex Socket Head Cap Screw |
| 26/4 | 2918660004 | Plain Washer DIN 126-9-A2 |
| 3 | 1609200640 | Armature 220V |
| 3 | 1609200653 | Armature 110-115V |
| 3 | 1609200655 | Armature 240V |
| 3/10 | 1609200715 | Groove ball bearing 6 001 Llu C 3/3K DIN 625 |
| 3/20 | 1609200716 | Groove ball bearing 607 Llb C3/3K DIN 625 |
| 30 | 1609200648 | Base Plate |
| 31 | 1609201076 | Adjusting Slide |
| 32 | 1604619017 | Compression Spring |
| 33 | 1609200043 | Sealing Plate |
| 34 | 1609200044 | Coiled Spring |
| 36 | 2911061307 | Hex Screw M 10X70 DIN 933-8.8 |
| 37 | 1609200649 | Intermediate Plate |
| 38 | 1609200031 | Flap |
| 39 | 1609200021 | Sealing cap |
| 4 | 1609200748 | On-Off Switch |
| 4 | 1609200751 | On-Off Switch |
| 40 | 1609200650 | Pulley Z=31 |
| 41 | 1609200016 | Pulley Z=13 |
| 42 | 1609201215 | Toothed Belt Z= 60 |
| 43 | 2916060006 | Spring Washer DIN 137-A5-FST |
| 44 | 1609234023 | Socket head cap screw Lefthand Threads M 5X16 MM |
| 47 | 2912081126 | Set screw M 4X16 DIN 915-45H |
| 48 | 1609200052 | Driver Disc |
| 49 | 2916201003 | Plain Washer 5,3 DIN 7349 |
| 5 | 1604460022 | Power supply cord Usa/cdn 2,15M 2 X 082MM SJ 18/2 |
| 5 | 1604460034 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460403 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1607000389 | Power supply cord |
| 5 | 1607000391 | Power supply cord |
| 50 | 2916011011 | Plain Washer DIN 433-5,3-ST |
| 51 | 2910141154 | Hex Socket Head Cap Screw DIN 912-M5X12-8.8 |
| 52 | 2912401020 | Tapping Screw DIN 7981-3,9X19-C-Z-ST |
| 56 | 1609200048 | Plug |
| 57 | 1609200550 | Adhesive Tape |
| 6 | 1609207001 | Grommet Ø9X90 MM |
| 60 | 1609200054 | Width Stop |
| 60/1 | 1609200029 | Stop Bracket |
| 60/2 | 1609200056 | Rubber Ring G 9X13X3 MM |
| 60/3 | 1609234016 | Wing Screw M6X20 MM |
| 60/4 | 1609233000 | Wing Nut M6 |
| 60/5 | 2910281203 | Round-Head Bolt DIN 603-M6X25 |
| 60/6 | 2910281196 | Round-Head Bolt M6X15 DIN 603 |
| 60/7 | 1609201082 | Plain Washer Ø6,4XØ16X2 MM |
| 60/8 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 60/9 | 1609200054 | Width Stop |
| 61 | 1608132006 | Depth-Gauge |
| 61/1 | 1601331039 | Stop Bracket |
| 61/2 | 1609234017 | Wing Screw |
| 61/3 | 1609200056 | Rubber Ring G 9X13X3 MM |
| 61/4 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 62 | 1610110058 | Label |
| 65 | 2915011010 | Hex Nut DIN 934-M 10-M-8 |
| 650 | 1609201069 | Screwdriver SW5 |
| 650 | 2607950504 | Single-Head Eng. Wrench |
| 7 | 1609213000 | Fastening Clamp |
| 700 | 1609200980 | Base |
| 8 | 1601105099 | Nameplate |
| 9 | 1601110044 | Manufacturer's nameplate |
