Bosch 0602506001

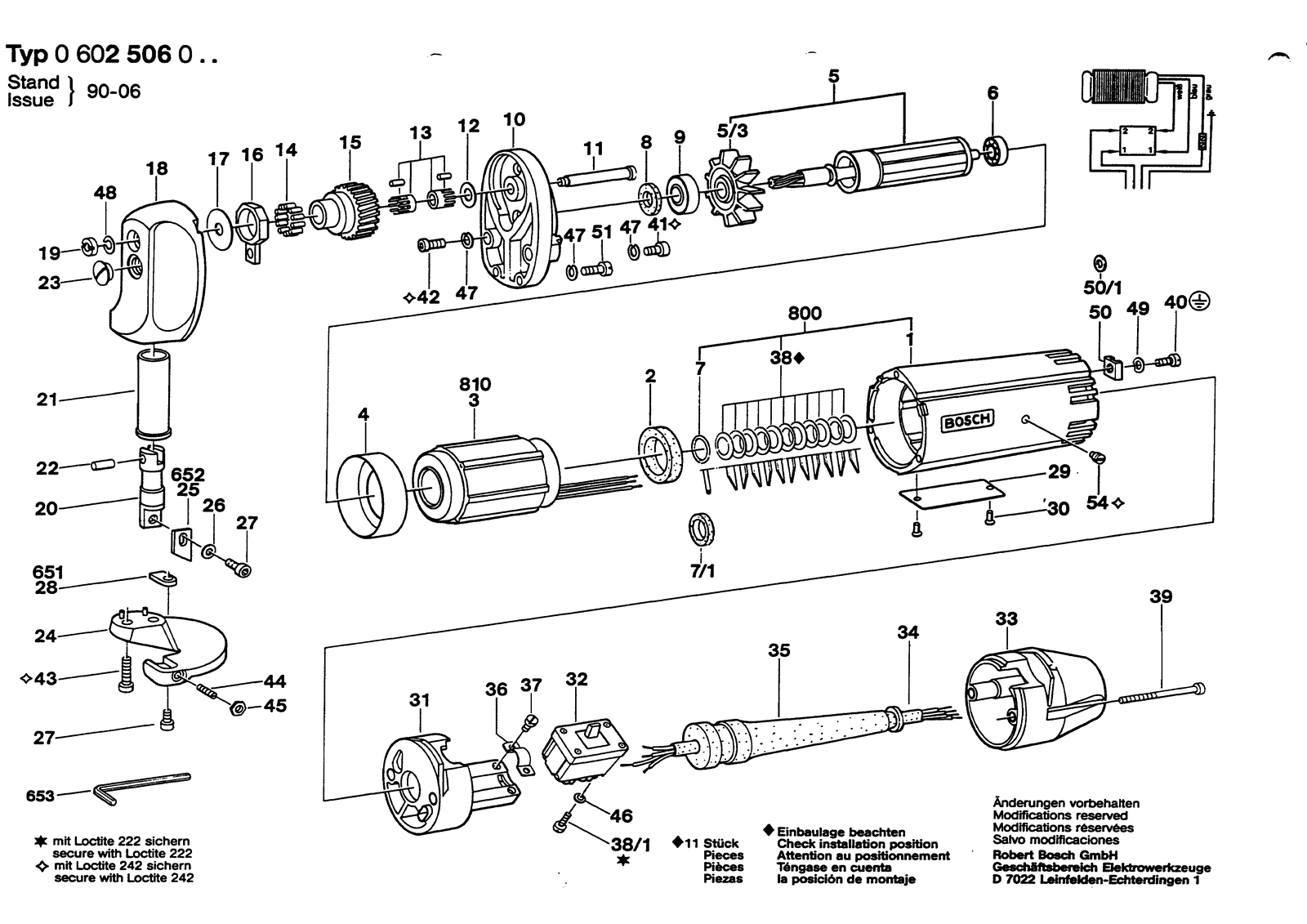

Bosch 0602506001 shears: exploded parts diagram, 1 sheet, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602506001: 67 positions on 1 sheet
Bosch 0602506001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 3605820060 | Bearing Flange |
| 11 | 2603520001 | Bearing bolt |
| 12 | 1600100624 | Shim Thick 0,5 MM |
| 13 | 2600913034 | Needle-Roller Cage |
| 14 | 1903201000 | Needle Roller 2X7,8 G 2 DIN 5402 |
| 15 | 2606319040 | Eccentric Cog Wheel Z=43 |
| 16 | 2602001000 | Connecting Rod |
| 17 | 2600100519 | Shim |
| 18 | 2605806032 | Gear Housing |
| 19 | 2603341002 | Round Nut |
| 2 | 1600209011 | Seal Ring |
| 20 | 2603070005 | Lifting Rod |
| 21 | 2600422000 | Guide Sleeve |
| 22 | 2603100000 | Straight Pin |
| 23 | 2603463001 | Screw Plug |
| 24 | 2608042000 | Blade Holder |
| 25 | 3607010028 | Set of knives |
| 26 | 2916011010 | Plain Washer DIN 125-A4,3-ST |
| 27 | 2910405118 | Hex Socket Head Cap Screw DIN 912-M4X8-12.8 |
| 28 | 3607010028 | Set of knives |
| 29 | 3601106053 | Nameplate |
| 30 | 3603133000 | Grooved Nail |
| 31 | 3600099004 | Connection Housing |
| 32 | 1607200023 | On-Off Switch |
| 33 | 1605500070 | Sealing cap Black |
| 34 | 1604421017 | Cable |
| 34 | 1604461034 | Elec. Cable W/Connection |
| 34 | 1604462053 | Pvc-Insulated Cable |
| 34 | 3604462056 | Pvc-Insulated Cable |
| 35 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 36 | 1601302014 | Fastening Clamp |
| 37 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 38 | 3600150013 | Disc Spring |
| 38/1 | 2910110048 | Pan head screw DIN 85-AM3X6-CUZN |
| 39 | 2910141140 | Hex Socket Head Cap Screw DIN 912-M 4X45-8.8 |
| 4 | 1600502005 | Air-Deflector Ring |
| 40 | 2910110118 | Pan head screw DIN 85-AM4X8-MS |
| 41 | 2910141120 | Hex Socket Head Cap Screw M 4X10 DIN 912-8.8 |
| 42 | 2910141128 | Hex Socket Head Cap Screw DIN 912-M4X18-8.8 |
| 43 | 2910141158 | Hex Socket Head Cap Screw DIN 912-M5X16-8.8 |
| 44 | 2912031091 | Set screw M 3,5X15 DIN 551-5.8 |
| 45 | 2915051109 | Hex Nut DIN 439-BM 13,5-4 |
| 46 | 2916060003 | Spring Washer A 3 DIN 137-ST |
| 47 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 48 | 2916680006 | Spring Lock Washer DIN 127-B 5 |
| 49 | 1600150006 | Spring Washer DIN 137-A4 |
| 5 | 3604080020 | Rotor |
| 5/3 | 1606610105 | Fan |
| 50 | 3601321001 | Clamping Saddle |
| 50/1 | 2916010409 | Plain Washer DIN 46 255-DPG 9 |
| 51 | 2910141122 | Hex Socket Head Cap Screw DIN 912-M 4X12-8.8 |
| 54 | 3603402000 | Set screw |
| 6 | 1900905015 | Groove ball bearing 625-2Z DIN 625 |
| 651 | 3607010028 | Set of knives |
| 653 | 1907950004 | Offset Screwdriver DIN 911, SW3 |
| 7 | 3600210039 | O-Ring 12,0X2,25 MM |
| 7/1 | 3600206002 | Rubber Ring 6MM,Ø12XØ16,4X3MM |
| 8 | 1600108053 | Sealing disk |
| 800 | 3605102028 | Motor Housing |
| 810 | 1604229200 | Stator 265V/200HZ, 200V/150HZ |
| 810 | 1604229201 | Stator 200V/300HZ,135V/200HZ |
| 810 | 1604229202 | Stator 72V/200HZ,110V/300HZ |
| 810 | 1604229203 | Stator 72V/300HZ |
| 810 | 1604229204 | Stator 220V/360HZ |
| 810 | 1604229205 | Stator 42V/300HZ |
| 810 | 1604229206 | Stator 42V/200HZ |
| 9 | 1900905017 | Groove ball bearing 9X24X7 |
