Bosch 0602473201

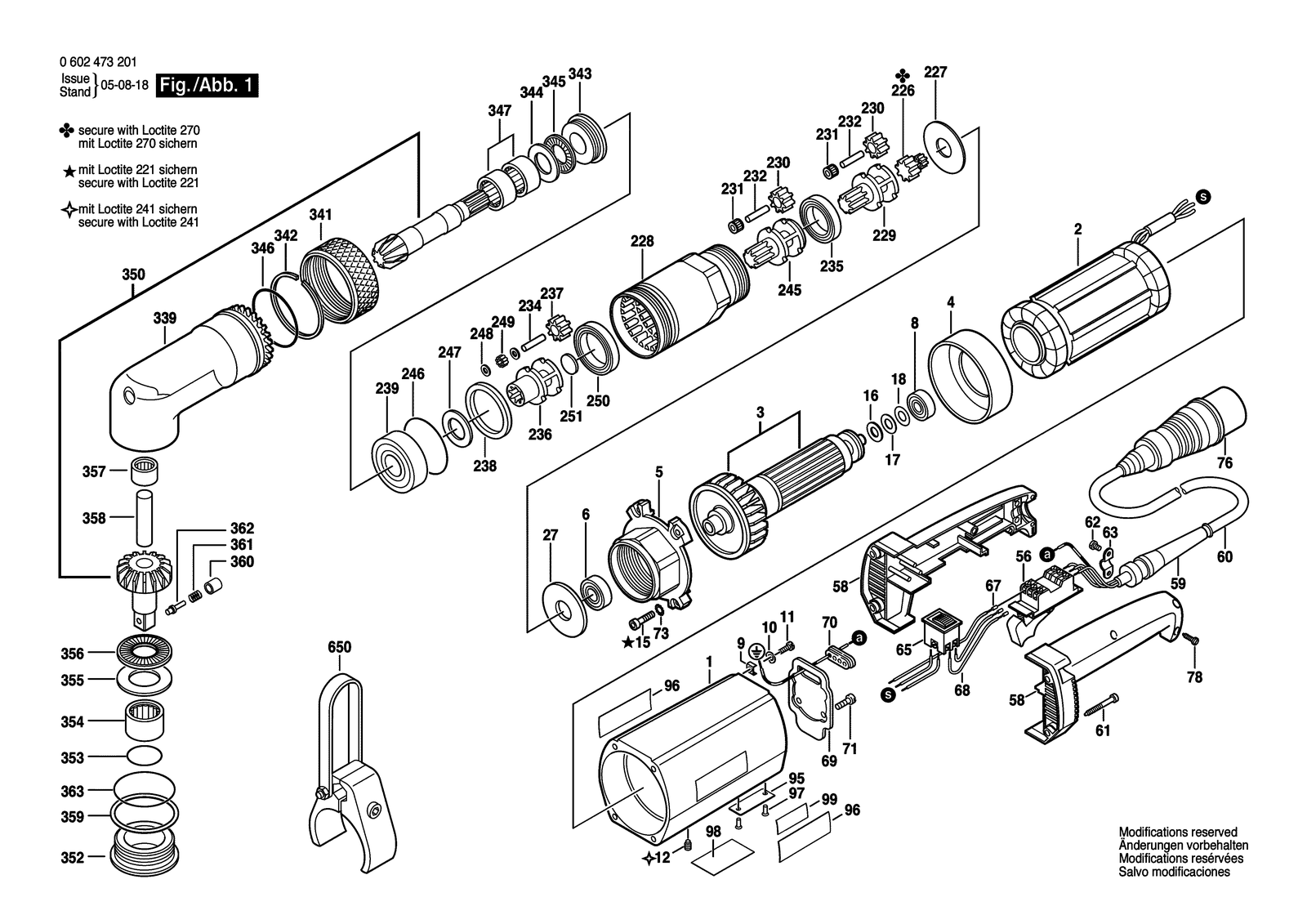

Bosch 0602473201 angle screwdriver: exploded parts diagram, 1 sheet, 79 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602473201: 79 positions on 1 sheet
Bosch 0602473201 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102079 | Motor Housing |
| 10 | 3600150006 | Spring Washer Ø4,2 MM |
| 11 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 12 | 1603402002 | Set screw |
| 15 | 2910021157 | Socket head cap screw DIN 84-AM5X15-8.8 |
| 16 | 1600100632 | Shim Thick 0,2 MM |
| 17 | 1420100023 | Shim Thick 0,10 MM |
| 18 | 1600100601 | Shim Thick 0,05 MM |
| 2 | 1604229098 | Stator 265V/200HZ,230V/180HZ |
| 2 | 1604229099 | Stator 200V/300HZ,135V/200HZ |
| 2 | 1604229100 | Stator 72V/200HZ |
| 226 | 3606300048 | Pinion Z=14 |
| 227 | 3600101004 | Stop Disc |
| 228 | 3606334044 | Ring Gear Z=46 |
| 229 | 3606337048 | Planetary-Gear Carrier |
| 230 | 3606316103 | Cylindrical Gear |
| 231 | 3600910000 | Needle-Roller Assembly |
| 232 | 3603201005 | Needle Roller |
| 234 | 3603201031 | Needle Roller |
| 235 | 3600905001 | Groove ball bearing 25X37X7 |
| 236 | 3606337090 | Planetary-Gear Carrier |
| 237 | 3606316105 | Cylindrical Gear |
| 238 | 3600101012 | Spacer Ring |
| 239 | 3600905057 | Groove ball bearing |
| 245 | 3606337043 | Planetary-Gear Carrier |
| 246 | 3600210109 | O-Ring 47,0X1,5 MM |
| 247 | 3600102011 | Plain Washer |
| 248 | 3600100006 | Stop Disc |
| 249 | 3603201030 | Needle Roller |
| 250 | 3600905103 | Groove ball bearing |
| 251 | 2916090009 | Sealing washer |
| 27 | 3600102014 | Stop Disc |
| 3 | 3604080010 | Rotor |
| 339 | 3605106032 | Spindle Housing |
| 341 | 3603340015 | Union Nut |
| 342 | 3600224017 | Retaining ring |
| 343 | 3603490007 | Threaded Ring |
| 344 | 3600150003 | Support Disc 15X28X2,75 |
| 345 | 1610913000 | Thrust Needle Rim |
| 346 | 1900210145 | O-Ring 45X2,5MM |
| 347 | 1410920001 | Needle-Roller Bearing |
| 350 | 3608871857 | Bevel Gear Set |
| 352 | 3603490006 | Bearing Flange |
| 353 | 1900210125 | O-Ring 25X2,5 MM |
| 354 | 3600917021 | Needle-Roller Assembly |
| 355 | 1610102617 | Support Disc Thick 1,0 MM |
| 356 | 1610920002 | Roller-Cage Assembly |
| 357 | 3600917020 | Needle bearing |
| 358 | 3603100007 | Bearing bolt |
| 359 | 3600100018 | Shim |
| 359 | 3600100019 | Shim |
| 363 | 3600210006 | O-Ring 41,0X1,78 MM |
| 4 | 1600209002 | Air-Deflector Ring |
| 5 | 3605700097 | Intermediate Bearing |
| 56 | 3607200015 | Switch |
| 58 | 3605132043 | Handle |
| 59 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 6 | 1900905228 | Groove ball bearing 15X35X11 |
| 60 | 3604462005 | Helical Conductor |
| 61 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 62 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 63 | 1601302014 | Fastening Clamp |
| 65 | 3607200000 | Switch |
| 650 | 3604720023 | Suspension Loop |
| 67 | 3604477008 | End Splice |
| 68 | 3604412003 | Pvc-Insulated Cable |
| 69 | 1602388006 | Sealing Plate |
| 70 | 1600306001 | Grommet |
| 71 | 2910011148 | Socket head cap screw DIN 84-AM5X6-5.8 |
| 73 | 2609201067 | Parts Set |
| 76 | 3604484003 | Connector Plug |
| 78 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 8 | 1900905018 | Ball Bearing 7X22X7 |
| 9 | 3601321001 | Clamping Saddle |
| 95 | 3601106053 | Nameplate |
| 96 | 3601110047 | Manufacturer's nameplate |
| 97 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 98 | 3601103012 | Sticker |
| 99 | 3601119236 | Reference Plate |
