Bosch 0602470301

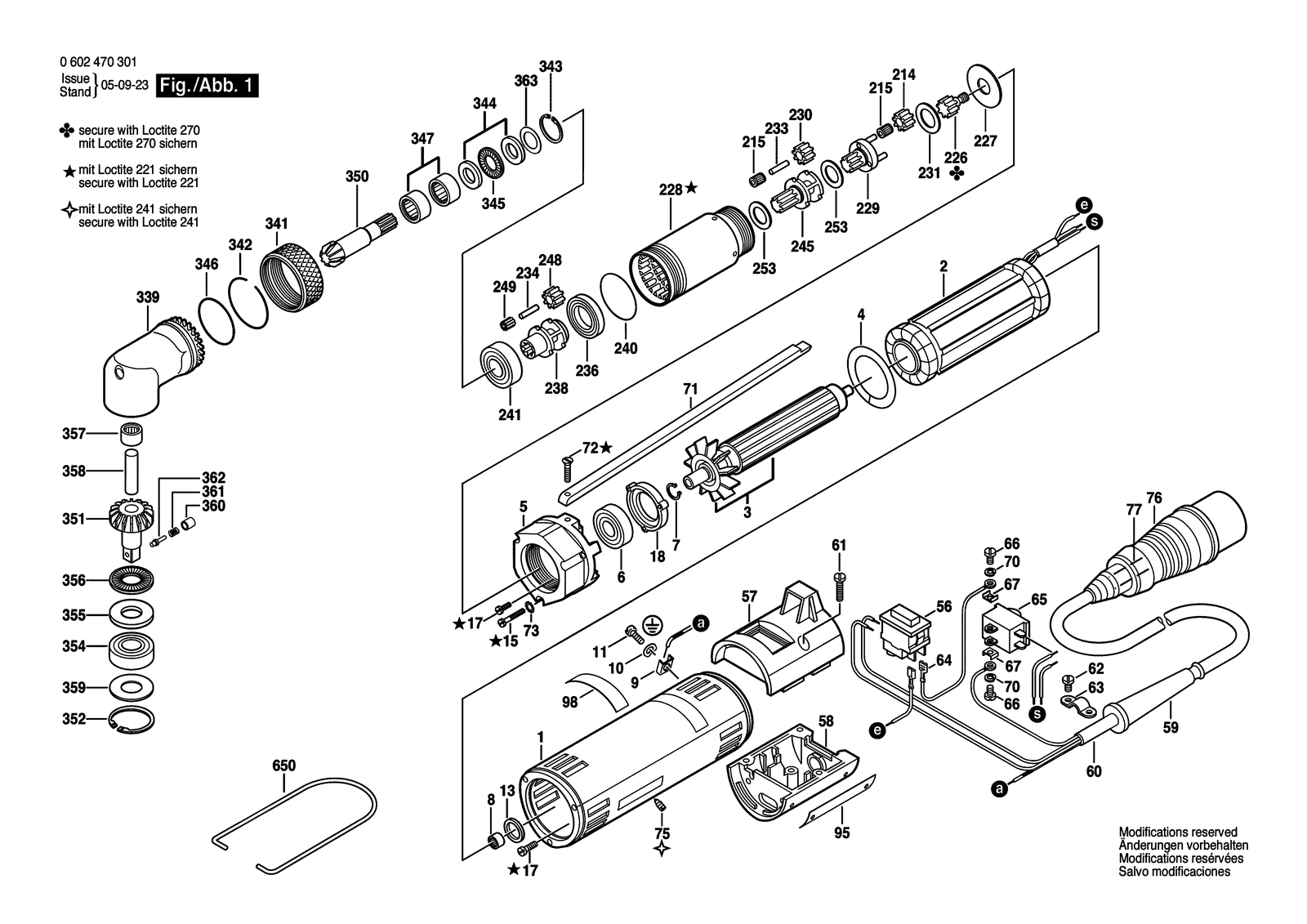

Bosch 0602470301 angle screwdriver: exploded parts diagram, 1 sheet, 80 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602470301: 80 positions on 1 sheet
Bosch 0602470301 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102051 | Motor Housing |
| 10 | 3600150009 | Spring Washer |
| 11 | 2910110050 | Pan head screw DIN 85-AM3X8-MS |
| 13 | 1600205026 | Felt Washer |
| 15 | 2910021062 | Socket head cap screw DIN 84-AM3X20-8.8 |
| 17 | 2910011054 | Socket head cap screw DIN 84-AM3X12-5.8 |
| 17 | 2910211025 | Tapping Screw DIN 7971-BZ4,2X13 |
| 18 | 3600190004 | Conical Spring Washer |
| 2 | 3604229000 | Stator 265V/200HZ |
| 2 | 3604229001 | Stator 200V/300HZ |
| 2 | 3604229002 | Stator 72V/200HZ |
| 214 | 3606316098 | Cylindrical Gear Z=12 |
| 215 | 3600913000 | Needle-Roller Assembly Ina K3X5X7 |
| 226 | 3606300002 | Pinion Z=23 |
| 227 | 3600101001 | Stop Disc |
| 228 | 3606334043 | Ring Gear Z=40 |
| 229 | 3606337070 | Planetary-Gear Carrier |
| 230 | 3606316100 | Cylindrical Gear |
| 231 | 3600113010 | Friction Washer |
| 233 | 3603201000 | Needle Roller |
| 234 | 3603201044 | Needle Roller |
| 236 | 3600900016 | Groove ball bearing |
| 238 | 3606337084 | Planetary-Gear Carrier |
| 241 | 3600900017 | Groove ball bearing |
| 245 | 3606337086 | Planetary-Gear Carrier |
| 248 | 3606316053 | Cylindrical Gear Z=14 |
| 249 | 3600903001 | Needle-Roller Assembly |
| 253 | 3600101024 | Friction Washer |
| 3 | 3604080012 | Rotor Without Winding |
| 339 | 3605106035 | Spindle Housing |
| 341 | 3603340016 | Union Nut |
| 342 | 1600116004 | Retaining ring |
| 343 | 2916660010 | Spring retaining ring DIN 472-26X1,2 MM |
| 344 | 3600100020 | Support Disc |
| 345 | 3600929008 | Roller Thrust Bearing |
| 346 | 1900210131 | O-Ring 30X2,5 MM |
| 347 | 1610910088 | Needle bearing |
| 350 | 3606333043 | Bevel Gear Z=10 |
| 351 | 3606334046 | Crown Gear Z=14 |
| 352 | 2916660045 | Spring retaining ring DIN 472-21X1MM |
| 354 | 3600900018 | Groove ball bearing |
| 355 | 3600100017 | Friction Washer |
| 356 | 3600929005 | Roller Thrust Bearing |
| 357 | 2600914004 | Needle bearing |
| 358 | 3603100008 | Needle Roller |
| 359 | 1600101648 | Shim Thick 0,1 MM |
| 359 | 1600101650 | Shim Thick 0,05 MM |
| 360 | 3600320016 | Guide Sleeve |
| 361 | 1604611004 | Compression Spring |
| 362 | 1603124060 | Pressure Spindle |
| 363 | 3608870173 | Shim |
| 363 | 3608870176 | Shim |
| 4 | 1600117001 | Air-Deflector Ring |
| 5 | 3605700100 | Intermediate Bearing |
| 56 | 3607200016 | Switch |
| 57 | 3605500068 | Housing Cover |
| 58 | 3605130031 | Switch Housing |
| 59 | 1600703012 | Grommet Ø5,5-Ø8,3X75 MM |
| 6 | 1900905017 | Groove ball bearing 9X24X7 |
| 60 | 3604412007 | Cable |
| 60 | 3604462004 | Helical Conductor |
| 61 | 2910021054 | Socket head cap screw DIN 84-AM3X12-8.8 |
| 62 | 2910011048 | Socket head cap screw DIN 84-AM3X6-5.8 |
| 63 | 1601302001 | Fastening Clamp |
| 64 | 1900703002 | Hose-Termination Sleeve |
| 65 | 1607200046 | Reversing Switch |
| 650 | 2601310002 | Suspension Loop |
| 66 | 2910091046 | Pan head screw DIN 85-AM3,5X15-4.8 |
| 67 | 3601321004 | Clamping Saddle |
| 7 | 2916640006 | Spring retaining ring DIN 471 9X1MM |
| 71 | 3602099005 | Control Lever |
| 72 | 2910761126 | Countersunk-Head Screw DIN 963-M4X16-4.8 |
| 73 | 2916070005 | Serrated Lock-Washer DIN 6798-A3,2-FST |
| 75 | 2912081116 | Set screw DIN 915-M4X6-45H |
| 76 | 3604484003 | Connector Plug |
| 77 | 3600707005 | Shrinkable Tube |
| 8 | 3600910002 | Needle-Roller Bearing |
| 9 | 3601321002 | Clamping Saddle |
| 95 | 3601106054 | Nameplate |
| 98 | 3601103012 | Sticker |
