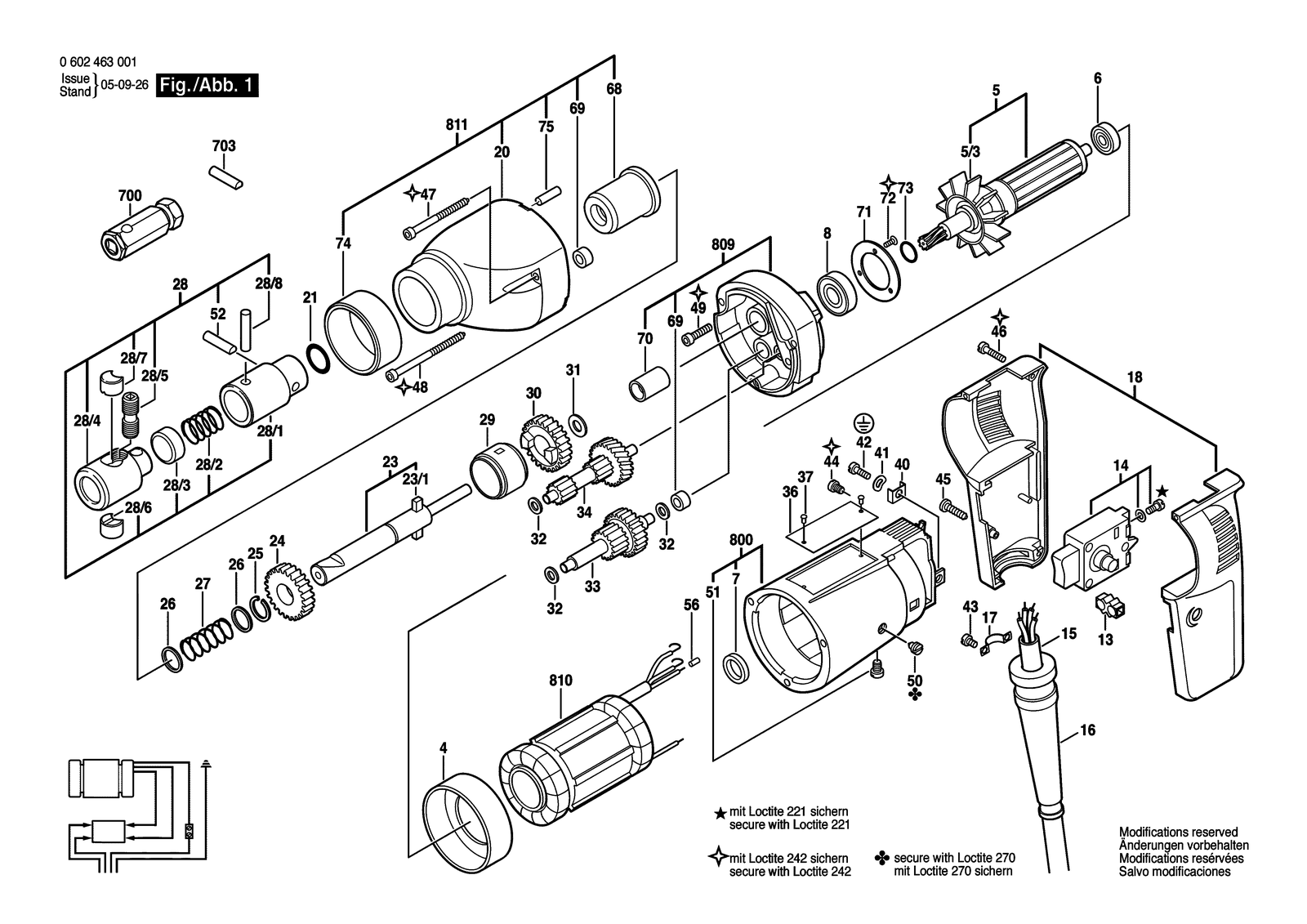

Bosch 0602463001 thread cutter: exploded parts diagram, 1 sheet, 69 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602463001: 69 positions on 1 sheet
Bosch 0602463001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 1901091012 | Socket-Terminal Strip 1X1,5 MM/2 |
| 14 | 1607200040 | On-Off Switch |
| 15 | 3604462058 | Pvc-Insulated Cable |
| 16 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 17 | 1601302014 | Fastening Clamp |
| 18 | 3605132045 | Handle |
| 20 | 2605806270 | Gear Housing |
| 21 | 1900210009 | O-Ring 12X2 MM |
| 23 | 2603124066 | Drive Shaft |
| 23/1 | 2603122033 | Driver Pin |
| 24 | 1606325010 | Cylindrical Gear Z=40 |
| 25 | 1600224025 | Retaining ring |
| 26 | 2600101513 | Plain Washer |
| 27 | 2604630000 | Compression Spring |
| 28 | 2608573000 | Two-Jaw Drill Juck M4-M12 |
| 28/1 | 1600328021 | Carrier |
| 28/2 | 1604617002 | Compression Spring |
| 28/3 | 1600506000 | Spring Retainer |
| 28/4 | 1603219006 | Carrier |
| 28/5 | 1613100012 | Straight Pin |
| 28/6 | 1600390002 | Clamping jaws M 12X1,5 |
| 28/7 | 1600390003 | Clamping jaws Lefthand Threads M 12X1,5 |
| 28/8 | 1613100012 | Straight Pin |
| 29 | 2600400023 | Spacer Bushing |
| 30 | 1606325011 | Cylindrical Gear Z=37 |
| 31 | 1600100631 | Shim Thick 0,5 MM |
| 32 | 2600100613 | Shim 0,50 MM |
| 33 | 1606328092 | Spindle With Gear Z=18/35 |
| 34 | 1606328093 | Spindle With Gear Z=11/12/34 |
| 36 | 3601106053 | Nameplate |
| 37 | 3603133000 | Grooved Nail |
| 4 | 1600502005 | Air-Deflector Ring |
| 40 | 3601321001 | Clamping Saddle |
| 41 | 3600150006 | Spring Washer Ø4,2 MM |
| 42 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 43 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 44 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 45 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 46 | 2910011128 | Socket head cap screw DIN 84-AM4X18-5.8 |
| 47 | 2910141140 | Hex Socket Head Cap Screw DIN 912-M 4X45-8.8 |
| 48 | 3603414001 | Hex Socket Head Cap Screw |
| 49 | 2910141122 | Hex Socket Head Cap Screw DIN 912-M 4X12-8.8 |
| 5 | 3604080020 | Rotor |
| 5/3 | 1606610105 | Fan |
| 50 | 3603402000 | Set screw |
| 51 | 2910011115 | Socket head cap screw DIN 84-AM4X5-5.8 |
| 52 | 1603110003 | Gripping Wedge Ø 5X18 MM/3,0 MM |
| 52 | 1603110004 | Gripping Wedge Ø 5X18 MM/3,3 MM |
| 52 | 3603111003 | Gripping Wedge 5X18 MM |
| 56 | 3604477008 | End Splice |
| 6 | 1900900015 | Groove ball bearing |
| 68 | 2600322043 | Bushing |
| 69 | 2600300058 | Bushing |
| 7 | 3600206002 | Rubber Ring 6MM,Ø12XØ16,4X3MM |
| 70 | 3600328036 | Bushing |
| 700 | 3608502000 | Tap Chuck |
| 703 | 1603110000 | Gripping Wedge Ø 5X18 MM/3,6 MM |
| 71 | 3600190012 | Retaining Washer |
| 72 | 2910780050 | Countersunk-Head Screw DIN 963-M3X8-8.8 |
| 73 | 1600210045 | O-Ring 8,0X1,0 MM |
| 74 | 2600400026 | Locating ring |
| 75 | 2917500120 | Straight Pin DIN 7-5H8X16-ST |
| 8 | 1900905018 | Ball Bearing 7X22X7 |
| 800 | 3605102022 | Motor Housing |
| 809 | 1605820179 | Bearing Housing |
| 810 | 1604229200 | Stator 265V/200HZ, 200V/150HZ |
| 810 | 1604229201 | Stator 200V/300HZ,135V/200HZ |
| 810 | 1604229202 | Stator 72V/200HZ,110V/300HZ |
| 811 | 2605806097 | Gear Housing |
