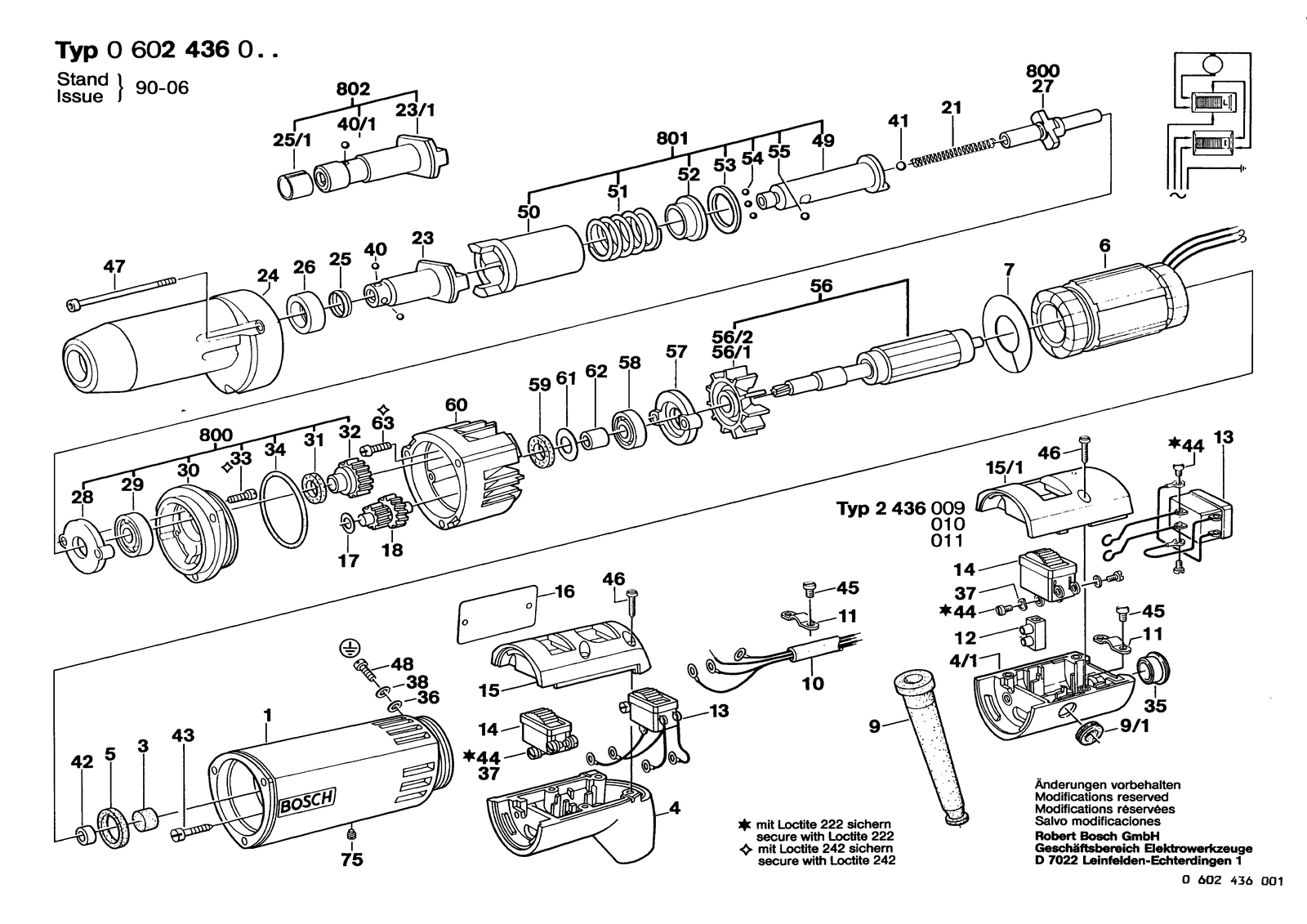

Bosch 0602436075 impact wrench: exploded parts diagram, 1 sheet, 136 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602436075: 136 positions on 1 sheet
Bosch 0602436075 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102048 | Motor Housing |
| 1 | 3605102062 | Motor Housing |
| 1 | 3605102015 | Motor Housing |
| 10 | 1604422024 | Pvc-Insulated Cable |
| 10 | 1604461025 | Elec. Cable W/Connection |
| 10 | 3604462048 | Elec. Cable W/Connection |
| 10 | 3604462048 | Elec. Cable W/Connection |
| 11 | 1601302001 | Fastening Clamp |
| 11 | 1601302001 | Fastening Clamp |
| 12 | 1901091014 | Strip Terminal |
| 13 | 1607200067 | Switch |
| 13 | 1607200067 | Switch |
| 14 | 1607200066 | Reversing Switch |
| 14 | 1607200066 | Reversing Switch |
| 15 | 3605500067 | Housing Cover |
| 15 | 3605500010 | Housing Cover |
| 15/1 | 3605130033 | Housing Cover |
| 16 | 3601106053 | Nameplate |
| 16 | 3601106054 | Nameplate |
| 16 | 3601100002 | Nameplate |
| 17 | 1420100666 | Shim Thick 0,3 MM |
| 17 | 1420100666 | Shim Thick 0,3 MM |
| 18 | 1606328061 | Spindle With Gear Z=13/25 |
| 18 | 1606328061 | Spindle With Gear Z=13/25 |
| 21 | 1604626001 | Compression Spring |
| 21 | 1604626001 | Compression Spring |
| 23 | 1606455033 | Coupling Half |
| 23 | 3606455004 | Coupling Half 3/8" |
| 23 | 3606455014 | Coupling Half |
| 24 | 1605806262 | Gear Housing |
| 24 | 3605806122 | Spindle Bearing |
| 24 | 3605806122 | Spindle Bearing |
| 25 | 1600224011 | Spring Lock Washer |
| 25 | 3600224007 | Retaining snap ring |
| 26 | 1600202024 | Spacer Ring |
| 26 | 1600202024 | Spacer Ring |
| 27 | 1603124059 | Drive Shaft |
| 27 | 1603124059 | Drive Shaft |
| 28 | 1600501030 | Conical Spring Washer |
| 28 | 1600501030 | Conical Spring Washer |
| 29 | 1900900428 | Groove ball bearing 6X19X6 |
| 29 | 1900900428 | Groove ball bearing 6X19X6 |
| 3 | 1603212000 | Lubricating Felt |
| 3 | 1603212000 | Lubricating Felt |
| 30 | 3605820057 | Bearing Flange |
| 30 | 3605820057 | Bearing Flange |
| 31 | 1600205025 | Felt Washer |
| 31 | 1600205025 | Felt Washer |
| 32 | 1606300000 | Cylindrical Gear Z=21 |
| 32 | 1606300000 | Cylindrical Gear Z=21 |
| 33 | 2910021052 | Socket head cap screw DIN 84-AM3X10-8.8 |
| 33 | 2910001052 | Socket head cap screw DIN 84-AM3X10-4.8 |
| 34 | 1600210010 | O-Ring 35,0X1,5 MM |
| 34 | 1600210010 | O-Ring 35,0X1,5 MM |
| 35 | 1603203025 | Plug |
| 35 | 3601321004 | Clamping Saddle |
| 36 | 2916010409 | Plain Washer DIN 46 255-DPG 9 |
| 36 | 3601321002 | Clamping Saddle |
| 37 | 2916060003 | Spring Washer A 3 DIN 137-ST |
| 37 | 2916060003 | Spring Washer A 3 DIN 137-ST |
| 38 | 1600150006 | Spring Washer DIN 137-A4 |
| 38 | 3600150009 | Spring Washer |
| 4 | 3605132046 | Handle |
| 4 | 3605132002 | Handle |
| 4/1 | 1605130022 | Switch Housing |
| 40 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 40 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 41 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 41 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 42 | 1900301003 | Sintered-Metal Bushing J4G7X8R6X6DIN1850 |
| 42 | 1900301003 | Sintered-Metal Bushing J4G7X8R6X6DIN1850 |
| 43 | 2910211025 | Tapping Screw DIN 7971-BZ4,2X13 |
| 43 | 2910211025 | Tapping Screw DIN 7971-BZ4,2X13 |
| 44 | 2910091046 | Pan head screw DIN 85-AM3,5X15-4.8 |
| 44 | 2910091046 | Pan head screw DIN 85-AM3,5X15-4.8 |
| 45 | 2910011048 | Socket head cap screw DIN 84-AM3X6-5.8 |
| 45 | 2910011048 | Socket head cap screw DIN 84-AM3X6-5.8 |
| 46 | 2910021054 | Socket head cap screw DIN 84-AM3X12-8.8 |
| 46 | 2910211013 | Tapping Screw DIN 7971-BZ3,5X19 |
| 46 | 2910211013 | Tapping Screw DIN 7971-BZ3,5X19 |
| 47 | 2910021076 | Socket head cap screw DIN 84-BM3X55-8.8 |
| 47 | 2910141074 | Hex Socket Head Cap Screw DIN 912-M3X50-8.8 |
| 47 | 2910021076 | Socket head cap screw DIN 84-BM3X55-8.8 |
| 48 | 2910110118 | Pan head screw DIN 85-AM4X8-MS |
| 48 | 2910110050 | Pan head screw DIN 85-AM3X8-MS |
| 49 | 1603123013 | Drive Shaft |
| 49 | 1603123013 | Drive Shaft |
| 5 | 1600205026 | Felt Washer |
| 5 | 1600205026 | Felt Washer |
| 50 | 1608710000 | Coupling Half |
| 50 | 1608710000 | Coupling Half |
| 51 | 1604618000 | Compression Spring |
| 51 | 1604618000 | Compression Spring |
| 52 | 1600222008 | Backup ring |
| 52 | 1600222008 | Backup ring |
| 53 | 1600200011 | Retaining snap ring |
| 53 | 1600200011 | Retaining snap ring |
| 54 | 1903230004 | Ball DIN 5401-3 Mm-Iii-St |
| 54 | 1903230004 | Ball DIN 5401-3 Mm-Iii-St |
| 55 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 55 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 56 | 1604080053 | Rotor Without Winding |
| 56 | 1604080053 | Rotor Without Winding |
| 57 | 1600501030 | Conical Spring Washer |
| 57 | 1600501030 | Conical Spring Washer |
| 58 | 1900900428 | Groove ball bearing 6X19X6 |
| 58 | 1900900428 | Groove ball bearing 6X19X6 |
| 59 | 1600205025 | Felt Washer |
| 59 | 1600205025 | Felt Washer |
| 6 | 1604229181 | Stator 265V/200HZ |
| 6 | 1604229182 | Stator 200V/300HZ,135V/200HZ |
| 6 | 1604229183 | Stator 72V/200HZ,110V/300HZ |
| 6 | 1604229186 | Stator 42V/200HZ |
| 6 | 1604229181 | Stator 265V/200HZ |
| 6 | 1604229183 | Stator 72V/200HZ,110V/300HZ |
| 60 | 3605806105 | Gear Housing |
| 60 | 3605806105 | Gear Housing |
| 61 | 3600101016 | Shim 0,60 MM |
| 61 | 3600101016 | Shim 0,60 MM |
| 62 | 1600300044 | Intermediate Ring |
| 62 | 1600300044 | Intermediate Ring |
| 63 | 2910001052 | Socket head cap screw DIN 84-AM3X10-4.8 |
| 63 | 2910001052 | Socket head cap screw DIN 84-AM3X10-4.8 |
| 7 | 1600117001 | Air-Deflector Ring |
| 7 | 1600117001 | Air-Deflector Ring |
| 75 | 2912081116 | Set screw DIN 915-M4X6-45H |
| 75 | 2912081116 | Set screw DIN 915-M4X6-45H |
| 800 | 1605820125 | Intermediate Bearing |
| 800 | 1605820125 | Intermediate Bearing |
| 801 | 1608710001 | Impact Mechanism |
| 801 | 1608710001 | Impact Mechanism |
| 802 | 3606455021 | Coupling Half |
| 802 | 3606455021 | Coupling Half |
| 9 | 1600703012 | Grommet Ø5,5-Ø8,3X75 MM |
| 9 | 1600703012 | Grommet Ø5,5-Ø8,3X75 MM |
| 9/1 | 1600312005 | Grommet |
