Bosch 0602434001

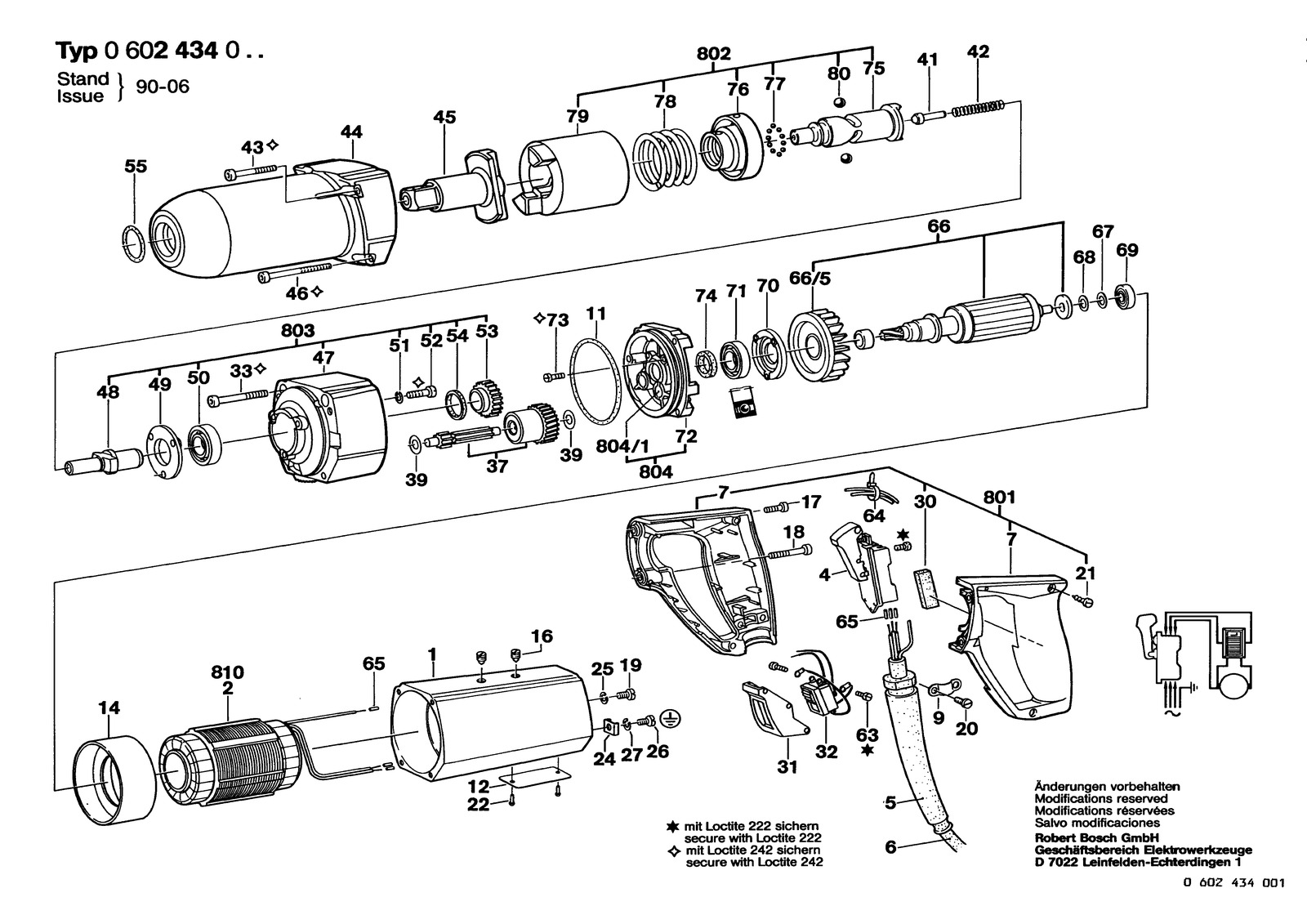

Bosch 0602434001 impact wrench: exploded parts diagram, 1 sheet, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602434001: 61 positions on 1 sheet
Bosch 0602434001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102052 | Motor Housing |
| 11 | 1600210006 | O-Ring 74,0X3,0 MM |
| 12 | 3601106053 | Nameplate |
| 14 | 1600209002 | Air-Deflector Ring |
| 16 | 1603402002 | Set screw |
| 17 | 2910141154 | Hex Socket Head Cap Screw DIN 912-M5X12-8.8 |
| 18 | 2910141164 | Hex Socket Head Cap Screw DIN 912-M 5X25-8.8 |
| 19 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 2 | 1604229096 | Stator 265V/200HZ, 200V/150HZ |
| 20 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 21 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 22 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 24 | 3601321001 | Clamping Saddle |
| 25 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 26 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 27 | 3600150006 | Spring Washer Ø4,2 MM |
| 30 | 1602381001 | Insulating Strip 33X10X6 MM |
| 31 | 3605130029 | Switch Housing Blue |
| 32 | 1607200031 | Reversing Switch |
| 33 | 2910141172 | Hex Socket Head Cap Screw DIN 912-M5X45-8.8 |
| 37 | 1606401007 | Multiplate Clutch |
| 39 | 1600100609 | Shim Thick 0,2 MM |
| 4 | 1607200038 | Switch |
| 41 | 1603121007 | Pressure Spindle |
| 42 | 1604611007 | Compression Spring |
| 43 | 2910141170 | Hex Socket Head Cap Screw DIN 912-M5X40-8.8 |
| 44 | 3605806115 | Spindle Bearing |
| 45 | 1606455031 | Coupling Half 3/4" |
| 46 | 2910141183 | Hex Socket Head Cap Screw DIN 912-M5X85-8.8 |
| 47 | 3605805017 | Bearing Housing |
| 48 | 1603123018 | Drive Shaft |
| 49 | 1600501062 | Bearing cover |
| 5 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 50 | 1900900303 | Groove ball bearing 15X35X11 |
| 51 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 52 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 53 | 1606317049 | Cylindrical Gear Z=32 |
| 54 | 1600108029 | Sealing disk |
| 55 | 1900210129 | O-Ring 28X3 MM |
| 6 | 3607030231 | Assembly Of Service Parts |
| 63 | 2910011046 | Socket head cap screw DIN 84-AM3X4-5.8 |
| 65 | 1900452003 | End Splice DIN 46 228-A2,5-7 |
| 66 | 1604080030 | Rotor Without Winding |
| 67 | 1420100023 | Shim Thick 0,10 MM |
| 68 | 1600100632 | Shim Thick 0,2 MM |
| 69 | 1900900005 | Magneto Ball Bearing E 7 DIN 615 |
| 70 | 1600501019 | Bearing cover |
| 71 | 1600900001 | Groove ball bearing 17X35X10 |
| 73 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 74 | 1600108003 | Felt Disc |
| 75 | 1603123008 | Drive Shaft |
| 76 | 1600220015 | Backup ring |
| 77 | 1903230007 | Ball DIN 5401-4 Mm-Iii-St |
| 78 | 1604624005 | Compression Spring |
| 79 | 1608710018 | Striker |
| 80 | 1903230014 | Ball DIN 5401-8 MM Iii-St |
| 801 | 3605133009 | Handle |
| 802 | 1608710019 | Impact Mechanism |
| 803 | 1605805034 | Bearing Housing |
| 804 | 1605820038 | Bearing Flange |
| 9 | 1601303003 | Fastening Clamp |
