Bosch 0602413001

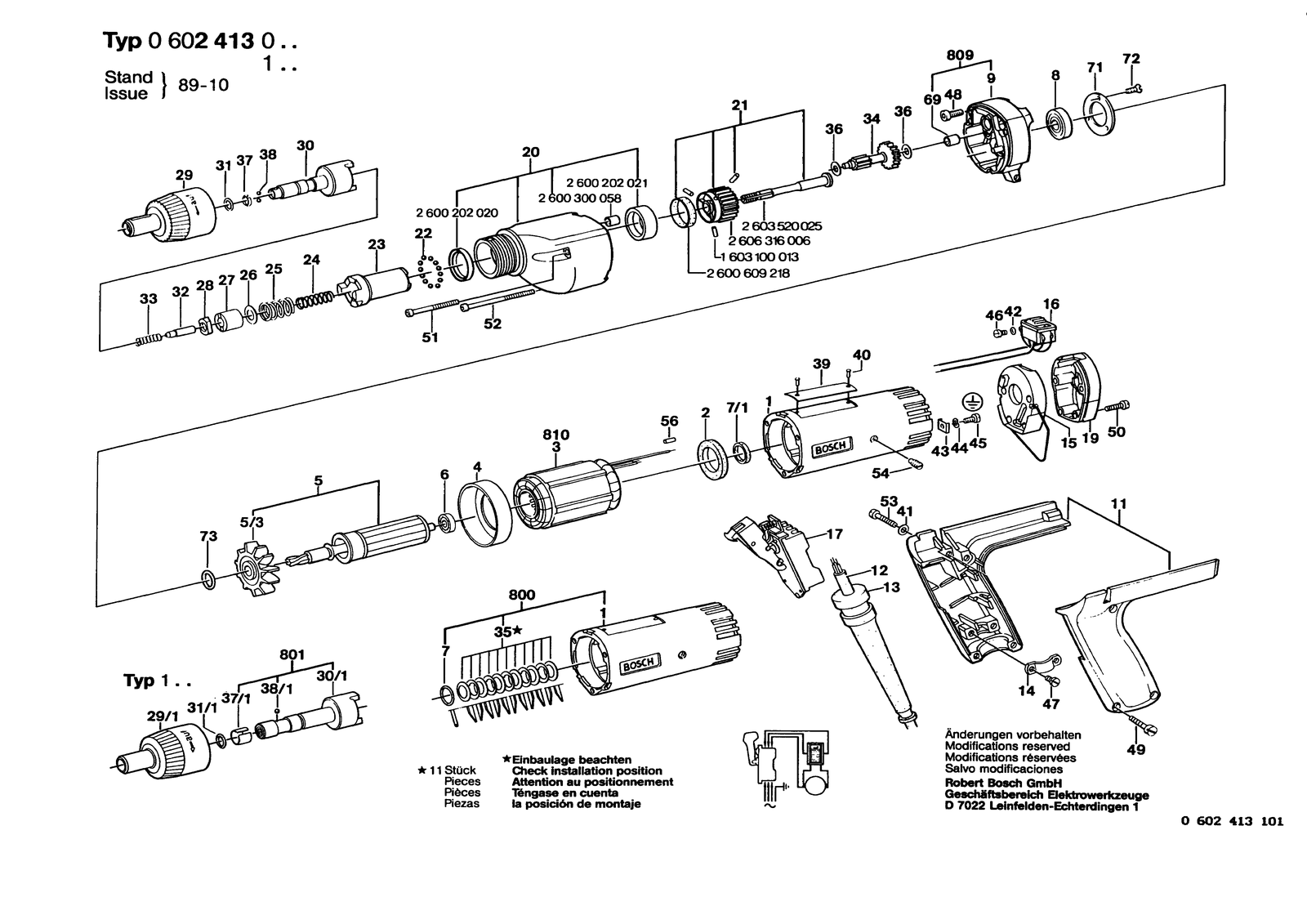

Bosch 0602413001 screwdriver: exploded parts diagram, 1 sheet, 127 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602413001: 127 positions on 1 sheet
Bosch 0602413001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 11 | 3605132044 | Handle |
| 11 | 3605132044 | Handle |
| 12 | 3604462049 | Elec. Cable W/Connection |
| 12 | 3604462049 | Elec. Cable W/Connection |
| 13 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 13 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 14 | 1601302014 | Fastening Clamp |
| 14 | 1601302014 | Fastening Clamp |
| 15 | 3600099005 | Connection Housing |
| 15 | 3600099005 | Connection Housing |
| 16 | 1607200043 | Reversing Switch |
| 16 | 1607200043 | Reversing Switch |
| 17 | 1607200038 | Switch |
| 17 | 1607200038 | Switch |
| 19 | 3605500071 | Sealing cap |
| 19 | 3605500071 | Sealing cap |
| 2 | 1600209011 | Seal Ring |
| 2 | 1600209011 | Seal Ring |
| 20 | 2605806227 | Gear Housing |
| 20 | 2605806227 | Gear Housing |
| 21 | 2606100052 | Spindle With Gear Z=37 |
| 21 | 2606100052 | Spindle With Gear Z=37 |
| 22 | 1903230004 | Ball DIN 5401-3 Mm-Iii-St |
| 22 | 1903230004 | Ball DIN 5401-3 Mm-Iii-St |
| 23 | 2606445000 | Coupling Half |
| 23 | 2606445000 | Coupling Half |
| 24 | 1604616010 | Compression Spring |
| 24 | 1604616010 | Compression Spring |
| 25 | 1604619005 | Compression Spring |
| 25 | 1604619005 | Compression Spring |
| 26 | 1600100607 | Shim |
| 26 | 1600100607 | Shim |
| 27 | 1600309004 | Bushing |
| 27 | 1600309004 | Bushing |
| 28 | 1603341000 | Round Nut |
| 28 | 1603341000 | Round Nut |
| 29 | 2600460001 | Guide Sleeve |
| 29 | 3600460003 | Guide Sleeve |
| 30 | 2606455002 | Carrier 6 Kt., 6,3 MM |
| 30 | 3606455016 | Carrier |
| 31 | 1900210103 | O-Ring 8,0X1,5 MM |
| 31 | 1900210106 | O-Ring 10X2 MM |
| 32 | 1603120022 | Pressure Spindle |
| 32 | 1603120022 | Pressure Spindle |
| 33 | 1604626002 | Compression Spring |
| 33 | 1604626002 | Compression Spring |
| 34 | 1606328086 | Spindle With Gear Z=14/34 |
| 34 | 1606328086 | Spindle With Gear Z=14/34 |
| 35 | 3600150013 | Disc Spring |
| 35 | 3600150013 | Disc Spring |
| 36 | 2600100613 | Shim 0,50 MM |
| 36 | 2600100613 | Shim 0,50 MM |
| 37 | 1600224011 | Spring Lock Washer |
| 37 | 3604682003 | Holding Spring |
| 38 | 1903230003 | Ball DIN 5401-2,5MM-III-ST |
| 38 | 1903230006 | Ball DIN 5401-3,5 Mm-Iii-St |
| 39 | 3601106053 | Nameplate |
| 39 | 3601106053 | Nameplate |
| 4 | 1600502005 | Air-Deflector Ring |
| 4 | 1600502005 | Air-Deflector Ring |
| 40 | 3603133000 | Grooved Nail |
| 40 | 3603133000 | Grooved Nail |
| 41 | 2916060006 | Spring Washer DIN 137-A5-FST |
| 41 | 2916060006 | Spring Washer DIN 137-A5-FST |
| 42 | 2916060003 | Spring Washer A 3 DIN 137-ST |
| 42 | 2916060003 | Spring Washer A 3 DIN 137-ST |
| 43 | 2916010409 | Plain Washer DIN 46 255-DPG 9 |
| 43 | 3601321001 | Clamping Saddle |
| 44 | 1600150006 | Spring Washer DIN 137-A4 |
| 44 | 3600150006 | Spring Washer Ø4,2 MM |
| 45 | 2910110116 | Pan head screw DIN 85 AM 4X6-MS |
| 45 | 2910110118 | Pan head screw DIN 85-AM4X8-MS |
| 46 | 2910091046 | Pan head screw DIN 85-AM3,5X15-4.8 |
| 46 | 2910091046 | Pan head screw DIN 85-AM3,5X15-4.8 |
| 47 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 47 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 48 | 2910141122 | Hex Socket Head Cap Screw DIN 912-M 4X12-8.8 |
| 48 | 2910141122 | Hex Socket Head Cap Screw DIN 912-M 4X12-8.8 |
| 49 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 49 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 5 | 3604080020 | Rotor |
| 5 | 3604080020 | Rotor |
| 5/3 | 1606610105 | Fan |
| 50 | 2910141131 | Hex Socket Head Cap Screw DIN 912-M 4X22-8.8 |
| 50 | 2910141131 | Hex Socket Head Cap Screw DIN 912-M 4X22-8.8 |
| 51 | 2910141140 | Hex Socket Head Cap Screw DIN 912-M 4X45-8.8 |
| 51 | 2910141140 | Hex Socket Head Cap Screw DIN 912-M 4X45-8.8 |
| 52 | 3603414001 | Hex Socket Head Cap Screw |
| 52 | 3603414001 | Hex Socket Head Cap Screw |
| 53 | 2910011162 | Socket head cap screw DIN 84-AM5X20-5.8 |
| 53 | 2910011162 | Socket head cap screw DIN 84-AM5X20-5.8 |
| 54 | 3603402000 | Set screw |
| 54 | 3603402000 | Set screw |
| 56 | 3604477008 | End Splice |
| 56 | 3604477008 | End Splice |
| 6 | 1900905015 | Groove ball bearing 625-2Z DIN 625 |
| 6 | 1900905015 | Groove ball bearing 625-2Z DIN 625 |
| 69 | 2600300058 | Bushing |
| 69 | 2600300058 | Bushing |
| 7 | 3600210039 | O-Ring 12,0X2,25 MM |
| 7 | 3600210039 | O-Ring 12,0X2,25 MM |
| 7/1 | 3600206002 | Rubber Ring 6MM,Ø12XØ16,4X3MM |
| 7/1 | 3600206002 | Rubber Ring 6MM,Ø12XØ16,4X3MM |
| 71 | 3600190012 | Retaining Washer |
| 71 | 3600190012 | Retaining Washer |
| 72 | 2910780050 | Countersunk-Head Screw DIN 963-M3X8-8.8 |
| 72 | 2910780050 | Countersunk-Head Screw DIN 963-M3X8-8.8 |
| 73 | 1600210045 | O-Ring 8,0X1,0 MM |
| 73 | 1600210045 | O-Ring 8,0X1,0 MM |
| 8 | 1900905017 | Groove ball bearing 9X24X7 |
| 8 | 1610905011 | Groove ball bearing 9X24X7 |
| 800 | 3605102028 | Motor Housing |
| 800 | 3605102028 | Motor Housing |
| 801 | 3606455019 | Carrier |
| 801 | 3606455019 | Carrier |
| 809 | 1605820162 | Bearing Housing |
| 809 | 1605820162 | Bearing Housing |
| 810 | 1604229200 | Stator 265V/200HZ, 200V/150HZ |
| 810 | 1604229201 | Stator 200V/300HZ,135V/200HZ |
| 810 | 1604229202 | Stator 72V/200HZ,110V/300HZ |
| 810 | 1604229204 | Stator 220V/360HZ |
| 810 | 1604229200 | Stator 265V/200HZ, 200V/150HZ |
| 810 | 1604229201 | Stator 200V/300HZ,135V/200HZ |
| 810 | 1604229202 | Stator 72V/200HZ,110V/300HZ |
| 810 | 1604229204 | Stator 220V/360HZ |
| 9 | 3605820046 | Bearing Housing |
| 9 | 3605820046 | Bearing Housing |
