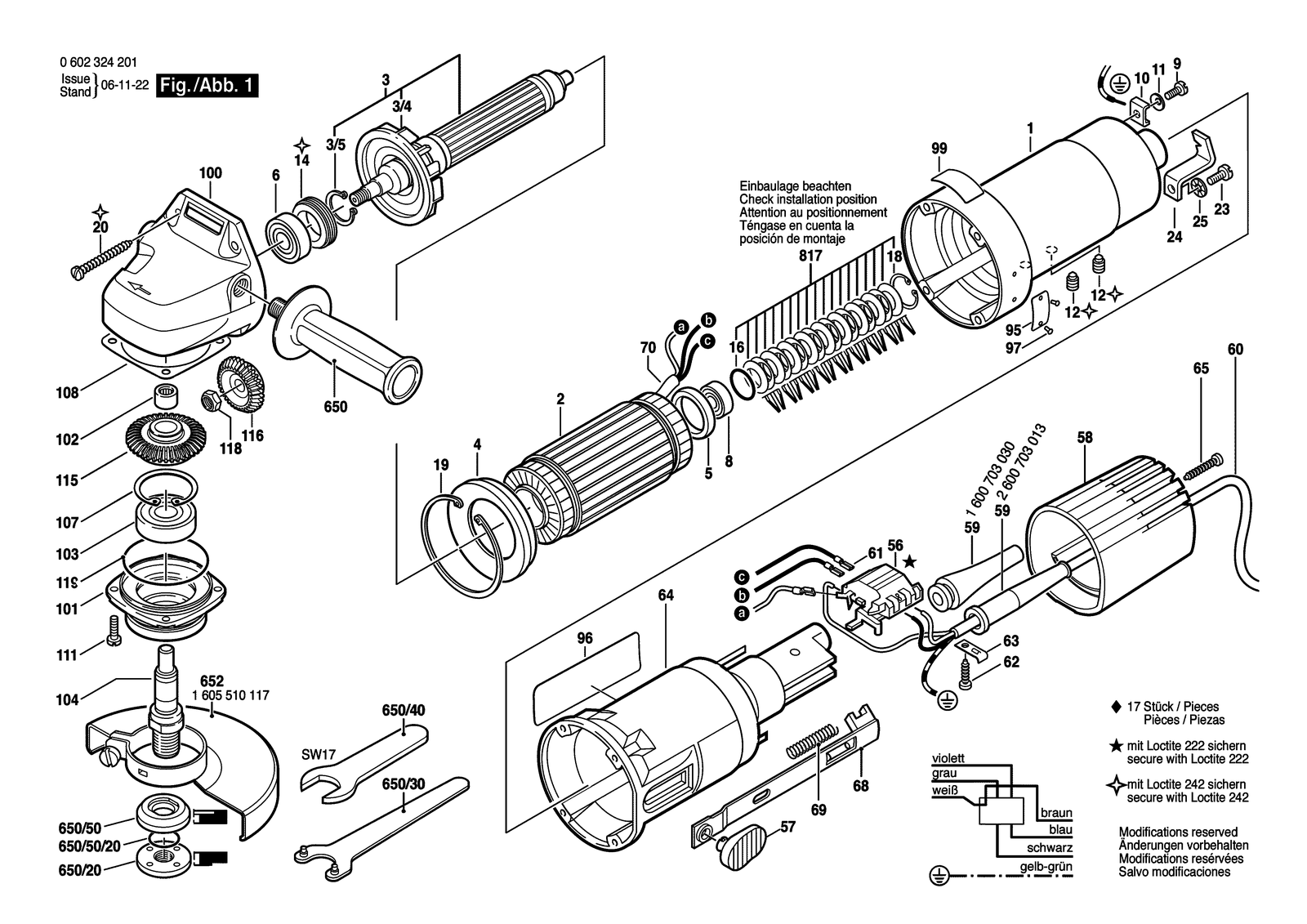

Bosch 0602324201 angle grinder: exploded parts diagram, 1 sheet, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602324201: 67 positions on 1 sheet
Bosch 0602324201 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102069 | Motor Housing |
| 10 | 3601321001 | Clamping Saddle |
| 100 | 3605806136 | Gear Housing |
| 101 | 1607000936 | Bearing Flange |
| 102 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 103 | 3600905069 | Groove ball bearing |
| 104 | 1607000933 | Assembly Of Service Parts M14 |
| 107 | 2916660013 | Retaining clip DIN 472-32X1,2 MM |
| 108 | 1600136010 | Shim Thick 0,2 MM |
| 108 | 1600136011 | Shim Thick 0,3 MM |
| 108 | 1600136012 | Shim Thick 0,1 MM |
| 11 | 3600150006 | Spring Washer Ø4,2 MM |
| 111 | 2914471401 | Thread-forming tap. Screw DIN 7500-TM4X12 |
| 115 | 3606334073 | Crown Gear Z=37 |
| 115 | 3606334075 | Crown Gear Z=37 |
| 116 | 3606333049 | Crown Gear Z=16 |
| 116 | 3606333050 | Crown Gear Z=21 |
| 118 | 2915011009 | Hex Nut DIN 934-M8-8-A |
| 119 | 3600210124 | O-Ring Red 46,0X1,1 MM |
| 12 | 3603402000 | Set screw |
| 14 | 3603344015 | Threaded Ring |
| 16 | 1900210112 | O-Ring 15X2 MM |
| 18 | 2916660005 | Spring retaining ring DIN 472-19X1MM |
| 19 | 3600224032 | Spring retaining ring |
| 2 | 3604229098 | Stator 135V/200HZ, 200V/300HZ |
| 2 | 3604229099 | Stator 220V/360HZ |
| 2 | 3604229100 | Stator 72V/300HZ |
| 2 | 3604229101 | Stator 72V/200HZ, 110V/300HZ, 135V/200HZ |
| 2 | 3604229102 | Stator 265V/200HZ |
| 20 | 3603412003 | Slotted Shoulder Screw |
| 23 | 2910101118 | Pan head screw DIN 85-AM4X8-8.8 |
| 24 | 3601303006 | Retaining Bracket |
| 25 | 2916030006 | Toothed lock washer DIN 6797-A4,3-FST |
| 3 | 3604080039 | Rotor Without Winding |
| 3/4 | 3606610008 | Fan |
| 3/5 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 4 | 3600209009 | Air-Deflector Ring |
| 5 | 1600209011 | Seal Ring |
| 56 | 3607200024 | Switch |
| 57 | 1602026057 | Switch Handle Black |
| 57 | 1602026060 | Switch Handle Gray |
| 58 | 3600508025 | Housing Cover |
| 59 | 2600703013 | Grommet Ø7,6-Ø8,2X95 MM |
| 6 | 3600905070 | Groove ball bearing |
| 60 | 3604462050 | Elec. Cable W/Connection |
| 61 | 1904478007 | Receptacle B2,8-1DIN46 247BZ-BD |
| 62 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 63 | 1601302017 | Fastening Clamp |
| 64 | 3605108108 | Housing |
| 65 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 650 | 160202509T | Auxiliary Handle |
| 650/20 | 2603340013 | Round Nut |
| 650/30 | 1607950052 | Pin-Type Face-Wrench |
| 650/40 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 650/50 | 2605703023 | Fastening Flange |
| 650/50/20 | 1600210039 | O-Ring 20,35X1,78 MM |
| 652 | 1600A0136N | Protective Cover |
| 68 | 1602319002 | Adjusting Slide |
| 69 | 1604611026 | Compression Spring |
| 70 | 1610712034 | Shrinkable Tube |
| 8 | 3600905068 | Groove ball bearing |
| 817 | 3607031284 | Assembly Of Service Parts |
| 9 | 2910110118 | Pan head screw DIN 85-AM4X8-MS |
| 95 | 1611104002 | Nameplate |
| 96 | 3601110162 | Manufacturer's nameplate |
| 97 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 99 | 3601119236 | Reference Plate |
