Bosch 0602320001

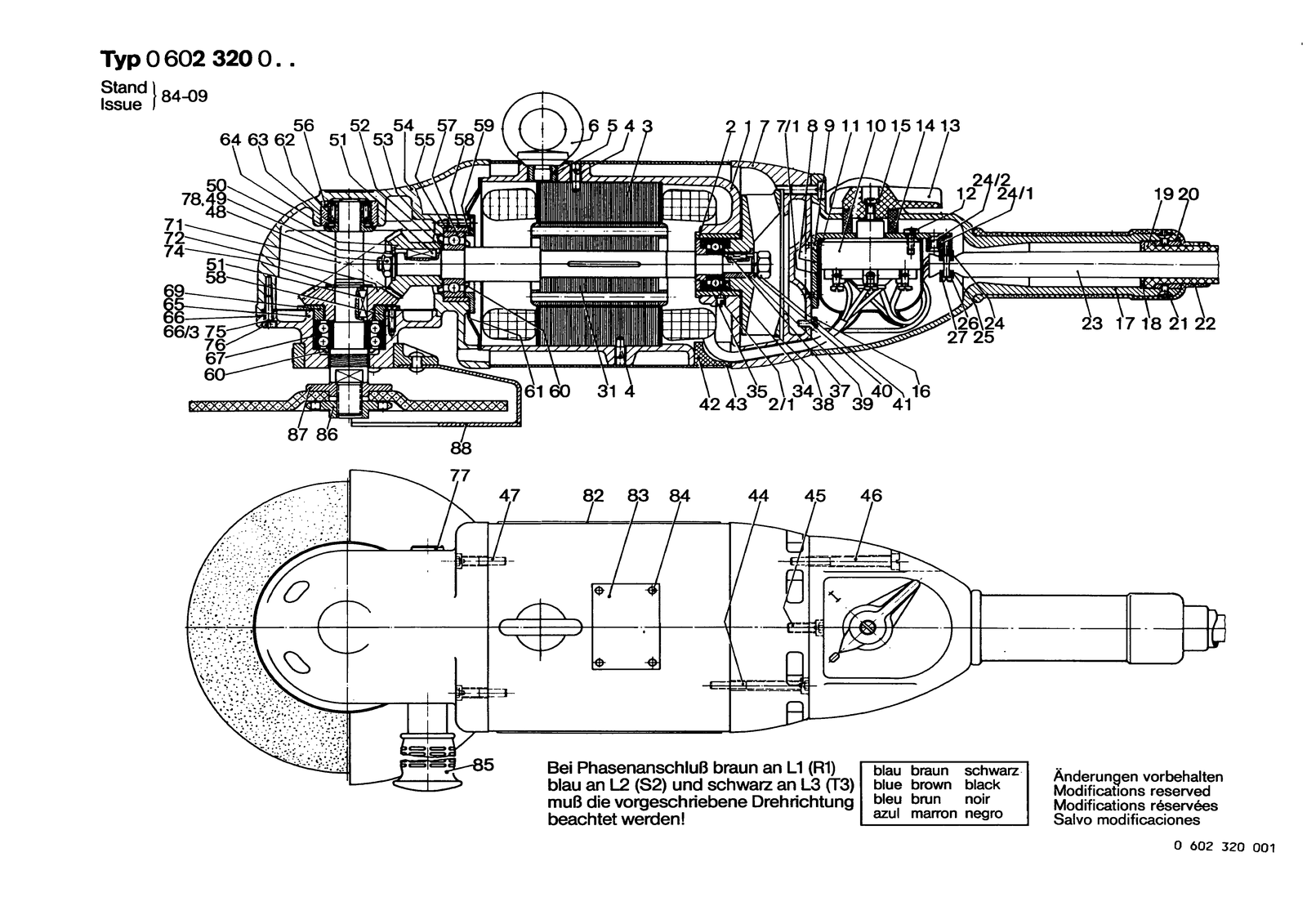

Bosch 0602320001 angle grinder: exploded parts diagram, 1 sheet, 97 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602320001: 97 positions on 1 sheet
Bosch 0602320001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3609200141 | Motor Housing |
| 10 | 3609200150 | On-Off Switch |
| 10 | 3609200206 | On-Off Switch |
| 11 | 3609200151 | Cover |
| 12 | 2910090118 | Pan head screw DIN 85-AM4X8-4.8 |
| 12 | 2910810152 | Raised counters head scre DIN 964-M5X10-4.8 |
| 13 | 3609200152 | Control Lever |
| 13 | 3609200207 | Control Lever |
| 14 | 3609200153 | Felt Washer |
| 15 | 2910091116 | Pan head screw DIN 85-M4X6-4.8 |
| 15 | 2910092191 | Pan head screw DIN 85-M6X10-4.8 |
| 16 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 16 | 2916060005 | Spring Washer DIN 137-A 4-ST |
| 16 | 3609200154 | Reference Plate |
| 17 | 3609200155 | Handle |
| 17 | 3609200208 | Handle |
| 18 | 3609200156 | Plain Washer |
| 19 | 3609200157 | Protective Sheath |
| 2 | 3609200142 | Guide Bushing |
| 2/1 | 3609200143 | Set screw |
| 20 | 3609200158 | Set ring |
| 21 | 2910810116 | Raised counters head scre DIN 964-M4X6-4.8 |
| 22 | 3609200159 | Insulation Tubing |
| 23 | 3609200228 | Cable |
| 23 | 3609200229 | Cable |
| 24 | 3609200161 | Clamping Piece |
| 24 | 3609200162 | Clamping Piece |
| 24 | 3609200210 | Clamping Piece |
| 24/1 | 3609200211 | Clamping Piece |
| 24/2 | 2917050692 | Countersunk-Head Rivet DIN 661 4X15 Al |
| 25 | 3609200006 | Clamping Piece |
| 26 | 3609200163 | Spring Lock Washer |
| 27 | 2910090096 | Pan head screw DIN 85-M3,5X25-4.8 |
| 27 | 3609200212 | Oval-Head Screw |
| 3 | 3609200144 | Stator 265V/200HZ |
| 3 | 3609200203 | Stator 200V/300HZ |
| 3 | 3609200204 | Stator 72V/200HZ |
| 31 | 3609200164 | Rotor |
| 34 | 3609200165 | Shim |
| 35 | 1900905225 | Groove ball bearing 12X32X10 |
| 37 | 1902300021 | Parallel Key A 3X3X10DIN6885ST 50 |
| 38 | 3609200166 | Fan |
| 39 | 3609200167 | Bushing |
| 4 | 2912050193 | Set screw DIN 417 M 6X12-5.8 |
| 40 | 2916580004 | Spring Lock Washer DIN 7980-8 |
| 41 | 2915010409 | Hex Nut M 8 DIN 934-M-MS |
| 42 | 3609200168 | Seal |
| 43 | 3609200169 | Protection Sleeve |
| 44 | 2910370174 | Hex Socket Head Cap Screw DIN 6912-M5X50-8.8 |
| 45 | 2910370197 | Hex Socket Head Cap Screw DIN 6912-M6X16-8.8 |
| 46 | 3609200170 | Socket head cap screw |
| 46 | 3609200214 | Socket head cap screw |
| 47 | 2910370164 | Hex Socket Head Cap Screw DIN 6912-M5X25-8.8 |
| 48 | 3609200171 | Hex Nut |
| 49 | 2916010016 | Plain Washer A 8,4 DIN 125-ST |
| 5 | 3609200145 | Threaded Fitting |
| 50 | 3609200234 | Bevel-Gear Transmission |
| 51 | 3609200173 | Parallel Key |
| 52 | 3609200174 | Shim |
| 52 | 3609200175 | Shim |
| 53 | 3609200176 | Shim |
| 54 | 3609200177 | Gear Housing |
| 55 | 3609200178 | Bushing |
| 56 | 3609200179 | Bushing |
| 57 | 1900905227 | Groove ball bearing 6203-2 Z DIN 625 |
| 58 | 2910780122 | Countersunk-Head Screw DIN 963-M4X12-8.8 |
| 59 | 3609200180 | Cover Plate |
| 6 | 3609200146 | Lifting Eye Bolt |
| 60 | 3609200181 | Seal Ring |
| 61 | 3609200182 | Cover Disc |
| 62 | 1610910049 | Needle-Roller Bearing |
| 63 | 3609200183 | Spring retaining ring |
| 64 | 3609200184 | Protective Ring |
| 65 | 3609200185 | Pivot Plate |
| 66 | 3609200186 | Shim |
| 66 | 3609200187 | Shim |
| 66/3 | 3609200188 | O-Ring |
| 67 | 3609200189 | Ang. Contact Ball Bearing |
| 69 | 3609200190 | Cover Plate |
| 7 | 3609200147 | Fan Housing |
| 7/1 | 3609200148 | Insulating Strip |
| 71 | 3609200191 | Drive Shaft |
| 74 | 3609200193 | Spring retaining ring |
| 75 | 2916710601 | Flat Seal Ring A 5X9 DIN 7603-CU |
| 76 | 2910370158 | Hex Socket Head Cap Screw DIN 6912-M5X16-8.8 |
| 77 | 3609200194 | Protective Cap |
| 8 | 3609200149 | Mounting Bracket |
| 8 | 3609200205 | Mounting Bracket |
| 82 | 3601110105 | Manufacturer's nameplate |
| 83 | 3601100004 | Nameplate |
| 84 | 3609200222 | Grooved Nail |
| 85 | 3601103001 | Sticker |
| 85 | 3609200195 | Auxiliary Handle |
| 86 | 3609200196 | Clamping-Flange |
| 87 | 3609200197 | Clamping-Flange |
| 88 | 3609200202 | Protective Cover |
| 9 | 2917050650 | Countersunk-Head Rivet DIN 661 3X10 Al |
