Bosch 0602318001

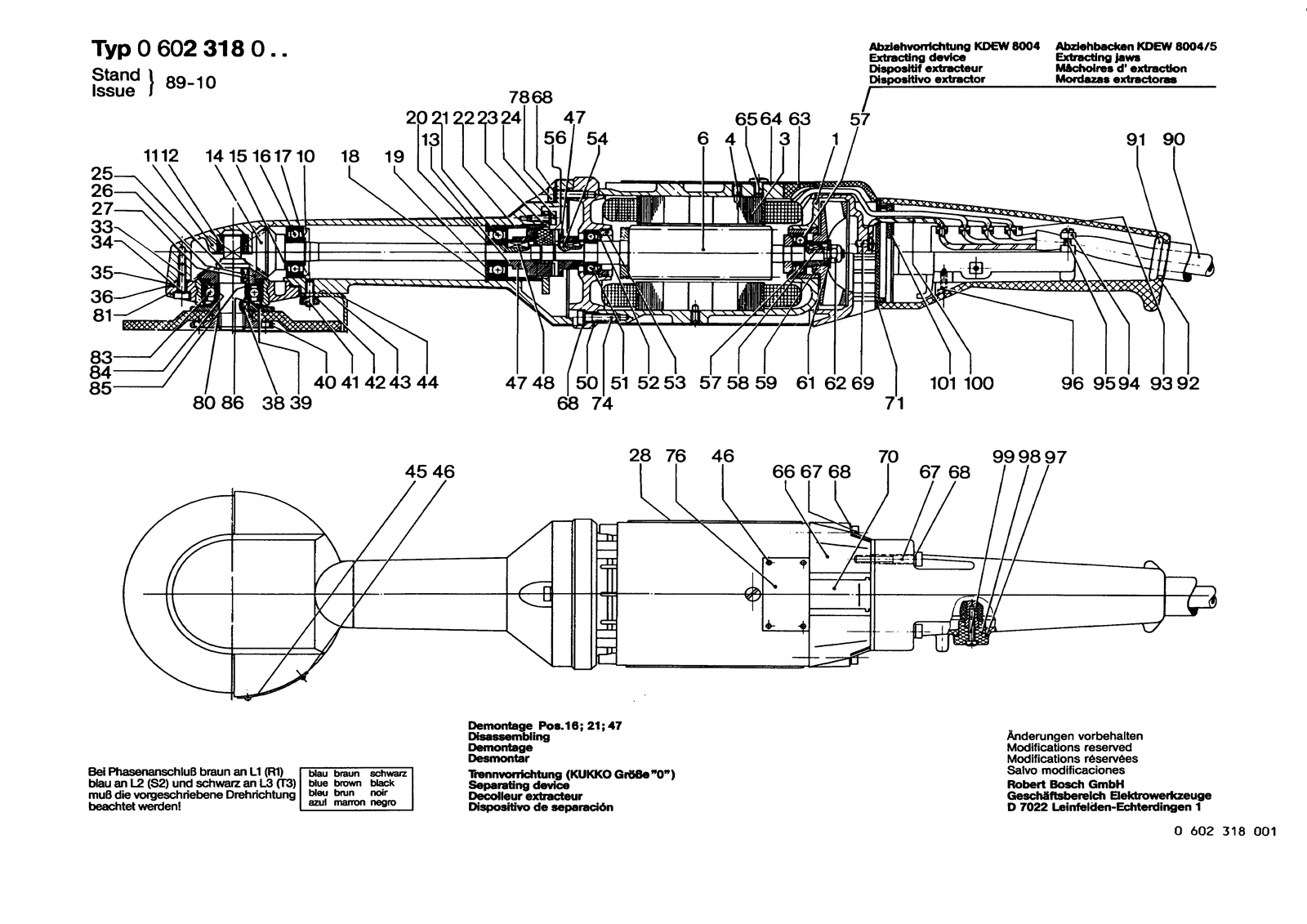

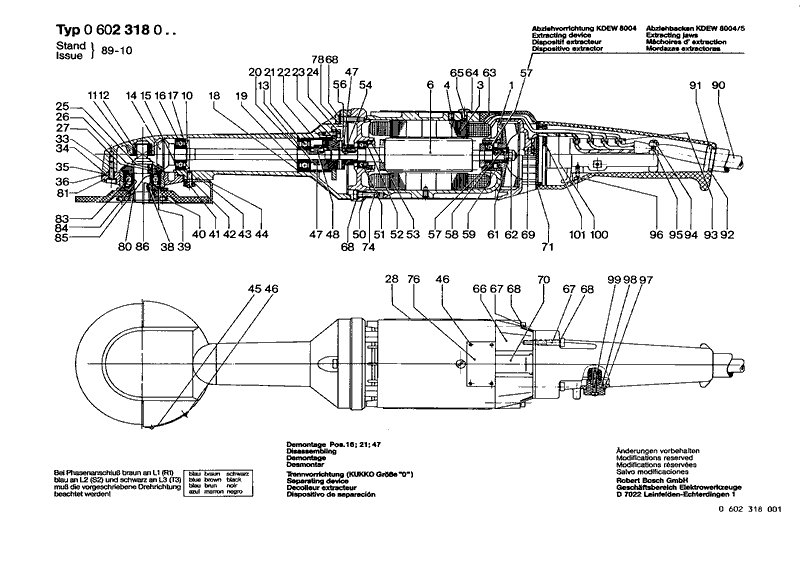

Bosch 0602318001 angle grinder: exploded parts diagram, 1 sheet, 85 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602318001: 85 positions on 1 sheet
Bosch 0602318001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3609200078 | Motor Housing |
| 10 | 3609200081 | Seal Ring |
| 100 | 3609200132 | Connecting Cable |
| 101 | 3609200133 | Sealing Plate |
| 11 | 3609200082 | Gear Housing |
| 12 | 3609200083 | Needle bearing |
| 13 | 3609200084 | Shim |
| 14 | 3609200232 | Bevel-Gear Transmission |
| 15 | 3609200086 | Disc Spring |
| 16 | 3609200087 | Groove ball bearing |
| 17 | 3609200088 | Spring retaining ring |
| 18 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 19 | 3609200089 | Shim |
| 19 | 3609200090 | Shim |
| 20 | 3609200091 | Spacer Ring |
| 21 | 3609200092 | Groove ball bearing |
| 22 | 3609200093 | Spacer Sleeve |
| 23 | 3609200094 | Cover Plate |
| 24 | 3609200095 | Socket head cap screw |
| 25 | 3609200096 | Drive Shaft |
| 27 | 3609200098 | Parallel Key |
| 28 | 3601110106 | Manufacturer's nameplate |
| 3 | 3609200079 | Stator 265V/200HZ |
| 3 | 3609200135 | Stator 200V/300HZ |
| 3 | 3609200136 | Stator 72V/200HZ |
| 33 | 3609200099 | Socket head cap screw |
| 34 | 2916710601 | Flat Seal Ring A 5X9 DIN 7603-CU |
| 35 | 3609200100 | O-Ring |
| 36 | 3609200101 | Shim |
| 36 | 3609200102 | Shim |
| 38 | 3609200103 | Parallel Key |
| 39 | 3609200104 | Clamping-Flange |
| 4 | 2912050152 | Set screw DIN 417-M5X10-22H |
| 40 | 3609200105 | Clamping-Flange |
| 41 | 3609200106 | Stud |
| 42 | 3609200107 | Locking washer |
| 43 | 2915010406 | Hex Nut DIN 934-M5-M-MS |
| 44 | 3609200108 | Protective Cover |
| 45 | 3609200109 | Reference Plate |
| 46 | 3609200222 | Grooved Nail |
| 47 | 3609200110 | Clutch Element |
| 48 | 3609200111 | Parallel Key |
| 50 | 3609200112 | Intermediate Bearing |
| 51 | 1900905121 | Groove ball bearing 12X28X8 |
| 52 | 3609200113 | Seal Ring |
| 53 | 3609200114 | Threaded Ring |
| 54 | 1902300022 | Parallel Key DIN 6885-A3X3X12-ST50K |
| 56 | 3609200115 | Clutch Element |
| 57 | 1900905100 | Groove ball bearing 6000 Z DIN 625 |
| 58 | 1902300020 | Parallel Key A 3X3X8 DIN 6885-ST |
| 59 | 3609200116 | Fan |
| 6 | 3609200080 | Rotor |
| 61 | 2916010884 | Plain Washer A 6,4 DIN 9021-ST |
| 62 | 2915060004 | Hex Nut M 6 DIN 985-8 |
| 63 | 3609200117 | Seal |
| 64 | 3609200118 | Spacer Sleeve |
| 65 | 2910095150 | Oval-Head Screw DIN 85-AM5X8-4.8 |
| 66 | 3609200119 | Fan Housing |
| 67 | 2910370168 | Hex Socket Head Cap Screw DIN 6912-M5X35-8.8 |
| 68 | 2916060006 | Spring Washer DIN 137-A5-FST |
| 69 | 2910110116 | Pan head screw DIN 85 AM 4X6-MS |
| 70 | 3609200120 | Housing Cover |
| 71 | 3609200121 | Insulating Plate |
| 74 | 2910370162 | Hex Socket Head Cap Screw DIN 6912-M5X20-8.8 |
| 76 | 3601100004 | Nameplate |
| 78 | 2910370158 | Hex Socket Head Cap Screw DIN 6912-M5X16-8.8 |
| 80 | 2916010021 | Plain Washer 15 DIN 433-ST |
| 81 | 3609200122 | Pivot Plate |
| 83 | 1900905226 | Groove ball bearing 15X35X11 |
| 84 | 3609200123 | Shim |
| 84 | 3609200124 | Shim |
| 84 | 3609200125 | Shim |
| 85 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 86 | 2916130023 | Sealing disk |
| 90 | 3609200226 | Cable |
| 90 | 3609200227 | Cable |
| 91 | 3609200127 | Protective Sheath |
| 92 | 3609200128 | Handle |
| 93 | 3609200129 | On-Off Switch |
| 94 | 3609200006 | Clamping Piece |
| 95 | 2910090092 | Oval-Head Screw DIN 85-AM3,5-16-4.8 |
| 96 | 2910005086 | Socket head cap screw DIN 84-AM5X35-4.8 |
| 97 | 3609200130 | Felt Washer |
| 98 | 3609200131 | Control Lever |
| 99 | 2910095058 | Oval-Head Screw DIN 85-M3X16-4.8 |
