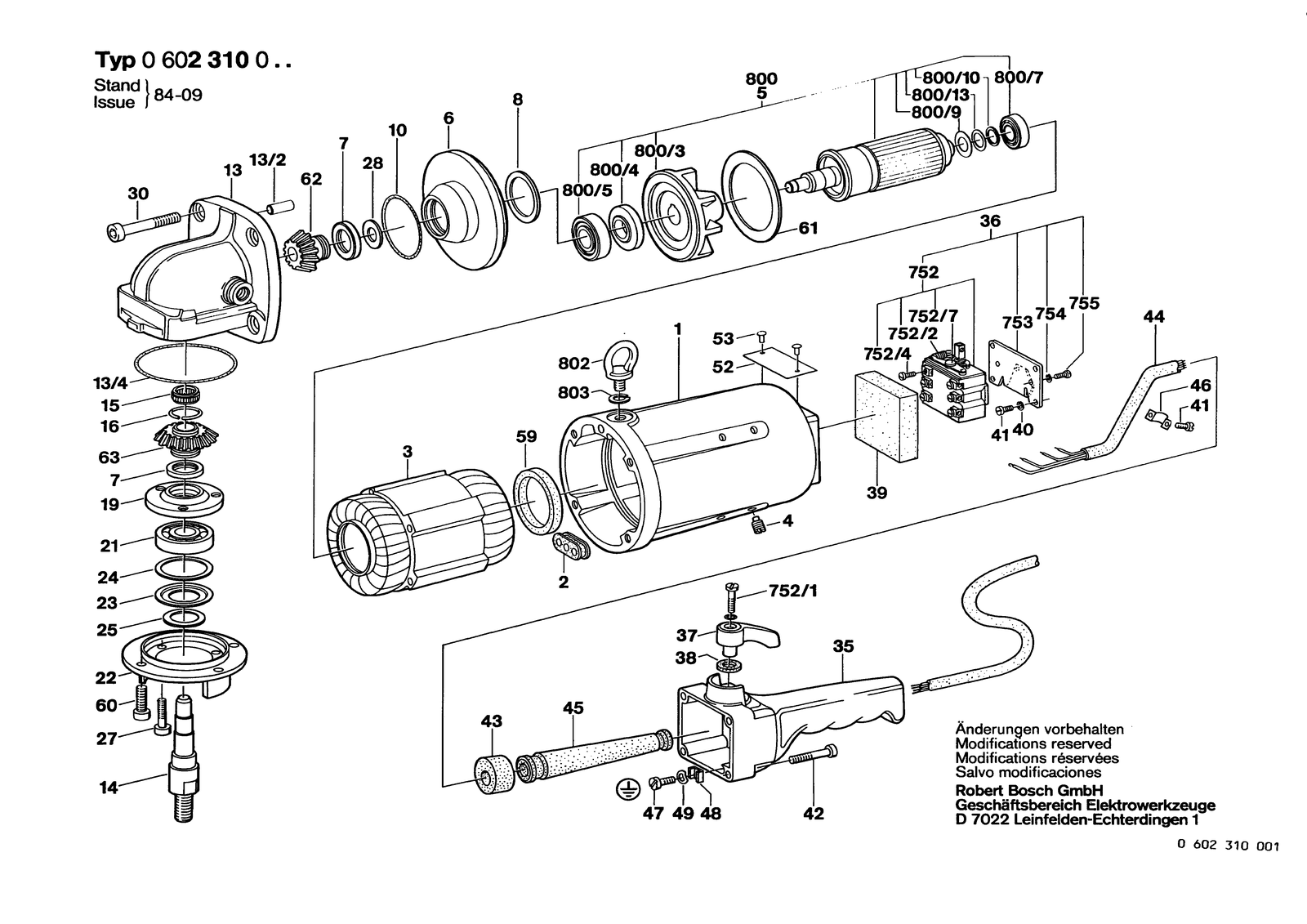

Bosch 0602310001 angle grinder: exploded parts diagram, 1 sheet, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602310001: 67 positions on 1 sheet
Bosch 0602310001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605102036 | Motor Housing |
| 10 | 1600210004 | O-Ring 54,0X3,0 MM |
| 13 | 1605806180 | Gear Housing |
| 13/2 | 2917500145 | Straight Pin 6 H 8X1 DIN 7 |
| 13/4 | 1900210166 | O-Ring 80X3 MM |
| 14 | 1603523020 | Grinding Spindle |
| 15 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 16 | 2916620011 | Retaining ring Ø22 MM |
| 19 | 1600521007 | Conical Spring Washer |
| 2 | 1600306000 | Grommet |
| 21 | 1900900352 | Groove ball bearing 17X47X14 |
| 22 | 1605805018 | Bearing Flange |
| 23 | 2100551000 | Plain Washer |
| 24 | 1600102638 | Shim Thick 0,05 MM |
| 24 | 1600102639 | Shim Thick 0,1 MM |
| 24 | 1600102640 | Shim Thick 0,15 MM |
| 25 | 1600110004 | Sealing disk |
| 27 | 2910141164 | Hex Socket Head Cap Screw DIN 912-M 5X25-8.8 |
| 28 | 1600101616 | Shim Thick 0,1 MM |
| 28 | 1600101617 | Shim Thick 0,2 MM |
| 28 | 1600101618 | Shim Thick 0,3 MM |
| 28 | 1600101619 | Shim Thick 0,05 MM |
| 3 | 1604229068 | Stator 265V/300HZ |
| 3 | 1604229069 | Stator 200V/300HZ |
| 3 | 1604229122 | Stator 72V/200HZ |
| 30 | 2910141246 | Hex Socket Head Cap Screw DIN 912-M8X30-8.8 |
| 35 | 1605132024 | Handle |
| 36 | 1607200017 | On-Off Switch |
| 36 | 3601023015 | Fixing plate |
| 37 | 1602026015 | Control Lever |
| 38 | 1600108024 | Sealing disk Ø18XØ10X4 MM |
| 39 | 1600009000 | Sealing Plate |
| 4 | 1603402003 | Set screw |
| 40 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 41 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 42 | 2910141209 | Hex Socket Head Cap Screw DIN 912-M6X40-8.8 |
| 43 | 1600113003 | Sealing Plate |
| 44 | 3604462043 | Elec. Cable W/Connection |
| 44 | 3607030236 | Elec. Cable W/Connection |
| 45 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 46 | 1601303003 | Fastening Clamp |
| 47 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 48 | 3601321001 | Clamping Saddle |
| 49 | 3600150006 | Spring Washer Ø4,2 MM |
| 52 | 3601106053 | Nameplate |
| 53 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 59 | 1600209005 | Seal Ring |
| 6 | 1605820091 | Bearing Flange |
| 60 | 2910141201 | Hex Socket Head Cap Screw DIN 912-M6X20-8.8 |
| 61 | 1600151001 | Air-Deflector Ring |
| 62 | 1606333048 | Bevel Gear Z=27 |
| 63 | 1606333049 | Bevel Gear Z=38 |
| 7 | 1600108048 | Sealing disk |
| 752 | 1607200006 | On-Off Switch |
| 752/1 | 2910001052 | Socket head cap screw DIN 84-AM3X10-4.8 |
| 752/2 | 1604650009 | Extension Spring |
| 752/4 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 752/7 | 1603200007 | Detent Roller |
| 753 | 3601023015 | Fixing plate |
| 754 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 755 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 8 | 1600102638 | Shim Thick 0,05 MM |
| 8 | 1600102639 | Shim Thick 0,1 MM |
| 8 | 1600102640 | Shim Thick 0,15 MM |
| 800 | 1604081003 | Rotor Without Winding |
| 802 | 2912521237 | Lifting Eye Bolt DIN 580-M 8 |
| 803 | 2916680011 | Spring Lock Washer DIN 127-B12 |
