Bosch 0602307021

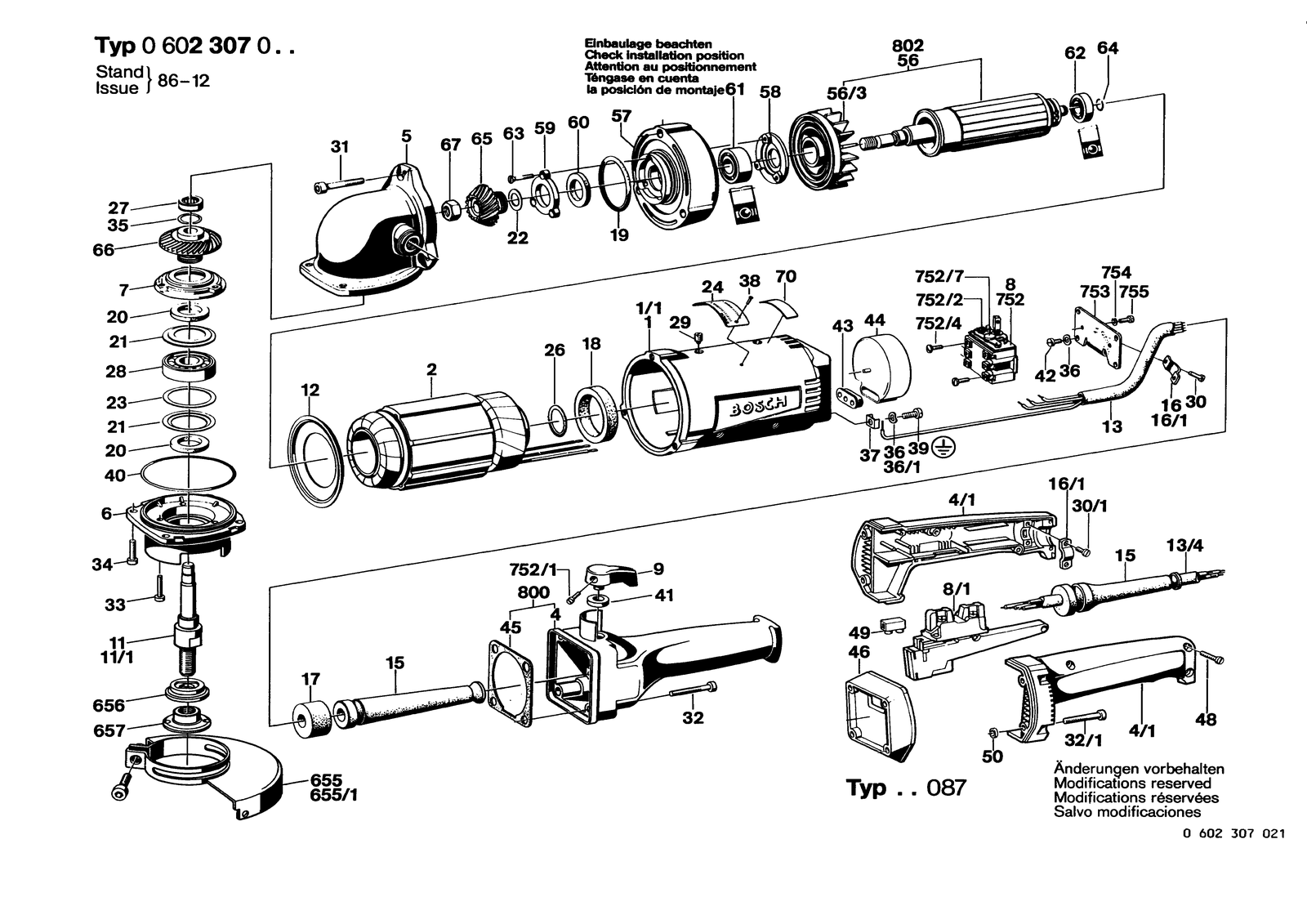

Bosch 0602307021 angle grinder: exploded parts diagram, 1 sheet, 89 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602307021: 89 positions on 1 sheet
Bosch 0602307021 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605102106 | Motor Housing |
| 1/1 | 1605102107 | Motor Housing |
| 11 | 1603523029 | Grinding Spindle M14 |
| 11/1 | 1603523069 | Grinding Spindle 5/8" |
| 12 | 1600500014 | Guide Pulley |
| 13 | 3604462043 | Elec. Cable W/Connection |
| 13/4 | 1604462063 | Elec. Cable W/Connection |
| 15 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 16 | 1601303003 | Fastening Clamp |
| 16/1 | 1601302013 | Fastening Clamp |
| 17 | 1600113003 | Sealing Plate |
| 18 | 1600209009 | Seal Ring |
| 19 | 1900210146 | O-Ring 45X3MM |
| 2 | 1604229160 | Stator 265V/200HZ |
| 2 | 1604229161 | Stator 200V/300HZ |
| 2 | 1604229162 | Stator 72V/200HZ,110V/300HZ |
| 2 | 1604229164 | Stator 220V/360HZ |
| 2 | 1604229165 | Stator 42V/200HZ |
| 2 | 1604229219 | Stator 230V/180HZ |
| 20 | 1600108048 | Sealing disk |
| 21 | 2100551000 | Plain Washer |
| 22 | 1600101616 | Shim Thick 0,1 MM |
| 22 | 1600101617 | Shim Thick 0,2 MM |
| 22 | 1600101618 | Shim Thick 0,3 MM |
| 22 | 1600101619 | Shim Thick 0,05 MM |
| 23 | 1600102638 | Shim Thick 0,05 MM |
| 23 | 1600102639 | Shim Thick 0,1 MM |
| 23 | 1600102640 | Shim Thick 0,15 MM |
| 24 | 3601106053 | Nameplate |
| 26 | 1120210000 | O-Ring |
| 27 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 28 | 1900900352 | Groove ball bearing 17X47X14 |
| 29 | 1603402004 | Set screw |
| 30 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 30/1 | 2910021120 | Socket head cap screw DIN 84-AM4X10-8.8 |
| 31 | 2910141213 | Hex Socket Head Cap Screw DIN 912-M6X50-8.8 |
| 32 | 2910141209 | Hex Socket Head Cap Screw DIN 912-M6X40-8.8 |
| 32/1 | 2910141170 | Hex Socket Head Cap Screw DIN 912-M5X40-8.8 |
| 33 | 2910141164 | Hex Socket Head Cap Screw DIN 912-M 5X25-8.8 |
| 34 | 2910141158 | Hex Socket Head Cap Screw DIN 912-M5X16-8.8 |
| 35 | 2916620011 | Retaining ring Ø22 MM |
| 36 | 1600150006 | Spring Washer DIN 137-A4 |
| 36/1 | 3600150006 | Spring Washer Ø4,2 MM |
| 37 | 3601321001 | Clamping Saddle |
| 38 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 39 | 2910110122 | Pan head screw DIN 85-MS-M 4X12 |
| 4 | 1601015011 | Seal |
| 4/1 | 1605132083 | Handle Blue |
| 40 | 1600210006 | O-Ring 74,0X3,0 MM |
| 41 | 1600205027 | Felt Washer |
| 42 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 43 | 1600306000 | Grommet |
| 44 | 1600502004 | Protective Cover |
| 45 | 1601015011 | Seal |
| 46 | 1605700013 | Intermediate Flange |
| 48 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 49 | 1601091007 | Connecting terminal |
| 5 | 1605806159 | Gear Housing |
| 50 | 1600203000 | Backup ring |
| 57 | 1605820145 | Bearing Housing |
| 58 | 1600501019 | Bearing cover |
| 59 | 1600501024 | Cover Disc |
| 6 | 1605805022 | Bearing Flange |
| 60 | 1600108018 | Felt Disc |
| 61 | 3600900022 | Groove ball bearing |
| 62 | 1900905121 | Groove ball bearing 12X28X8 |
| 63 | 3603435051 | Torx Flat-Head Screw M4X20 |
| 64 | 2916600007 | Retaining ring 12 DIN 9045 |
| 65 | 1606333048 | Bevel Gear Z=27 |
| 655 | 1605510199 | Protective Cover Ø180 MM |
| 655/1 | 1605510199 | Protective Cover Ø180 MM |
| 656 | 2600501006 | Clamping-Flange Ø45 MM |
| 657 | 2603345004 | Round Nut M14 |
| 66 | 1606333049 | Bevel Gear Z=38 |
| 67 | 1603300009 | Hex Nut M12X1,5 MM |
| 7 | 1600521013 | Conical Spring Washer |
| 70 | 3601119236 | Reference Plate |
| 752 | 1607200006 | On-Off Switch |
| 752/2 | 1604650009 | Extension Spring |
| 752/4 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 752/7 | 1603200007 | Detent Roller |
| 753 | 3601023015 | Fixing plate |
| 754 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 755 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 8 | 1607200017 | On-Off Switch |
| 8/1 | 3607200005 | Switch |
| 800 | 1605132067 | Handle |
| 802 | 3607031146 | Assembly Of Service Parts |
| 9 | 1602026038 | Control Lever |
