Bosch 0602302001

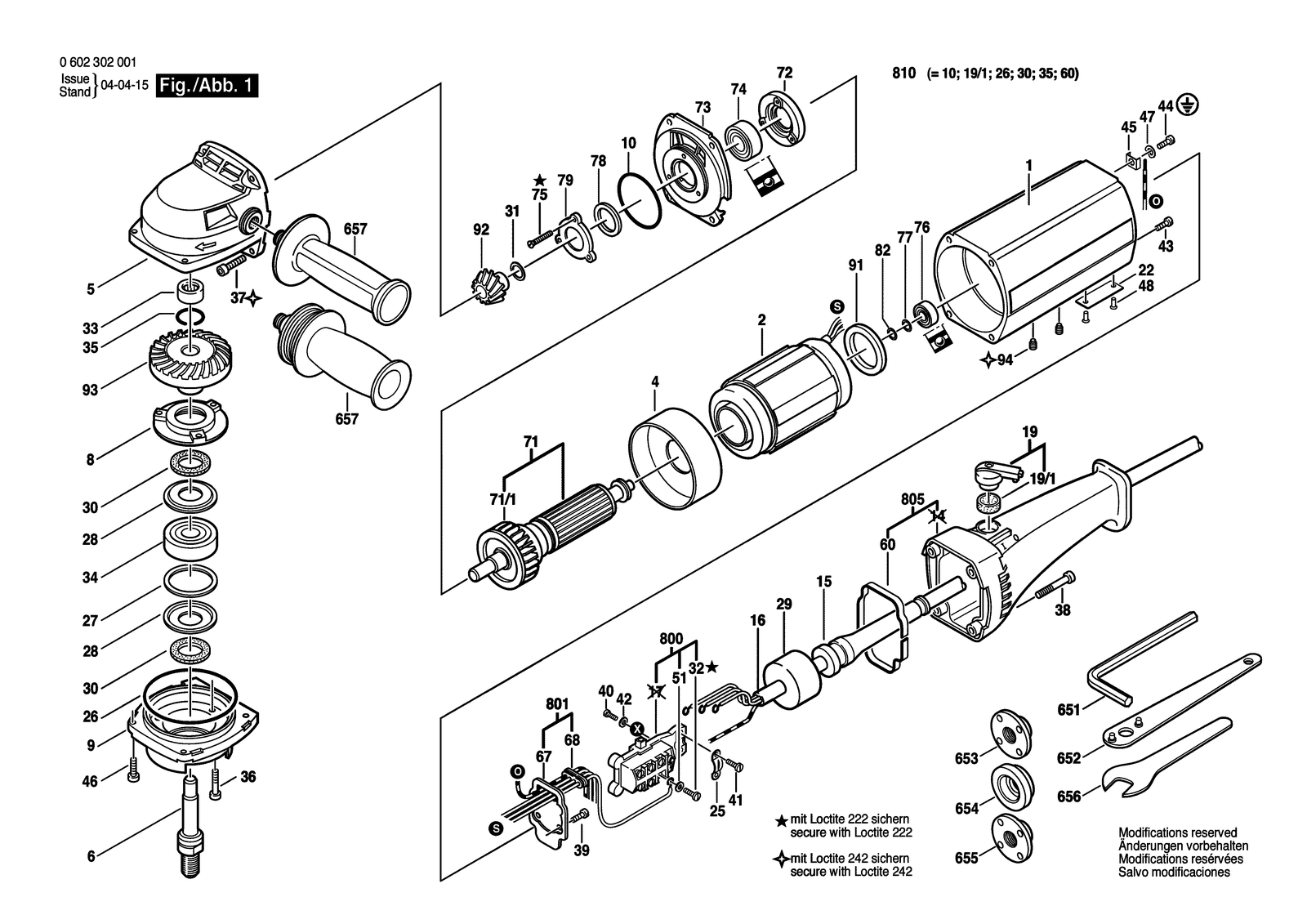

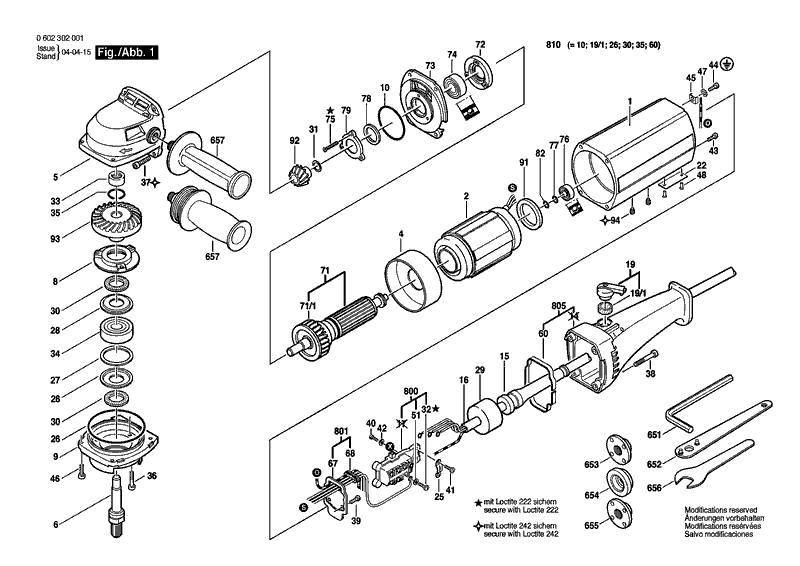

Bosch 0602302001 angle grinder: exploded parts diagram, 1 sheet, 74 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602302001: 74 positions on 1 sheet
Bosch 0602302001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102081 | Motor Housing |
| 10 | 1900210146 | O-Ring 45X3MM |
| 15 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 16 | 3607030236 | Elec. Cable W/Connection |
| 19 | 1602026030 | Control Lever |
| 19/1 | 1600205008 | Felt Washer |
| 2 | 1604229098 | Stator 265V/200HZ,230V/180HZ |
| 2 | 1604229099 | Stator 200V/300HZ,135V/200HZ |
| 2 | 1604229100 | Stator 72V/200HZ |
| 2 | 1604229105 | Stator 220V/360HZ |
| 22 | 3601106053 | Nameplate |
| 25 | 1601303003 | Fastening Clamp |
| 26 | 1600210005 | O-Ring 66,0X3,0 MM |
| 27 | 1600102638 | Shim Thick 0,05 MM |
| 27 | 1600102639 | Shim Thick 0,1 MM |
| 27 | 1600102640 | Shim Thick 0,15 MM |
| 28 | 2100551000 | Plain Washer |
| 29 | 1600113003 | Sealing Plate |
| 30 | 1600108048 | Sealing disk |
| 31 | 1600101616 | Shim Thick 0,1 MM |
| 31 | 1600101617 | Shim Thick 0,2 MM |
| 31 | 1600101618 | Shim Thick 0,3 MM |
| 31 | 1600101619 | Shim Thick 0,05 MM |
| 32 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 33 | 1600910010 | Needle bearing Ø22X11,3 MM |
| 34 | 1900900352 | Groove ball bearing 17X47X14 |
| 35 | 2916620011 | Retaining ring Ø22 MM |
| 36 | 2910141164 | Hex Socket Head Cap Screw DIN 912-M 5X25-8.8 |
| 37 | 2910141162 | Hex Socket Head Cap Screw DIN 912-M5X20-8.8 |
| 38 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 39 | 3603450008 | Socket head cap screw |
| 4 | 1600209002 | Air-Deflector Ring |
| 40 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 41 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 42 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 43 | 2910021120 | Socket head cap screw DIN 84-AM4X10-8.8 |
| 44 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 45 | 3601321001 | Clamping Saddle |
| 46 | 2910141158 | Hex Socket Head Cap Screw DIN 912-M5X16-8.8 |
| 47 | 3600150006 | Spring Washer Ø4,2 MM |
| 48 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 5 | 3605806104 | Gear Housing |
| 51 | 1600150006 | Spring Washer DIN 137-A4 |
| 6 | 1603523032 | Grinding Spindle M14X1,5 MM |
| 60 | 1601014000 | Sealing Cord |
| 651 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 652 | 1607950061 | Pin-Type Face-Wrench |
| 654 | 2600501006 | Clamping-Flange Ø45 MM |
| 655 | 2603345004 | Round Nut M14 |
| 656 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 657 | 160202509Z | Auxiliary Handle |
| 657 | 16020250A1 | Auxiliary Handle |
| 67 | 1602388006 | Sealing Plate |
| 68 | 1600306001 | Grommet |
| 71 | 1604080032 | Rotor Without Winding |
| 72 | 1600501019 | Bearing cover |
| 73 | 3605820064 | Bearing Flange |
| 74 | 1900905234 | Groove ball bearing 15X35X11 |
| 75 | 2910511130 | Countersunk-Head Screw DIN 63-AM4X20-8.8 |
| 76 | 1900905018 | Ball Bearing 7X22X7 |
| 77 | 1600100632 | Shim Thick 0,2 MM |
| 78 | 1600108018 | Felt Disc |
| 79 | 1600501024 | Cover Disc |
| 8 | 1600521013 | Conical Spring Washer |
| 800 | 1607000036 | Switch Kit |
| 801 | 1602388007 | Sealing Plate |
| 805 | 3605132048 | Handle Dark Blue |
| 810 | 1607000039 | Seal Kit |
| 82 | 1420100023 | Shim Thick 0,10 MM |
| 9 | 3607030375 | Bearing Flange |
| 91 | 1600209004 | Seal Ring |
| 92 | 1606333084 | Bevel Gear Z=30 |
| 93 | 1606333083 | Bevel Gear Z=33 |
| 94 | 1603402002 | Set screw |
