Bosch 0602301001

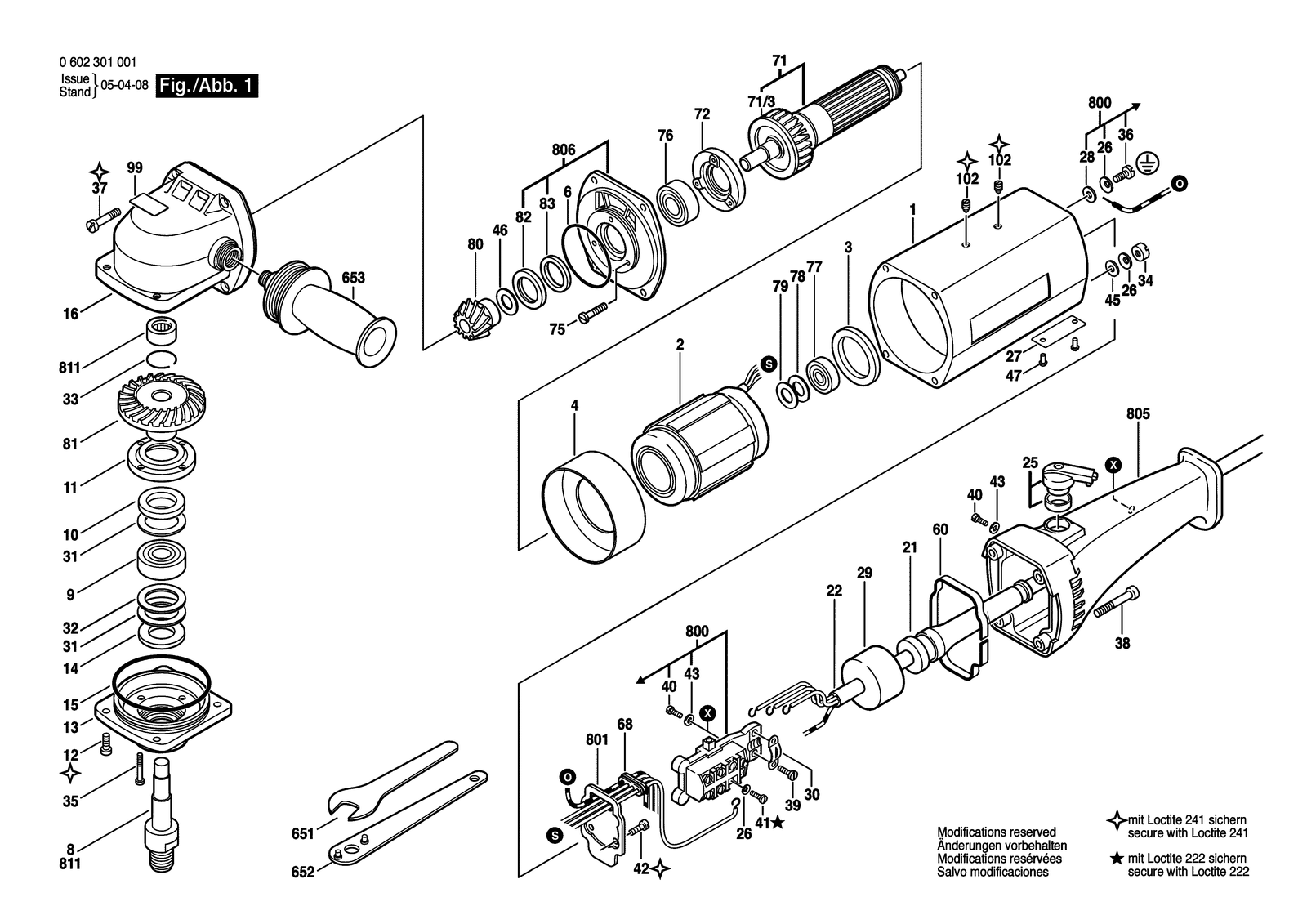

Bosch 0602301001 angle grinder: exploded parts diagram, 1 sheet, 68 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602301001: 68 positions on 1 sheet
Bosch 0602301001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102040 | Motor Housing |
| 10 | 3600205002 | Felt Washer |
| 102 | 1603402002 | Set screw |
| 11 | 1600521012 | Conical Spring Washer |
| 12 | 2910141122 | Hex Socket Head Cap Screw DIN 912-M 4X12-8.8 |
| 13 | 1605805036 | Bearing Flange |
| 14 | 1600108034 | Sealing disk |
| 15 | 1600210004 | O-Ring 54,0X3,0 MM |
| 16 | 1605806165 | Gear Housing |
| 2 | 1604229088 | Stator 265V/200HZ |
| 2 | 1604229089 | Stator 200V/300HZ |
| 2 | 1604229090 | Stator 72V/200HZ,110V/300HZ |
| 2 | 1604229091 | Stator 72V/300HZ |
| 21 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 22 | 3607030236 | Elec. Cable W/Connection |
| 25 | 1602026030 | Control Lever |
| 26 | 1600150006 | Spring Washer DIN 137-A4 |
| 27 | 3601106053 | Nameplate |
| 28 | 2916010410 | Plain Washer A 4,3 DIN 125-ST |
| 29 | 1600113003 | Sealing Plate |
| 3 | 1600209006 | Seal Ring |
| 30 | 1601302013 | Fastening Clamp |
| 31 | 1600102627 | Shim Thick 0,3 MM |
| 32 | 1600102625 | Shim Thick 0,15 MM |
| 32 | 1600102626 | Shim Thick 0,1 MM |
| 32 | 1600102627 | Shim Thick 0,3 MM |
| 33 | 1604601008 | Retaining ring |
| 34 | 2915161006 | Slotted Round Nut DIN 546-M4X3,5 |
| 35 | 2910141062 | Hex Socket Head Cap Screw DIN 912-M3X20-8.8 |
| 36 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 37 | 2910141162 | Hex Socket Head Cap Screw DIN 912-M5X20-8.8 |
| 38 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 39 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 4 | 1600209003 | Air-Deflector Ring |
| 40 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 41 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 42 | 3603450008 | Socket head cap screw |
| 43 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 45 | 2916011009 | Plain Washer 4,3 DIN 433-ST |
| 46 | 1600100004 | Shim Thick 0,1 MM |
| 47 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 6 | 1900210146 | O-Ring 45X3MM |
| 60 | 1601014000 | Sealing Cord |
| 651 | 1907950508 | Single-Head Eng. Wrench SW 14 |
| 652 | 1607950007 | Pin-Type Face-Wrench SW6-HL8-N6 |
| 653 | 160202509Z | Auxiliary Handle |
| 653 | 16020250A1 | Auxiliary Handle |
| 68 | 1600306001 | Grommet |
| 71 | 1604080053 | Rotor Without Winding |
| 71/3 | 1606610108 | Fan |
| 72 | 1600501025 | Conical Spring Washer |
| 75 | 2910011128 | Socket head cap screw DIN 84-AM4X18-5.8 |
| 76 | 2600905013 | Groove ball bearing 12X28X8 |
| 77 | 1900905018 | Ball Bearing 7X22X7 |
| 78 | 1600100632 | Shim Thick 0,2 MM |
| 79 | 1420100023 | Shim Thick 0,10 MM |
| 8 | 1603523028 | Drilling Spindle |
| 80 | 1606333091 | Bevel Gear Z=15 |
| 800 | 1607000036 | Switch Kit |
| 801 | 1602388007 | Sealing Plate |
| 805 | 3605132048 | Handle Dark Blue |
| 806 | 3607031154 | Assembly Of Service Parts |
| 81 | 1606333092 | Bevel Gear Z=44 |
| 811 | 3607031158 | Assembly Of Service Parts |
| 82 | 1610500004 | Retaining snap ring |
| 83 | 1600108003 | Felt Disc |
| 9 | 1900905231 | Groove ball bearing 12X32X10 |
| 99 | 3601119236 | Reference Plate |
