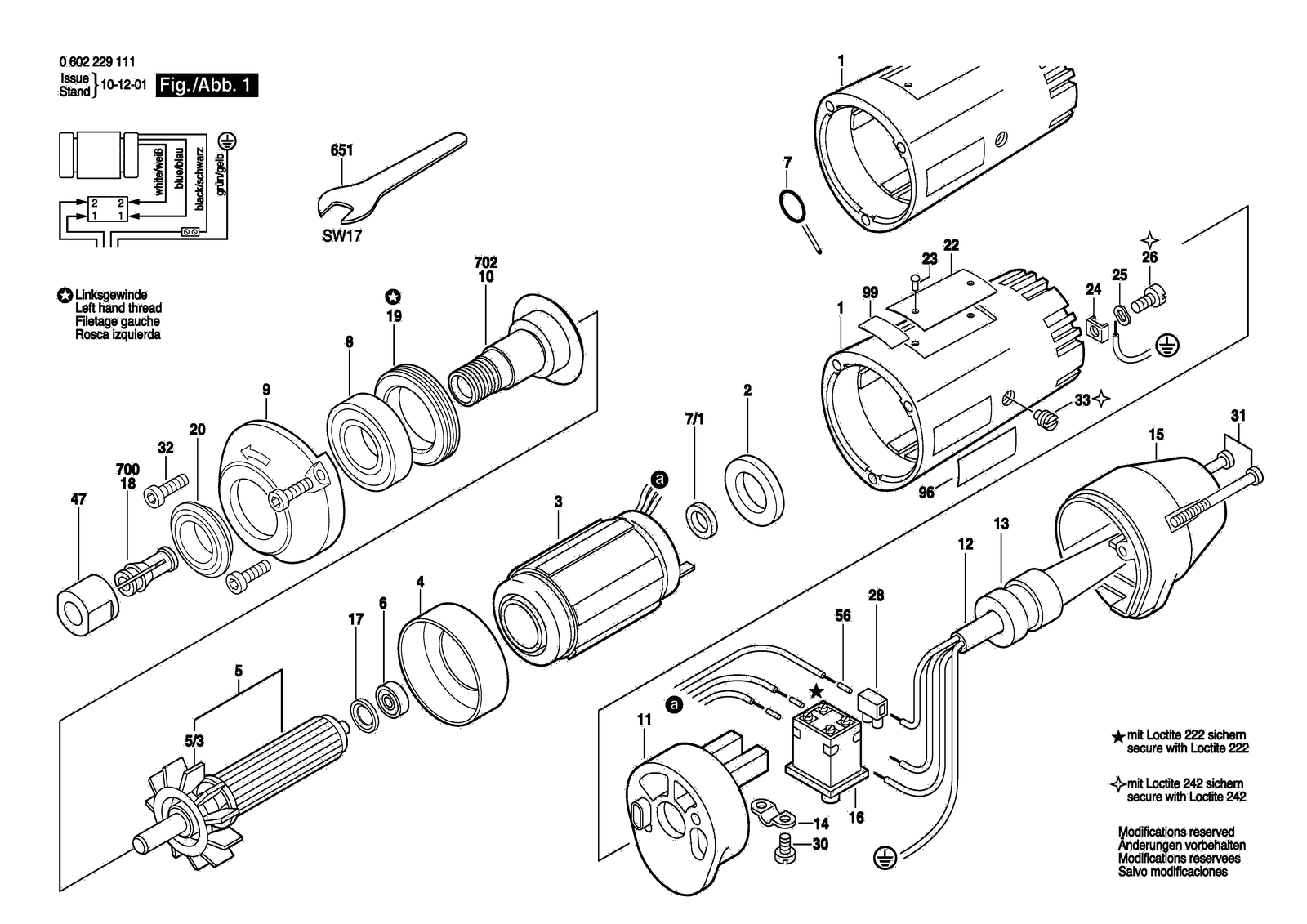

Bosch 0602229111 straight grinders: exploded parts diagram, 1 sheet, 36 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602229111: 36 positions on 1 sheet
Bosch 0602229111 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605102058 | Motor Housing |
| 10 | 3608570004 | Collet Jaws |
| 11 | 3600099004 | Connection Housing |
| 12 | 3604462052 | Pvc-Insulated Cable |
| 13 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 14 | 1601302014 | Fastening Clamp |
| 15 | 3605500074 | Sealing cap |
| 16 | 3607200001 | Switch |
| 17 | 3600202008 | Intermediate Ring |
| 18 | 2608570129 | Collet Ø 6 MM |
| 19 | 3603344014 | Threaded Ring |
| 2 | 1600209011 | Seal Ring |
| 20 | 3600220009 | Retaining snap ring |
| 22 | 3601106053 | Nameplate |
| 23 | 3603133000 | Grooved Nail |
| 24 | 3601321001 | Clamping Saddle |
| 25 | 3600150006 | Spring Washer Ø4,2 MM |
| 26 | 2910110118 | Pan head screw DIN 85-AM4X8-MS |
| 28 | 1901091012 | Socket-Terminal Strip 1X1,5 MM/2 |
| 30 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 31 | 2910141140 | Hex Socket Head Cap Screw DIN 912-M 4X45-8.8 |
| 32 | 2910141126 | Hex Socket Head Cap Screw DIN 912-M4X16-8.8 |
| 33 | 3603402000 | Set screw |
| 4 | 1600502005 | Air-Deflector Ring |
| 47 | 3603342009 | Round Nut |
| 5 | 3604080003 | Rotor Without Winding |
| 56 | 3604477008 | End Splice |
| 6 | 1900905015 | Groove ball bearing 625-2Z DIN 625 |
| 651 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 7/1 | 3600206002 | Rubber Ring 6MM,Ø12XØ16,4X3MM |
| 700 | 2608570077 | Collet Ø 3 MM |
| 700 | 2608570081 | Collet Ø 8 MM |
| 8 | 3600905032 | Groove ball bearing |
| 9 | 3605700095 | Bearing Flange |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 99 | 3601119236 | Reference Plate |
