All parts of Bosch 0602229001: 37 positions on 1 sheet

Bosch 0602229001 parts list (1 sheet)

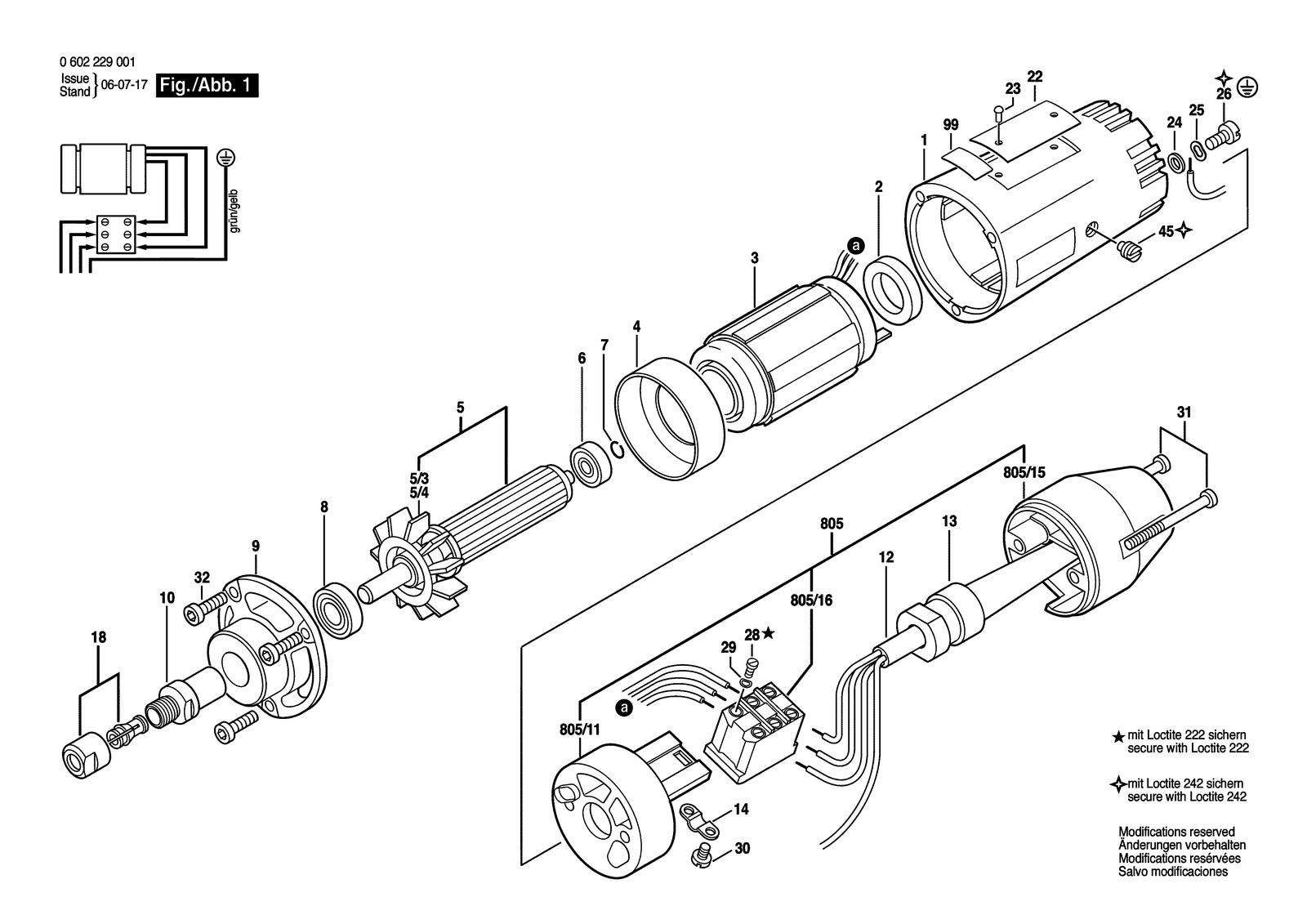

Bosch 0602229001 parts diagram, sheet 1
No.Part numberPart name
11605102085Motor Housing
101600362023Threaded Bushing
121604462053Pvc-Insulated Cable
133600703011Grommet Ø9,2-Ø12X120 MM
141601302014Fastening Clamp
181608570061Collet Ø 6 MM
183600712007Shrinkable Tube L=120 MM
21600209011Seal Ring
223601106053Nameplate
233603133000Grooved Nail
242916010409Plain Washer DIN 46 255-DPG 9
253600150006Spring Washer Ø4,2 MM
262910110116Pan head screw DIN 85 AM 4X6-MS
282910110048Pan head screw DIN 85-AM3X6-CUZN
292916060003Spring Washer A 3 DIN 137-ST
31604229200Stator 265V/200HZ, 200V/150HZ
31604229201Stator 200V/300HZ,135V/200HZ
31604229202Stator 72V/200HZ,110V/300HZ
31604229203Stator 72V/300HZ
31604229204Stator 220V/360HZ
31604229205Stator 42V/300HZ
302910021116Socket head cap screw DIN 84-AM4X6-8.8
312910141140Hex Socket Head Cap Screw DIN 912-M 4X45-8.8
322910141122Hex Socket Head Cap Screw DIN 912-M 4X12-8.8
41600502005Air-Deflector Ring
453603402000Set screw
53604080003Rotor Without Winding
5/43600202008Intermediate Ring
61900900232Groove ball bearing 5X16X5
72916600002Retaining ring 5 DIN 9045
81900905017Groove ball bearing 9X24X7
8053607031145Handle
805/113600099004Connection Housing
805/153605500074Sealing cap
805/163607200001Switch
91605808050Bearing cover
993601119236Reference Plate
