Bosch 0602228285

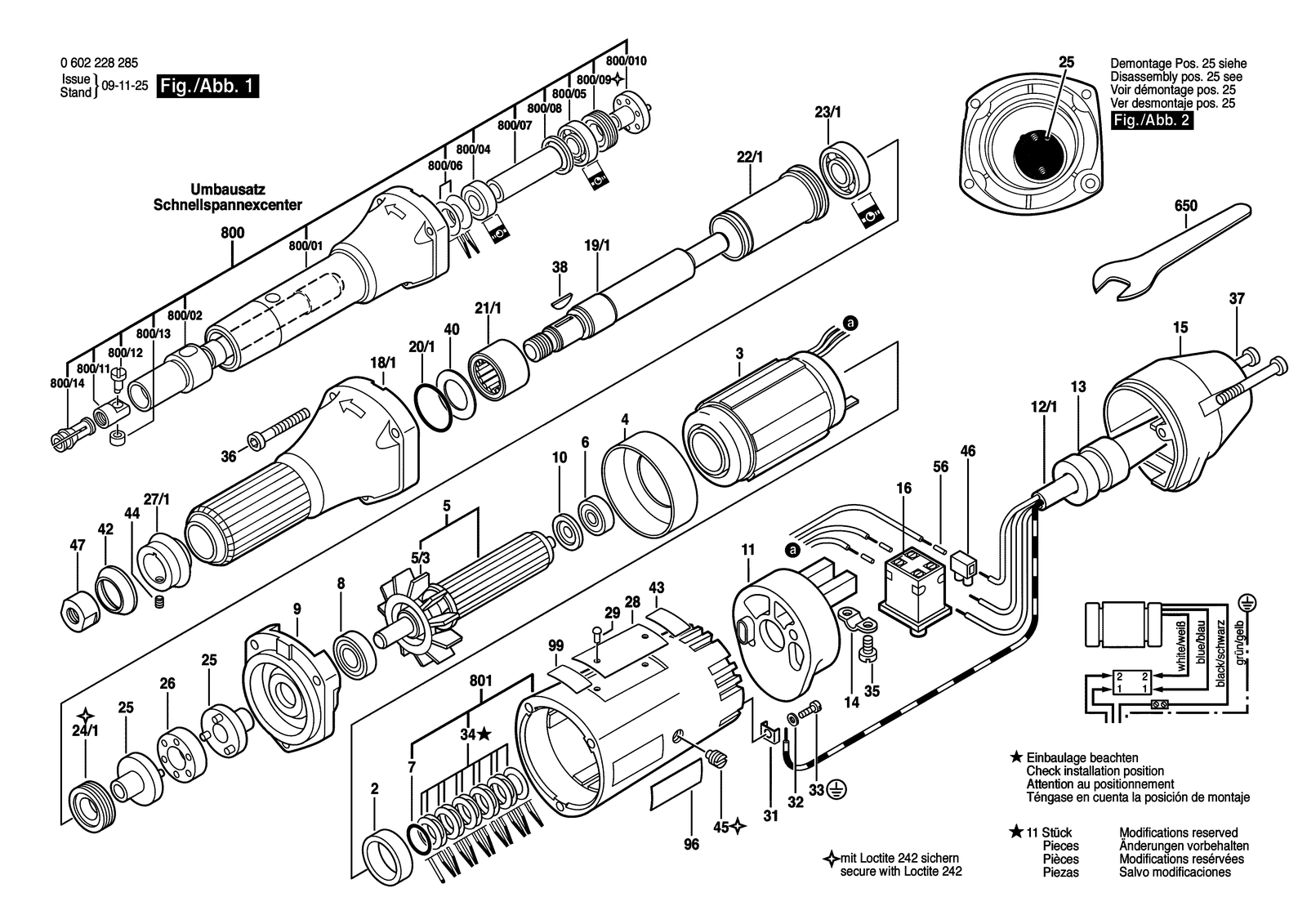

Bosch 0602228285 straight grinders: exploded parts diagram, 2 sheets, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602228285: 61 positions on 2 sheets
Bosch 0602228285 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | 3600202008 | Intermediate Ring |
| 11 | 3600099004 | Connection Housing |
| 12/1 | 3604462001 | Elec. Cable W/Connection |
| 13 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 14 | 1601302014 | Fastening Clamp |
| 15 | 3605500074 | Sealing cap |
| 16 | 3607200001 | Switch |
| 18/1 | 1605806299 | Spindle Bearing |
| 19/1 | 1603523072 | Grinding Spindle |
| 2 | 1600209011 | Seal Ring |
| 20/1 | 1600210029 | O-Ring 19,0X3,0 MM |
| 21/1 | 1600910011 | Needle bearing |
| 22/1 | 1600422006 | Guide Sleeve |
| 23/1 | 1900905025 | Ball Bearing 9X26X8 |
| 24/1 | 3603344059 | Threaded Ring |
| 25 | 1600320028 | Carrier |
| 26 | 1606442000 | Carrier |
| 27/1 | 1605703049 | Clamping-Flange Ø 26 MM |
| 28 | 3601106053 | Nameplate |
| 29 | 3603133000 | Grooved Nail |
| 3 | 1604229204 | Stator 220V/360HZ |
| 31 | 3601321001 | Clamping Saddle |
| 32 | 3600150006 | Spring Washer Ø4,2 MM |
| 33 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 34 | 3600150013 | Disc Spring |
| 35 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 36 | 2910141136 | Hex Socket Head Cap Screw DIN 912-M 4X35-8.8 |
| 37 | 2910141140 | Hex Socket Head Cap Screw DIN 912-M 4X45-8.8 |
| 38 | 1900023005 | Woodruff Key DIN 6888 3X5 ST60-2 |
| 4 | 1600502005 | Air-Deflector Ring |
| 40 | 1600101645 | Shim Thick 0,5 MM |
| 42 | 3600250007 | Protective Ring |
| 43 | 1601110358 | Reference Plate Caution |
| 44 | 2912061148 | Set screw M 5X6-DIN 916-45H |
| 45 | 3603402000 | Set screw |
| 46 | 1901091012 | Socket-Terminal Strip 1X1,5 MM/2 |
| 47 | 3603342009 | Round Nut |
| 5 | 3604080003 | Rotor Without Winding |
| 56 | 3604477008 | End Splice |
| 6 | 1900905015 | Groove ball bearing 625-2Z DIN 625 |
| 650 | 2607950511 | Single-Head Eng. Wrench SW17 |
| 7 | 3600210039 | O-Ring 12,0X2,25 MM |
| 8 | 1900905017 | Groove ball bearing 9X24X7 |
| 800 | 1605806921 | Gear Housing |
| 800/01 | 1605806316 | Spindle Bearing |
| 800/010 | 1600320028 | Carrier |
| 800/02 | 1603124098 | Grinding Spindle |
| 800/04 | 1900905007 | Groove ball bearing 609-ZY DIN 625 |
| 800/05 | 1900905025 | Ball Bearing 9X26X8 |
| 800/06 | 1600550007 | Disc Spring |
| 800/07 | 1600700018 | Guide Sleeve |
| 800/08 | 1600101015 | Shim washer |
| 800/09 | 3603344059 | Threaded Ring |
| 800/11 | 1600363001 | Threaded Bushing |
| 800/12 | 1603180004 | Eccentric Bolt |
| 800/13 | 1600202019 | Backup ring |
| 800/14 | 2608570016 | Collet |
| 801 | 3605102028 | Motor Housing |
| 9 | 3605820058 | Bearing Flange |
| 96 | 1601110481 | Manufacturer's nameplate Shadow Side |
| 99 | 3601119236 | Reference Plate |
