Bosch 0602228061
Bosch 0602228061 straight grinders: exploded parts diagram, 2 sheets, 52 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

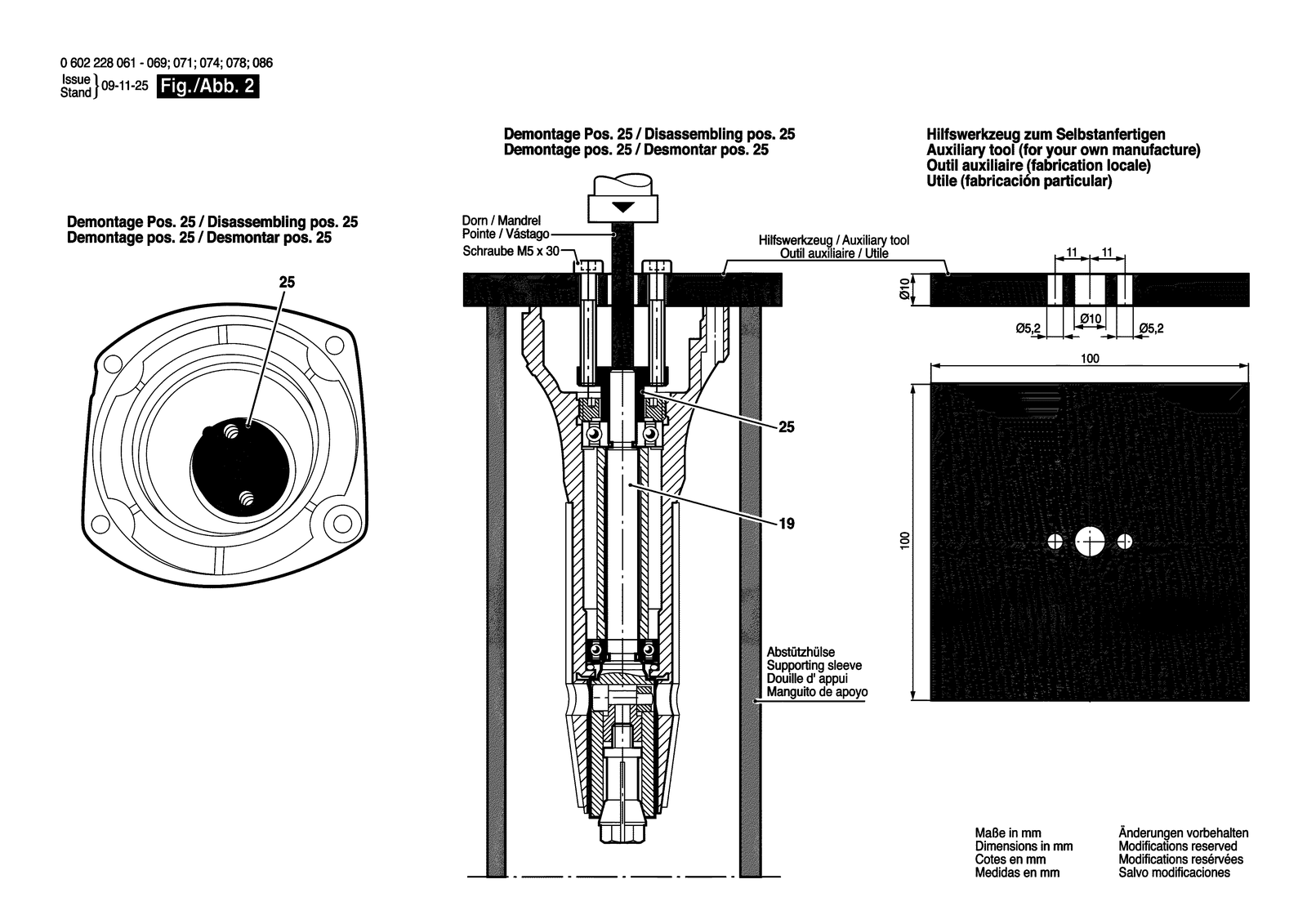

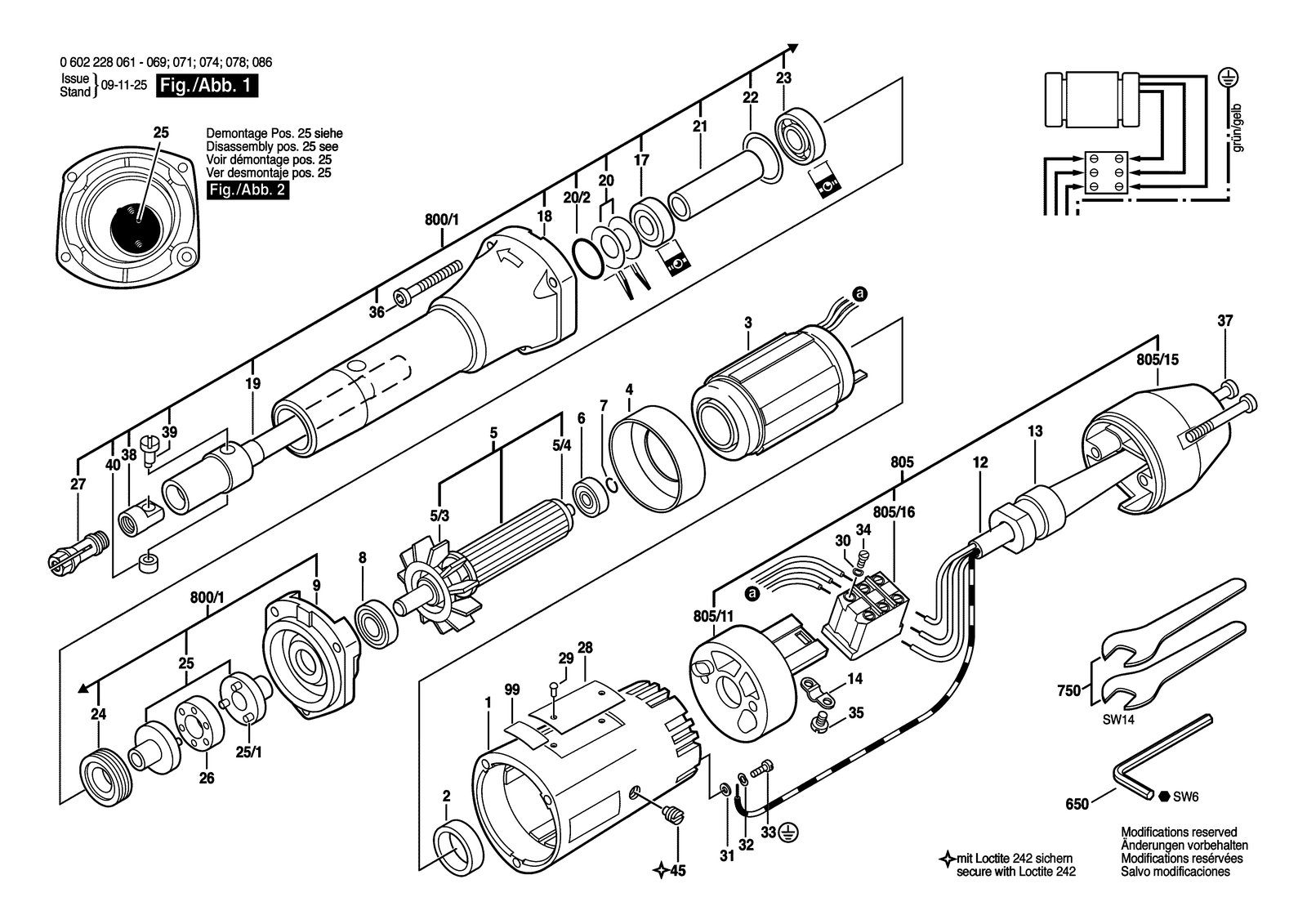

All parts of Bosch 0602228061: 52 positions on 2 sheets
Bosch 0602228061 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605102085 | Motor Housing |
| 12 | 3604462052 | Pvc-Insulated Cable |
| 13 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 14 | 1601302014 | Fastening Clamp |
| 17 | 1900905007 | Groove ball bearing 609-ZY DIN 625 |
| 18 | 1605806316 | Spindle Bearing |
| 19 | 1603124098 | Grinding Spindle |
| 2 | 1604229205 | Stator 42V/300HZ |
| 20 | 1600550007 | Disc Spring |
| 20/2 | 1600210029 | O-Ring 19,0X3,0 MM |
| 21 | 1600700018 | Guide Sleeve |
| 22 | 1600101015 | Shim washer |
| 23 | 1900905025 | Ball Bearing 9X26X8 |
| 24 | 1603344053 | Threaded Ring |
| 25 | 1600320028 | Carrier |
| 25/1 | 2917500095 | Straight Pin 4 H 8X12 DIN 7 |
| 26 | 1606442000 | Carrier |
| 27 | 1608570062 | Collet Ø 1/4" |
| 27 | 2608570016 | Collet |
| 28 | 3601106053 | Nameplate |
| 29 | 3603133000 | Grooved Nail |
| 3 | 1604229200 | Stator 265V/200HZ, 200V/150HZ |
| 3 | 1604229201 | Stator 200V/300HZ,135V/200HZ |
| 3 | 1604229202 | Stator 72V/200HZ,110V/300HZ |
| 3 | 1604229203 | Stator 72V/300HZ |
| 3 | 1604229204 | Stator 220V/360HZ |
| 30 | 2916060003 | Spring Washer A 3 DIN 137-ST |
| 31 | 2916010409 | Plain Washer DIN 46 255-DPG 9 |
| 32 | 3600150006 | Spring Washer Ø4,2 MM |
| 33 | 2910110116 | Pan head screw DIN 85 AM 4X6-MS |
| 35 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 36 | 2910141136 | Hex Socket Head Cap Screw DIN 912-M 4X35-8.8 |
| 37 | 2910141140 | Hex Socket Head Cap Screw DIN 912-M 4X45-8.8 |
| 38 | 1600363001 | Threaded Bushing |
| 39 | 1603180004 | Eccentric Bolt |
| 4 | 1600502005 | Air-Deflector Ring |
| 40 | 1600202019 | Backup ring |
| 45 | 3603402000 | Set screw |
| 5 | 3604080003 | Rotor Without Winding |
| 5/4 | 3600202008 | Intermediate Ring |
| 6 | 1900900232 | Groove ball bearing 5X16X5 |
| 650 | 1607950001 | Offset Screwdriver |
| 7 | 2916600002 | Retaining ring 5 DIN 9045 |
| 750 | 1907950508 | Single-Head Eng. Wrench SW 14 |
| 8 | 1900905017 | Groove ball bearing 9X24X7 |
| 800/1 | 1605806921 | Gear Housing |
| 805 | 3607031145 | Handle |
| 805/11 | 3600099004 | Connection Housing |
| 805/15 | 3605500074 | Sealing cap |
| 805/16 | 3607200001 | Switch |
| 9 | 3605820058 | Bearing Flange |
| 99 | 3601119236 | Reference Plate |
