Bosch 0602219001

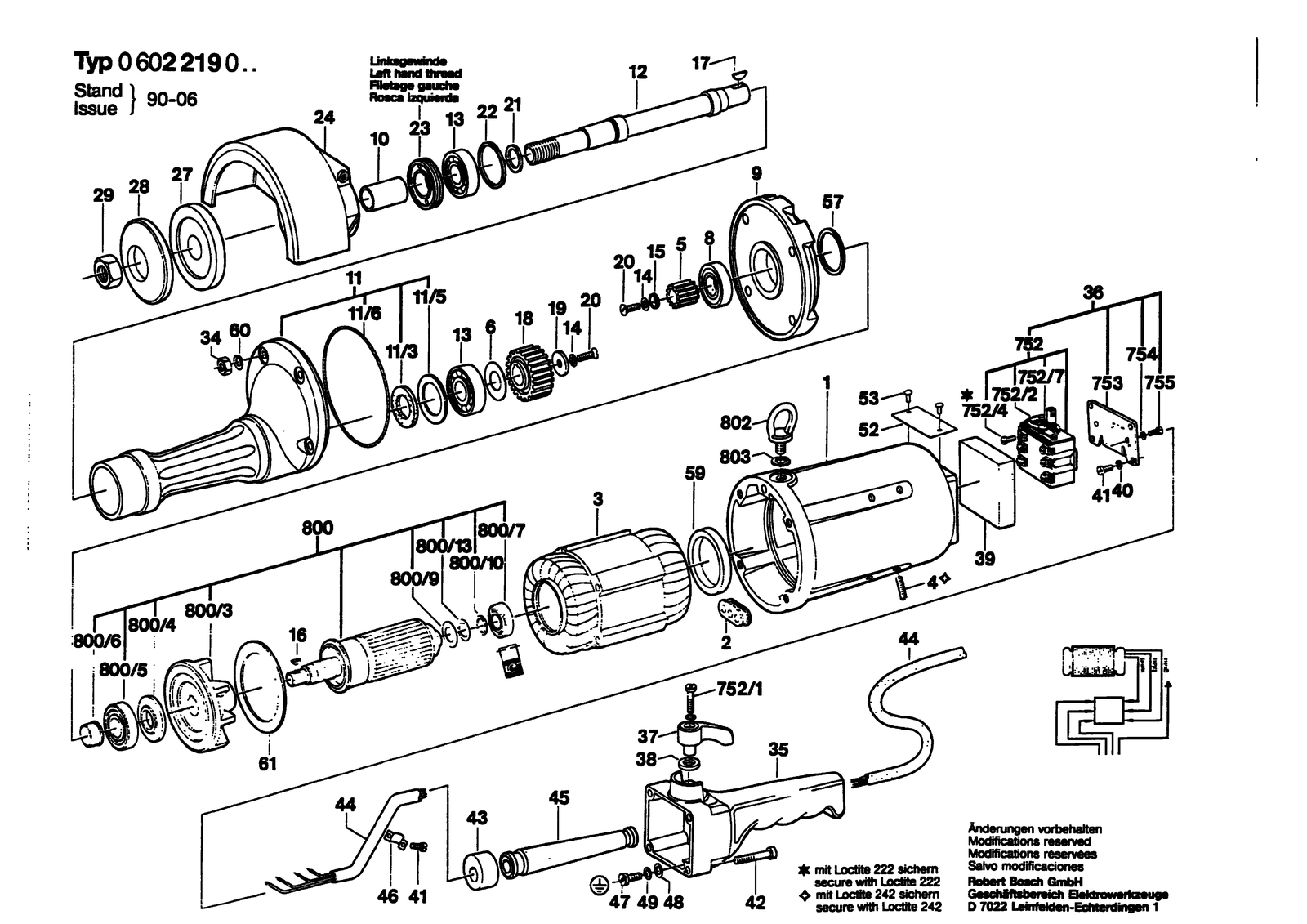

Bosch 0602219001 straight grinders: exploded parts diagram, 1 sheet, 72 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602219001: 72 positions on 1 sheet
Bosch 0602219001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605102035 | Motor Housing |
| 10 | 1600300022 | Centering Sleeve |
| 11 | 1605806052 | Spindle Bearing |
| 11/3 | 1600108044 | Sealing disk |
| 11/5 | 1600103017 | Support Disc |
| 11/6 | 1900210166 | O-Ring 80X3 MM |
| 12 | 1603052004 | Grinding Spindle |
| 13 | 1900900306 | Groove ball bearing 6204-Y DIN 625 |
| 14 | 2916050006 | Toothed lock washer V 5,3 DIN 6797 |
| 15 | 1600147003 | Plain Washer |
| 16 | 1900023005 | Woodruff Key DIN 6888 3X5 ST60-2 |
| 17 | 1900023008 | Woodruff Key DIN 6888-4X6,5-ST60-2K |
| 18 | 1606320006 | Cylindrical Gear Z=32 |
| 19 | 1600147000 | Plain Washer |
| 2 | 1600306000 | Grommet |
| 20 | 2910501157 | Countersunk-Head Screw DIN 63-AM5X15-8.8 |
| 21 | 1600202009 | Spacer Ring |
| 22 | 1600201000 | Spacer Ring |
| 23 | 1603344005 | Threaded Ring |
| 24 | 1605510017 | Protective Cover Ø 175 MM (5") |
| 27 | 1605703008 | Clamping-Flange Ø 85 MM |
| 28 | 1600114007 | Conical Spring Washer |
| 29 | 1603300001 | Hex Nut |
| 3 | 1604229068 | Stator 265V/300HZ |
| 34 | 2915011009 | Hex Nut DIN 934-M8-8-A |
| 35 | 1605132024 | Handle |
| 36 | 1607200017 | On-Off Switch |
| 37 | 1602026015 | Control Lever |
| 38 | 1600108024 | Sealing disk Ø18XØ10X4 MM |
| 39 | 1600009000 | Sealing Plate |
| 4 | 1603402003 | Set screw |
| 40 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 41 | 2910021122 | Socket head cap screw DIN 84-AM4X12-8.8 |
| 42 | 2910141209 | Hex Socket Head Cap Screw DIN 912-M6X40-8.8 |
| 43 | 1600113003 | Sealing Plate |
| 44 | 3604462043 | Elec. Cable W/Connection |
| 45 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 46 | 1601302013 | Fastening Clamp |
| 47 | 2910110118 | Pan head screw DIN 85-AM4X8-MS |
| 48 | 2916010409 | Plain Washer DIN 46 255-DPG 9 |
| 49 | 1600150006 | Spring Washer DIN 137-A4 |
| 5 | 1606320007 | Cylindrical Gear Z=18 |
| 52 | 3601106053 | Nameplate |
| 53 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 57 | 1600102638 | Shim Thick 0,05 MM |
| 57 | 1600102639 | Shim Thick 0,1 MM |
| 57 | 1600102640 | Shim Thick 0,15 MM |
| 59 | 1600209005 | Seal Ring |
| 6 | 1600101607 | Shim |
| 60 | 2916680009 | Spring Lock Washer B 8 DIN 127 |
| 61 | 1600151001 | Air-Deflector Ring |
| 752 | 1607200006 | On-Off Switch |
| 752/1 | 2910001052 | Socket head cap screw DIN 84-AM3X10-4.8 |
| 752/2 | 1604650009 | Extension Spring |
| 752/4 | 2910091118 | Pan head screw DIN 85-AM4X8-4.8 |
| 752/7 | 1603200007 | Detent Roller |
| 753 | 3601023015 | Fixing plate |
| 754 | 2916690003 | Spring Lock Washer DIN 128-A4-FST |
| 755 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 8 | 1600281002 | Rotary shaft lip seal |
| 800 | 1604081000 | Rotor Without Winding |
| 800/10 | 1100101600 | Shim |
| 800/13 | 1200101606 | Shim Thick 0,10 MM |
| 800/3 | 1606610013 | Fan |
| 800/4 | 1600120004 | Cover Disc |
| 800/5 | 1900900117 | Magneto Ball Bearing E20T DIN 615 |
| 800/6 | 1600220009 | Intermediate Ring |
| 800/7 | 1900900111 | Magneto Ball Bearing E15T DIN 615 |
| 800/9 | 1610101603 | Shim Thick 0,2 MM |
| 802 | 2912521237 | Lifting Eye Bolt DIN 580-M 8 |
| 803 | 2916680011 | Spring Lock Washer DIN 127-B12 |
| 9 | 1605820026 | Bearing Flange |
