Bosch 0602211001

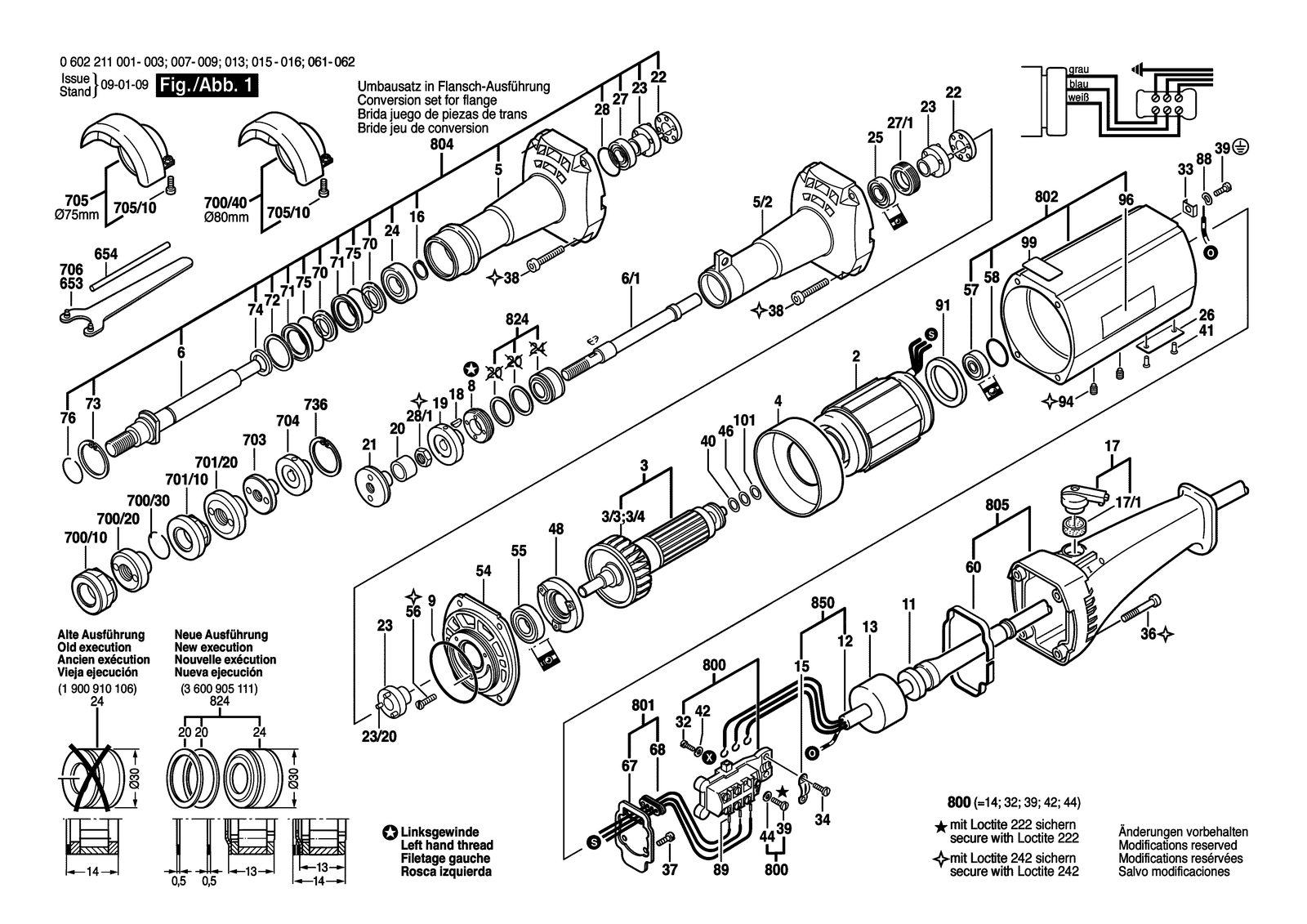

Bosch 0602211001 hf straight grinder: exploded parts diagram, 1 sheet, 85 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602211001: 85 positions on 1 sheet
Bosch 0602211001 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 101 | 1600100601 | Shim Thick 0,05 MM |
| 11 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 12 | 3604462037 | Elec. Cable W/Connection |
| 12 | 3604462038 | Elec. Cable W/Connection |
| 13 | 1600113003 | Sealing Plate |
| 15 | 1601303003 | Fastening Clamp |
| 16 | 2916650008 | Spring retaining ring DIN 471 17X1 MM |
| 17 | 1602026030 | Control Lever |
| 17/1 | 1600205008 | Felt Washer |
| 18 | 1900023003 | Woodruff Key |
| 19 | 1600240000 | Clamping-Flange |
| 2 | 1604229098 | Stator 265V/200HZ,230V/180HZ |
| 2 | 1604229099 | Stator 200V/300HZ,135V/200HZ |
| 2 | 1604229100 | Stator 72V/200HZ |
| 20 | 1600102013 | Plain Washer |
| 21 | 2608570009 | Collet Ø 8, M 8, SW 14 |
| 22 | 1606442000 | Carrier |
| 23 | 1600320026 | Carrier |
| 23/20 | 2917500095 | Straight Pin 4 H 8X12 DIN 7 |
| 24 | 3600905058 | Groove ball bearing |
| 25 | 1900905121 | Groove ball bearing 12X28X8 |
| 26 | 3601106053 | Nameplate |
| 27 | 3608870093 | Groove ball bearing |
| 27/1 | 1603344024 | Threaded Ring M30X1 |
| 28 | 1900210127 | O-Ring 28X2 MM |
| 28/1 | 2915051108 | Hex Nut DIN 439-BM10-04 |
| 3 | 1604080032 | Rotor Without Winding |
| 32 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 33 | 3601321001 | Clamping Saddle |
| 34 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 36 | 2910141166 | Hex Socket Head Cap Screw DIN 912-M 5X30-8.8 |
| 37 | 3603450008 | Socket head cap screw |
| 38 | 2910141164 | Hex Socket Head Cap Screw DIN 912-M 5X25-8.8 |
| 39 | 2910110120 | Pan head screw DIN 85-AM4X10-MS |
| 4 | 1600209002 | Air-Deflector Ring |
| 40 | 1600100632 | Shim Thick 0,2 MM |
| 41 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 42 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 44 | 3600150006 | Spring Washer Ø4,2 MM |
| 46 | 1420100023 | Shim Thick 0,10 MM |
| 48 | 1600501019 | Bearing cover |
| 5 | 3605806142 | Spindle Bearing |
| 5/2 | 3605806112 | Spindle Bearing |
| 54 | 3605820064 | Bearing Flange |
| 55 | 1900905234 | Groove ball bearing 15X35X11 |
| 56 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 57 | 3600905147 | Groove ball bearing 7X22X7 |
| 58 | 1900210321 | O-Ring 22X2 MM |
| 6 | 3603050012 | Grinding Spindle |
| 6/1 | 1603050014 | Grinding Spindle |
| 60 | 1601014000 | Sealing Cord |
| 653 | 1607950007 | Pin-Type Face-Wrench SW6-HL8-N6 |
| 67 | 1602388006 | Sealing Plate |
| 68 | 1600306001 | Grommet |
| 70 | 3600222004 | Protective Ring |
| 700/10 | 3605703028 | Clamping-Flange 80 MM Z,80 M/s |
| 700/20 | 3605703074 | Clamping Ring |
| 700/30 | 2916609112 | Retaining ring 24X2 DIN9045-24 |
| 700/40 | 3605510033 | Protective Cover Ø 80 MM |
| 701/10 | 3605703069 | Clamping-Flange |
| 701/20 | 3605703065 | Clamping Ring |
| 705 | 3605510033 | Protective Cover Ø 80 MM |
| 705/10 | 2910141244 | Hex Socket Head Cap Screw DIN 912-M8X25-8.8 |
| 71 | 3600200057 | Spacer Ring |
| 72 | 3600150019 | Shim |
| 73 | 2916669114 | Spring retaining ring DIN472-35X1,5 |
| 736 | 2916669114 | Spring retaining ring DIN472-35X1,5 |
| 74 | 3600202015 | Spacer Ring |
| 75 | 3600210057 | O-Ring 32,0X1,5 MM |
| 76 | 2916609112 | Retaining ring 24X2 DIN9045-24 |
| 8 | 1600362018 | Threaded Bushing Lefthand Threads M 32X1 |
| 800 | 1607000036 | Switch Kit |
| 801 | 1602388007 | Sealing Plate |
| 802 | 3605102079 | Motor Housing |
| 804 | 3607031220 | Assembly Of Service Parts |
| 805 | 3605132048 | Handle Dark Blue |
| 824 | 3600905111 | Cyl. Roller Bearing |
| 850 | 3607030236 | Elec. Cable W/Connection |
| 88 | 3600150006 | Spring Washer Ø4,2 MM |
| 89 | 3604477008 | End Splice |
| 9 | 1900210146 | O-Ring 45X3MM |
| 91 | 1600209004 | Seal Ring |
| 94 | 1603402002 | Set screw |
| 96 | 3601110047 | Manufacturer's nameplate |
| 99 | 3601119236 | Reference Plate |
