Bosch 0602209001

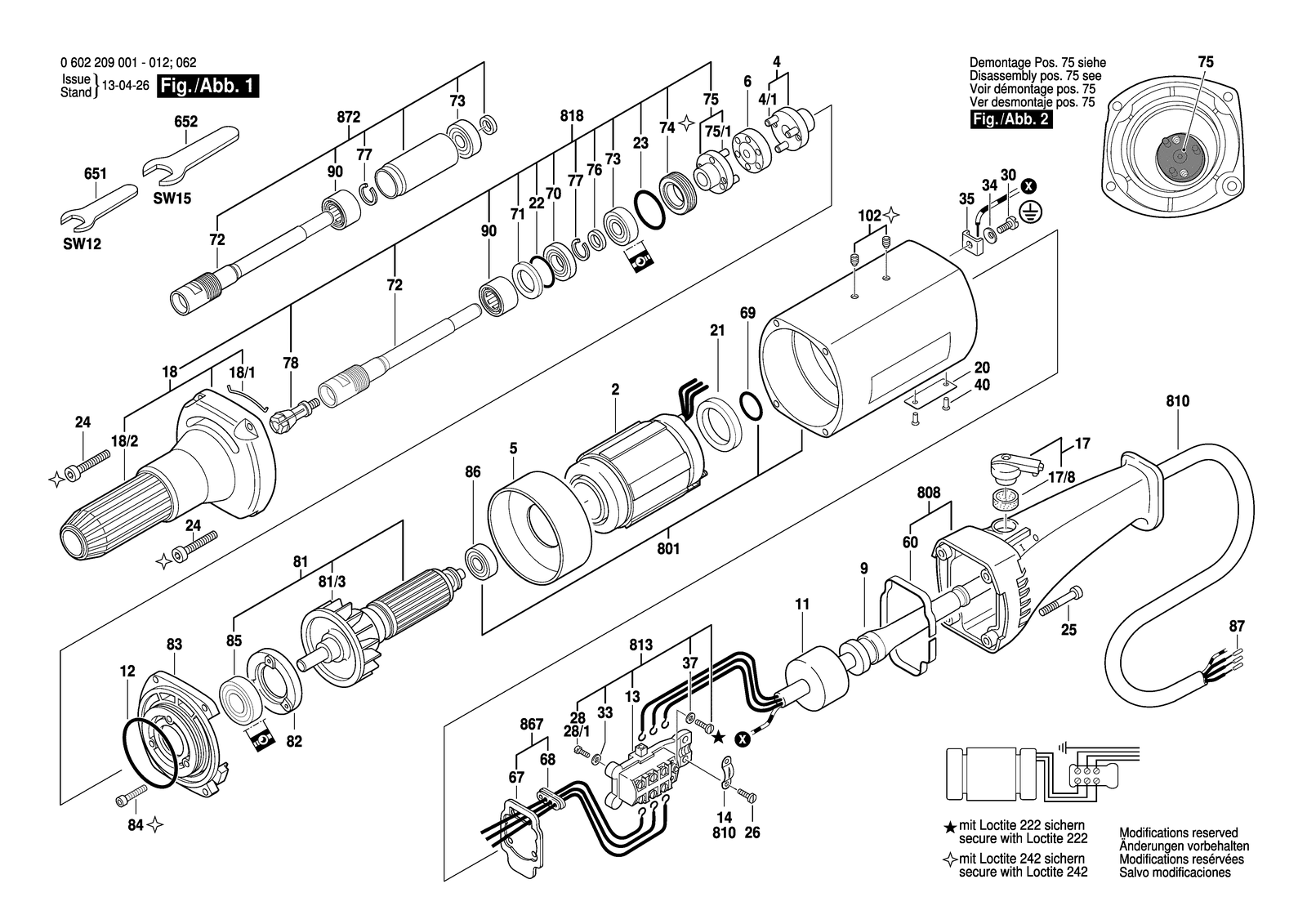

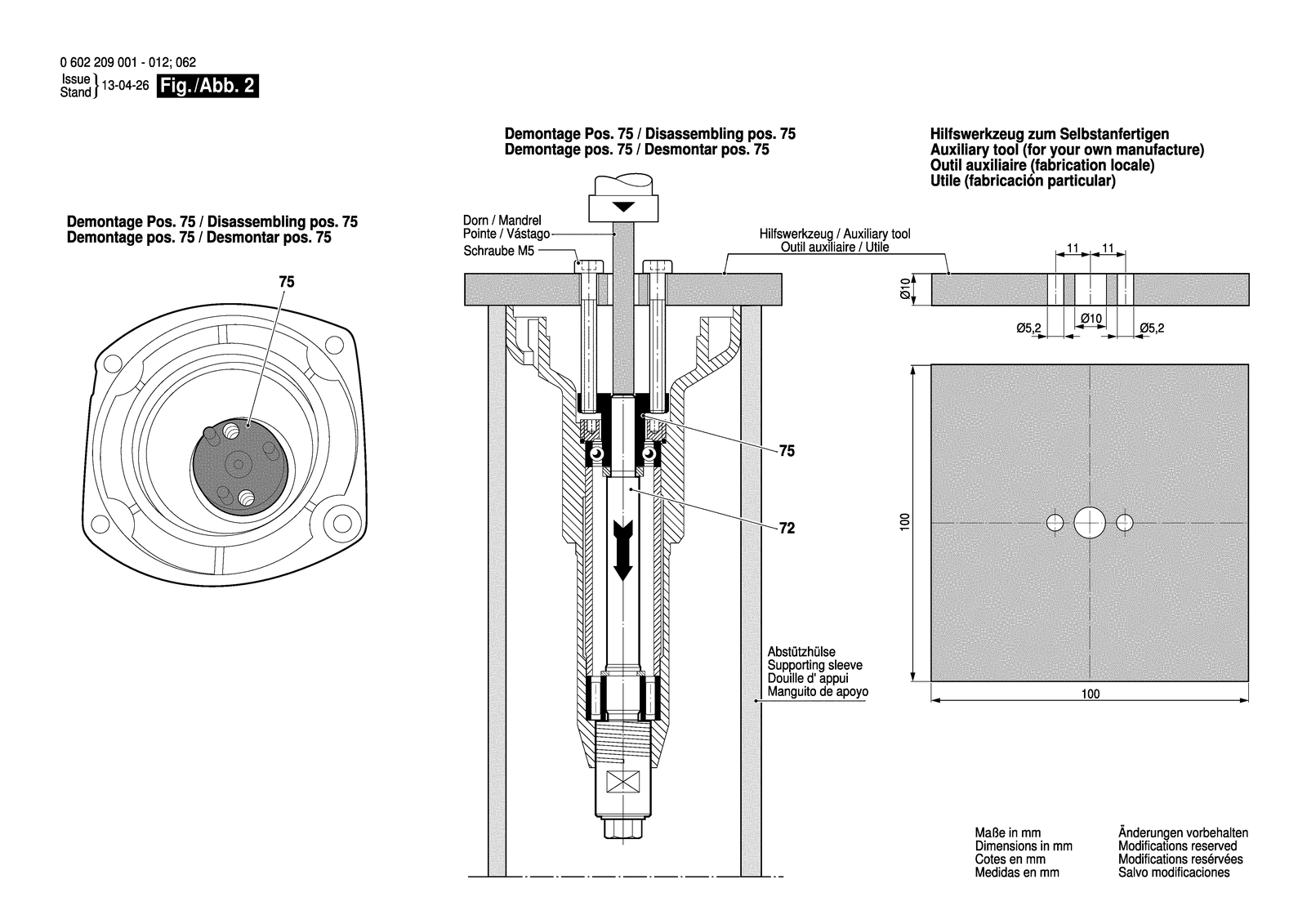

Bosch 0602209001 straight grinders: exploded parts diagram, 2 sheets, 68 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0602209001: 68 positions on 2 sheets
Bosch 0602209001 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 102 | 1603402002 | Set screw |
| 11 | 1600113003 | Sealing Plate |
| 12 | 1900210146 | O-Ring 45X3MM |
| 13 | 1607200020 | Switch |
| 14 | 1601303003 | Fastening Clamp |
| 17 | 1602026030 | Control Lever |
| 17/8 | 1600205008 | Felt Washer |
| 18 | 3605806109 | Spindle Housing |
| 18/1 | 1600703014 | Seal Ø3X53 MM |
| 18/2 | 3600712004 | Shrinkable Tube |
| 2 | 1604229088 | Stator 265V/200HZ |
| 2 | 1604229089 | Stator 200V/300HZ |
| 2 | 1604229090 | Stator 72V/200HZ,110V/300HZ |
| 2 | 1604229091 | Stator 72V/300HZ |
| 2 | 1604229094 | Stator 220V/360HZ |
| 2 | 1604229095 | Stator 42V/300HZ |
| 20 | 3601106053 | Nameplate |
| 21 | 1600209006 | Seal Ring |
| 22 | 1900210118 | O-Ring 20X2 MM |
| 23 | 1900210124 | O-Ring 25X2 MM |
| 24 | 2910141164 | Hex Socket Head Cap Screw DIN 912-M 5X25-8.8 |
| 25 | 3603435003 | Thread-forming tap. Screw |
| 26 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 28 | 2910211006 | Tapping Screw DIN 7971-BZ2,9X13 |
| 28/1 | 2910021050 | Socket head cap screw DIN 84-AM3X8-8.8 |
| 30 | 2914461403 | Thread-forming tap. Screw |
| 33 | 2916011005 | Plain Washer DIN 433-3,2-ST 50 |
| 34 | 3600150006 | Spring Washer Ø4,2 MM |
| 35 | 3601321001 | Clamping Saddle |
| 37 | 3600150006 | Spring Washer Ø4,2 MM |
| 4 | 1600320028 | Carrier |
| 4/1 | 2917500095 | Straight Pin 4 H 8X12 DIN 7 |
| 40 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 5 | 1600209003 | Air-Deflector Ring |
| 6 | 1606442000 | Carrier |
| 60 | 1601014000 | Sealing Cord |
| 651 | 1907950506 | Single-Head Eng. Wrench DIN 894 SW 12 |
| 652 | 1907950509 | Single-Head Eng. Wrench DIN 894 SW 15 |
| 67 | 1602388006 | Sealing Plate |
| 68 | 1600306001 | Grommet |
| 69 | 3600210016 | O-Ring 22,0X1,5 MM |
| 70 | 3608871307 | Groove ball bearing |
| 71 | 3600120015 | Spacer Ring |
| 72 | 1603123011 | Grinding Spindle |
| 73 | 3600905063 | Groove ball bearing |
| 74 | 3603344059 | Threaded Ring |
| 75 | 1600320028 | Carrier |
| 75/1 | 2917500095 | Straight Pin 4 H 8X12 DIN 7 |
| 76 | 1600202016 | Spacer Ring |
| 77 | 2916650903 | Spring retaining ring DIN 471-12X1-FSTM |
| 78 | 1608570025 | Collet Ø6 MM |
| 801 | 3605102040 | Motor Housing |
| 808 | 3605132048 | Handle Dark Blue |
| 81 | 3604080055 | Rotor Without Winding |
| 81/3 | 3606610010 | Fan |
| 810 | 3607030236 | Elec. Cable W/Connection |
| 813 | 1607000036 | Switch Kit |
| 818 | 1605806202 | Spindle Bearing |
| 82 | 1600501025 | Conical Spring Washer |
| 83 | 3605820065 | Bearing Flange |
| 84 | 2910011128 | Socket head cap screw DIN 84-AM4X18-5.8 |
| 85 | 1900905121 | Groove ball bearing 12X28X8 |
| 86 | 1610900025 | Groove ball bearing 7X22X7 |
| 867 | 1602388007 | Sealing Plate |
| 87 | 3604477008 | End Splice |
| 872 | 3603123017 | Grinding Spindle |
| 9 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 90 | 1600910002 | Needle-Roller Bearing |
