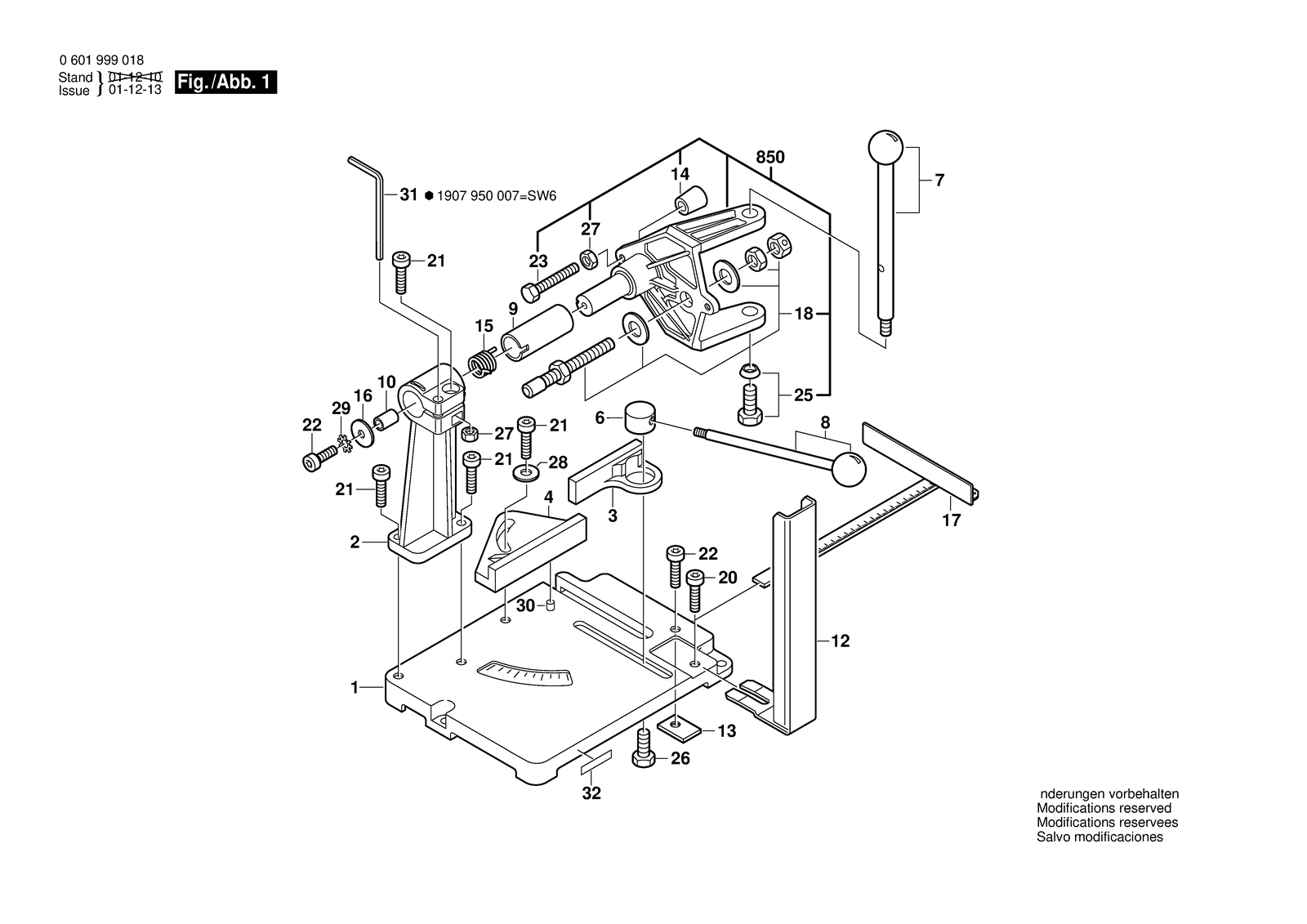

Bosch 0601999018 cutting stand: exploded parts diagram, 1 sheet, 29 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601999018: 29 positions on 1 sheet
Bosch 0601999018 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2609200267 | Base Plate |
| 10 | 2609200263 | Pipe |
| 12 | 2609200264 | Protective Shield |
| 13 | 2609200265 | Clamping Piece |
| 14 | 2609200266 | Protective Cap |
| 15 | 1609201517 | Torsion Spring |
| 16 | 1600100013 | Plain Washer Thick 2,5 MM |
| 17 | 2608190002 | Edge Guide |
| 18 | 2609201086 | Straining Screw |
| 2 | 2609200259 | Column |
| 20 | 2910141238 | Hex Socket Head Cap Screw DIN 912-M8X16-8.8 |
| 21 | 2910141242 | Hex Socket Head Cap Screw DIN 912-M8X20-8.8 |
| 22 | 2910141246 | Hex Socket Head Cap Screw DIN 912-M8X30-8.8 |
| 23 | 2911061254 | Hex Screw DIN 933-M8X50-8.8 |
| 25 | 1609390219 | Hex Screw |
| 26 | 2911061388 | Hex Screw M 14X25 DIN 933-8.8 |
| 27 | 2915011009 | Hex Nut DIN 934-M8-8-A |
| 28 | 2916012885 | Plain Washer DIN 9021-A8,4-ST |
| 29 | 2916030020 | Toothed lock washer DIN 6797-A8,4-FST |
| 3 | 1609201520 | Clamping jaws |
| 30 | 2917580174 | Half-Length-Tpr.Grvd. Pin DIN 1472-8X20-ST |
| 31 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 32 | 2601110601 | Manufacturer's nameplate |
| 4 | 1609201519 | Clamping jaws |
| 6 | 2609200261 | Eccentric |
| 7 | 1609201518 | Swivelling Lever |
| 8 | 1609201522 | Tensioning Lever |
| 850 | 2609201087 | Modification Set 230V |
| 9 | 2609200262 | Guide Bushing |
