Bosch 0601999016

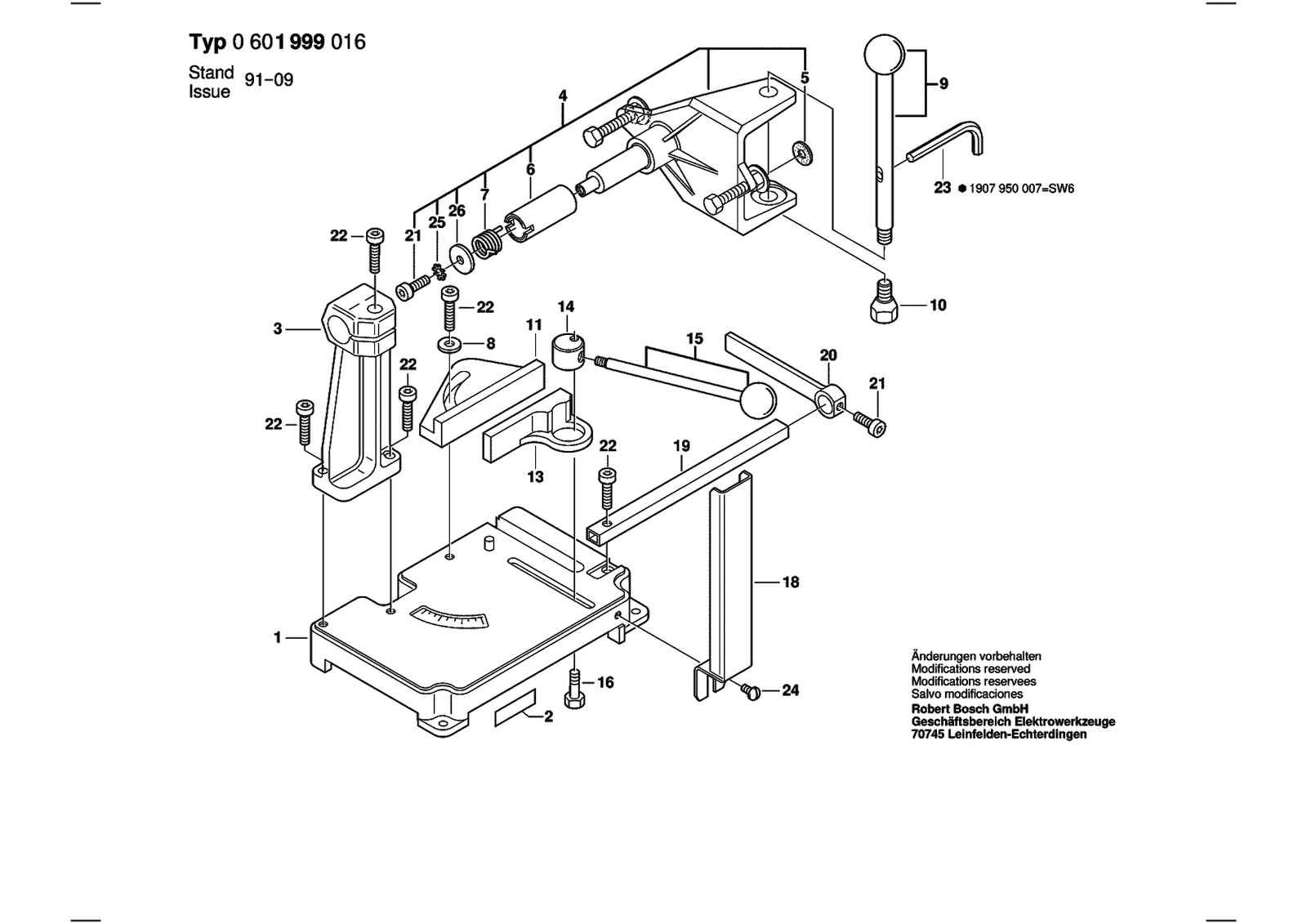

Bosch 0601999016 cutting stand: exploded parts diagram, 1 sheet, 24 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601999016: 24 positions on 1 sheet
Bosch 0601999016 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609202421 | Base Plate |
| 10 | 1609390219 | Hex Screw |
| 11 | 1609201519 | Clamping jaws |
| 13 | 1609201520 | Clamping jaws |
| 14 | 1609202424 | Mounting piece |
| 15 | 1609202425 | Tensioning Lever |
| 16 | 1609202426 | Hex Screw |
| 18 | 1609201524 | Protective Shield |
| 19 | 1609201525 | Guide Rod |
| 2 | 2601110601 | Manufacturer's nameplate |
| 20 | 1609201526 | End stop |
| 21 | 2910141238 | Hex Socket Head Cap Screw DIN 912-M8X16-8.8 |
| 22 | 2910141244 | Hex Socket Head Cap Screw DIN 912-M8X25-8.8 |
| 23 | 1907950007 | Offset Screwdriver DIN 911;SW6 |
| 24 | 1609202449 | Pan head screw |
| 25 | 1609202553 | Toothed lock washer |
| 26 | 1600100013 | Plain Washer Thick 2,5 MM |
| 3 | 1609201513 | Bearing Pedestal |
| 4 | 2609200260 | Drive-Machine Holder |
| 5 | 1609202447 | Rubber Disc |
| 6 | 1609202423 | Bushing |
| 7 | 1609201517 | Torsion Spring |
| 8 | 1609202448 | Plain Washer |
| 9 | 1609201518 | Swivelling Lever |
