Bosch 0601582003 jig saw: exploded parts diagram, 1 sheet, 119 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601582003: 119 positions on 1 sheet

Bosch 0601582003 parts list (1 sheet)

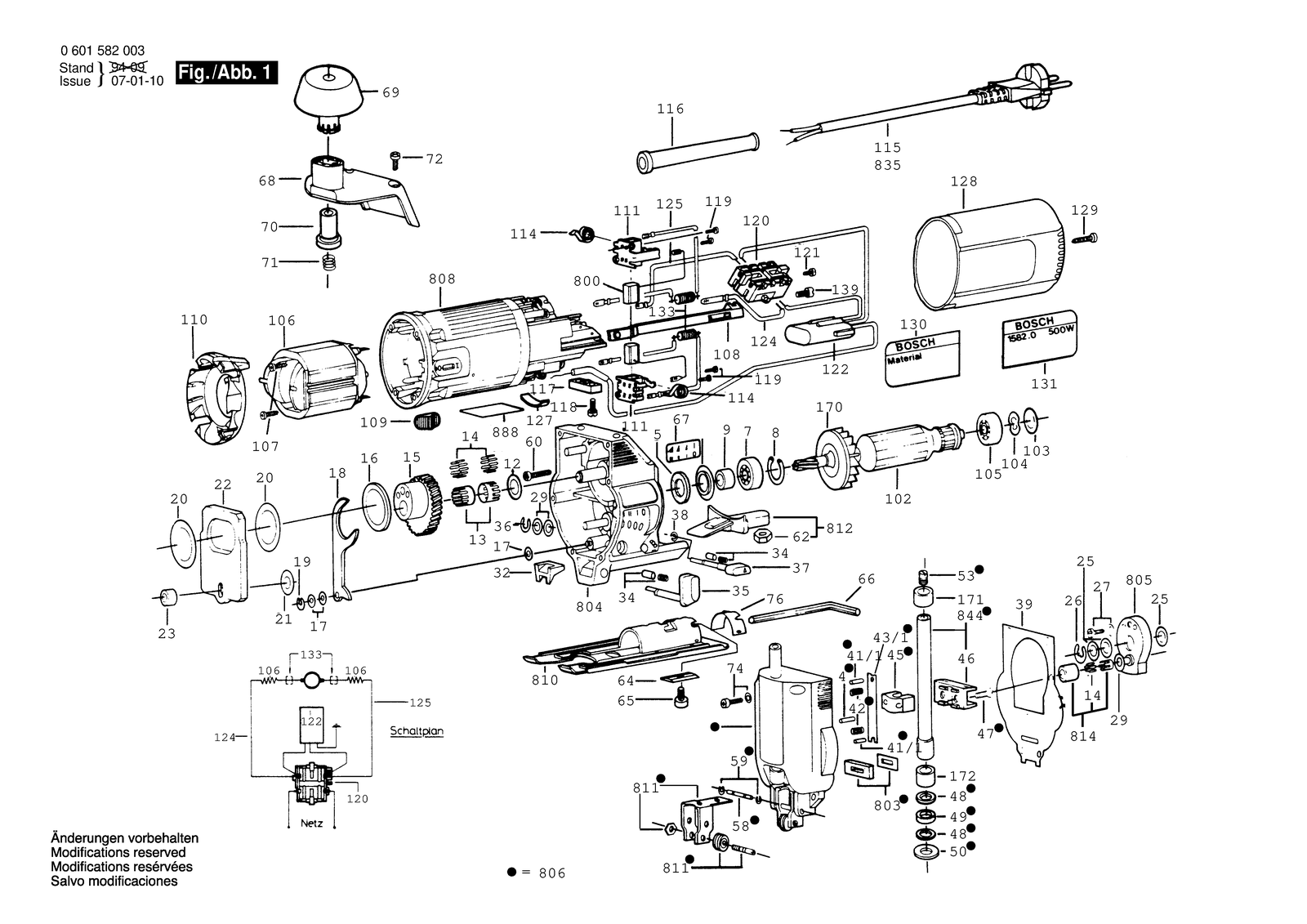

Bosch 0601582003 parts diagram, sheet 1
No.Part numberPart name
1022604010576Armature 100V
1022604010577Armature 110-115V
1022604010578Armature 230-240V
1032600101020Shim 0,5 MM
1032600101022Shim 0,2 MM
1032600101027Shim washer 0,3 MM
1042600150004Shim
1051900905018Ball Bearing 7X22X7
1062604220427Field 100V
1062604220445Field 220-230V
1062604220462Field 240V
1062604220470Field 110-115V
1072603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
1082602319005Adjusting Slide Blue
1092602026015Switch Handle Black
1102601328045Cover Disc
1111600A003G4Brush Holder
1112601323022Brush Holder
1142604652009Spiral Spring
1151604460427Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F
1152604460074Power supply cord AUS 2,6M 2 X 0,75MM Pvc
1152604460095Power supply cord J 2,5M 2 X 0,75MM Pvc
1152604460109Parts Set
1152604460205Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F
1152604460277Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
1162600703011Grommet Ø8,3-Ø9,4X95 MM
1162600703012Grommet Ø6,5-Ø6,9X95 MM
1162600703013Grommet Ø7,6-Ø8,2X95 MM
1172601035001Cable Clip
1182910611019Tapping Screw DIN 7981-ST3,9X16-C-H
1192603490017Torx Oval-Head Screw 3X10
122600101616Shim 0,5 MM
1202607200674Switch
1212603410001Socket head cap screw M3X6,5-4.8
1222607329104Suppression Filter
1242604448044Connecting Cable White L=86MM
1252604448056Connecting Cable White L=136MM
1271600026000Intermediate Piece Blue
1282600508036Housing Cover Blue
1292910601321Tapping Screw DIN 7982-ST3,9X22C-H
132600913036Needle-Roller Cage
1302601110237Sticker
1312601110321Sticker
1332604465106Suppressor Box
1392910611006Tapping Screw DIN 7981-ST2,9X13-C-H
142603201037Needle Roller 1,5X5,8 MM
151619P02581Eccentric Cog Wheel
162600102653Shim 1,0 MM
172600100515Shim 0,3 MM
172600100516Shim 0,5 MM
1702606610049Fan
1712600301046Sintered-Metal Bushing
1722600301045Bushing
182601923004Fork Lever
192916080007Locking washer DIN 6799-4-FST
202600102652Shim 0,5 MM
212600100625Shim 0,1 MM
212600100626Shim 0,2 MM
212600100627Shim 0,3 MM
212600100628Shim 0,5 MM
222601098003Counterweight
232600309009Spacer Sleeve
252600100575Shim 0,2 MM
252600100576Shim 0,3 MM
252600100577Shim 0,5 MM
262916080910Locking washer DIN 6799-7-FST
272603410049Thread-forming tap. Screw M4X12 MM
292600100568Shim 0,5 MM
292600100569Shim 1,0 MM
292600100607Shim 0,3 MM
322602305042Air Eliminator
342600590006Ratchet Cap
352602026036Rotary Knob Black
362916080908Locking washer 5 DIN 6799
372602026037Rotary Knob Black
382600116009Spring retaining ring
392601015050Seal
41903201042Needle Roller DIN 5402-A3X11,8-G2
41/12603410048Thread-forming tap. Screw M4X8
422604613000Compression Spring
43/11616B00224Guide Bracket
452602329011Clamping Saddle
462601321022Sliding Piece 31/35 MM
472603421040Countersunk-Head Screw DIN 7962-M3,5X8-10.9
482600112031Supporting Disc 0,5 MM
492600290017Seal Ring 0,5 MM
52600108077Felt Washer
502600101612Shim 0,5 MM
532603400000Clamp Screw
582603105029Bearing bolt
592916080906Locking washer DIN 6799-3,2
602603490024Torx Oval-Head Screw 4X25
622915011007Hex Nut DIN 934-M6-8-A
642601030019Profile Beading
652910141197Hex Socket Head Cap Screw DIN 912-M6X16-8.8
662610364015Hexagon Socket Screw Key 5 MM
682605702002Flanged Fitting
692603231002Handle Black
72600905021Groove ball bearing 9X24X7
702600421000Ratchet Sleeve
712604616001Compression Spring
722914501022Screw and washer assembly DIN 7985-M 5X10 MM-4,8
742603410049Thread-forming tap. Screw M4X12 MM
762601328044Scale Plate
82916660008Spring retaining ring DIN 472-24X1,2 MM
8002604320912Carbon-Brush Set
8032601015901Sealing Plate
8042605808915Gear Housing
8052601072901Eccentric Disc
8062605808914Gear Cover
8082605108904Motor Housing Blue
8102601016900Base Plate
8112601321901Roller Lever
8122605500900Fan Cover
8142600917900Needle bearing
8351607000385Power supply cord EU 2,6M 2 X 1,0 MM
8442600780913Lifting Rod
888160111A3H3Nameplate
92600400008Receptacle
