Bosch 0601581003

Bosch 0601581003 orbital jigsaw: exploded parts diagram, 1 sheet, 115 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch 0601581003: 115 positions on 1 sheet

Bosch 0601581003 parts list (1 sheet)

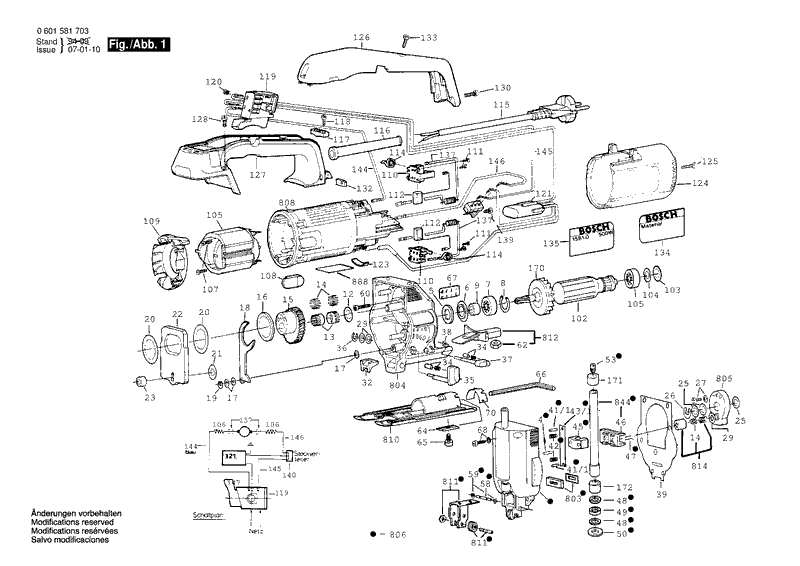

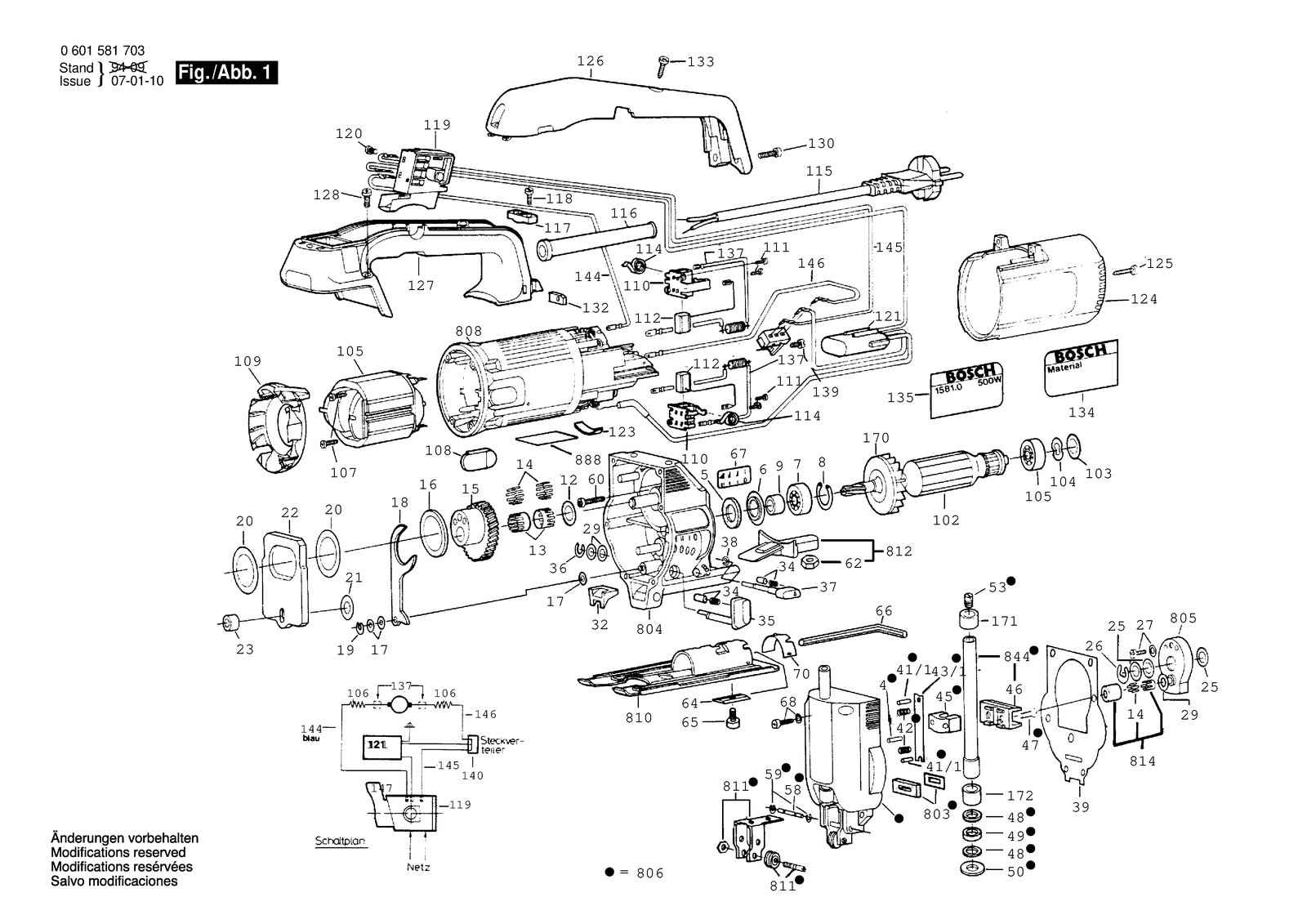

Bosch 0601581003 parts diagram, sheet 1
No.Part numberPart name
1022604010577Armature 110-115V
1022604010578Armature 230-240V
1032600101020Shim 0,5 MM
1032600101022Shim 0,2 MM
1032600101023Shim 0,3 MM
1042600150004Shim
1051900905018Ball Bearing 7X22X7
1062604220445Field 220-230V
1062604220462Field 240V
1062604220470Field 110-115V
1072603435015Cross Recessed-Head Screw DIN 7981-ST3,5X9,5-F
1082603231032Plug Blue
1092601328045Cover Disc
1101600A003G4Brush Holder
1102601323022Brush Holder
1112603490017Torx Oval-Head Screw 3X10
1142604652009Spiral Spring
1151604460427Power supply cord CH 2,65M 2 X 1,0MM H05 Vv-F
1152604460074Power supply cord AUS 2,6M 2 X 0,75MM Pvc
1152604460109Parts Set
1152604460205Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F
1152604460277Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
1162600703011Grommet Ø8,3-Ø9,4X95 MM
1162600703012Grommet Ø6,5-Ø6,9X95 MM
1162600703013Grommet Ø7,6-Ø8,2X95 MM
1172601035001Cable Clip
1182910211019Tapping Screw DIN 7971-ST3,9X16-F
1192607200260Switch
122600101616Shim 0,5 MM
1202603410001Socket head cap screw M3X6,5-4.8
1212607329105Suppression Filter
1231600026000Intermediate Piece Blue
1252910601321Tapping Screw DIN 7982-ST3,9X22C-H
1262602025040Strap-Shaped Handle
1272602025043Strap-Shaped Handle
1282603410054Thread-forming tap. Screw M 5X16
132600913036Needle-Roller Cage
1302914501021Screw and washer assembly M 4X20 MM
1322603320001Square Nut M4
1332603490024Torx Oval-Head Screw 4X25
1342601110237Sticker
1352601110319Sticker
1372604465106Suppressor Box
142603201037Needle Roller 1,5X5,8 MM
1402607001037Strap-Shaped Handle
1442604448012Connecting Cable Blue L = 278 MM
1452604448062Connecting Cable White L = 288 MM
151619P02581Eccentric Cog Wheel
162600102653Shim 1,0 MM
172600100515Shim 0,3 MM
172600100516Shim 0,5 MM
1702606610049Fan
1712600301046Sintered-Metal Bushing
1722600301045Bushing
182601923004Fork Lever
192916080007Locking washer DIN 6799-4-FST
202600102652Shim 0,5 MM
212600100625Shim 0,1 MM
212600100626Shim 0,2 MM
212600100627Shim 0,3 MM
212600100628Shim 0,5 MM
222601098003Counterweight
232600309009Spacer Sleeve
252600100575Shim 0,2 MM
252600100576Shim 0,3 MM
252600100577Shim 0,5 MM
262916080910Locking washer DIN 6799-7-FST
272603410049Thread-forming tap. Screw M4X12 MM
292600100568Shim 0,5 MM
292600100569Shim 1,0 MM
292600100607Shim 0,3 MM
322602305042Air Eliminator
342600590006Ratchet Cap
352602026036Rotary Knob Black
362916080908Locking washer 5 DIN 6799
372602026037Rotary Knob Black
382600116009Spring retaining ring
392601015050Seal
41903201042Needle Roller DIN 5402-A3X11,8-G2
41/12603410048Thread-forming tap. Screw M4X8
422604613000Compression Spring
43/11616B00224Guide Bracket
442600780913Lifting Rod
452602329011Clamping Saddle
462601321022Sliding Piece 31/35 MM
472603421040Countersunk-Head Screw DIN 7962-M3,5X8-10.9
482600112031Supporting Disc 0,5 MM
492600290017Seal Ring 0,5 MM
52600108077Felt Washer
502600101612Shim 0,5 MM
532603400000Clamp Screw
582603105029Bearing bolt
592916080906Locking washer DIN 6799-3,2
62600500002Cupped Washer
602603490024Torx Oval-Head Screw 4X25
622915011007Hex Nut DIN 934-M6-8-A
642601030019Profile Beading
652910141197Hex Socket Head Cap Screw DIN 912-M6X16-8.8
662610364015Hexagon Socket Screw Key 5 MM
682603410049Thread-forming tap. Screw M4X12 MM
72600905021Groove ball bearing 9X24X7
702601328044Scale Plate
82616660008Spring retaining ring
8032601015900Sealing Plate
8032601015901Sealing Plate
8042605808915Gear Housing
8052601072901Eccentric Disc
8062605808914Gear Cover
8082605108904Motor Housing Blue
8102601016900Base Plate
8112601321901Roller Lever
8122605500900Fan Cover
8142600917900Needle bearing
888160111A3H3Nameplate
92600400008Receptacle
